Bosch 8733980471 Mini Split 48000 Btu 4-zone System

Product Description

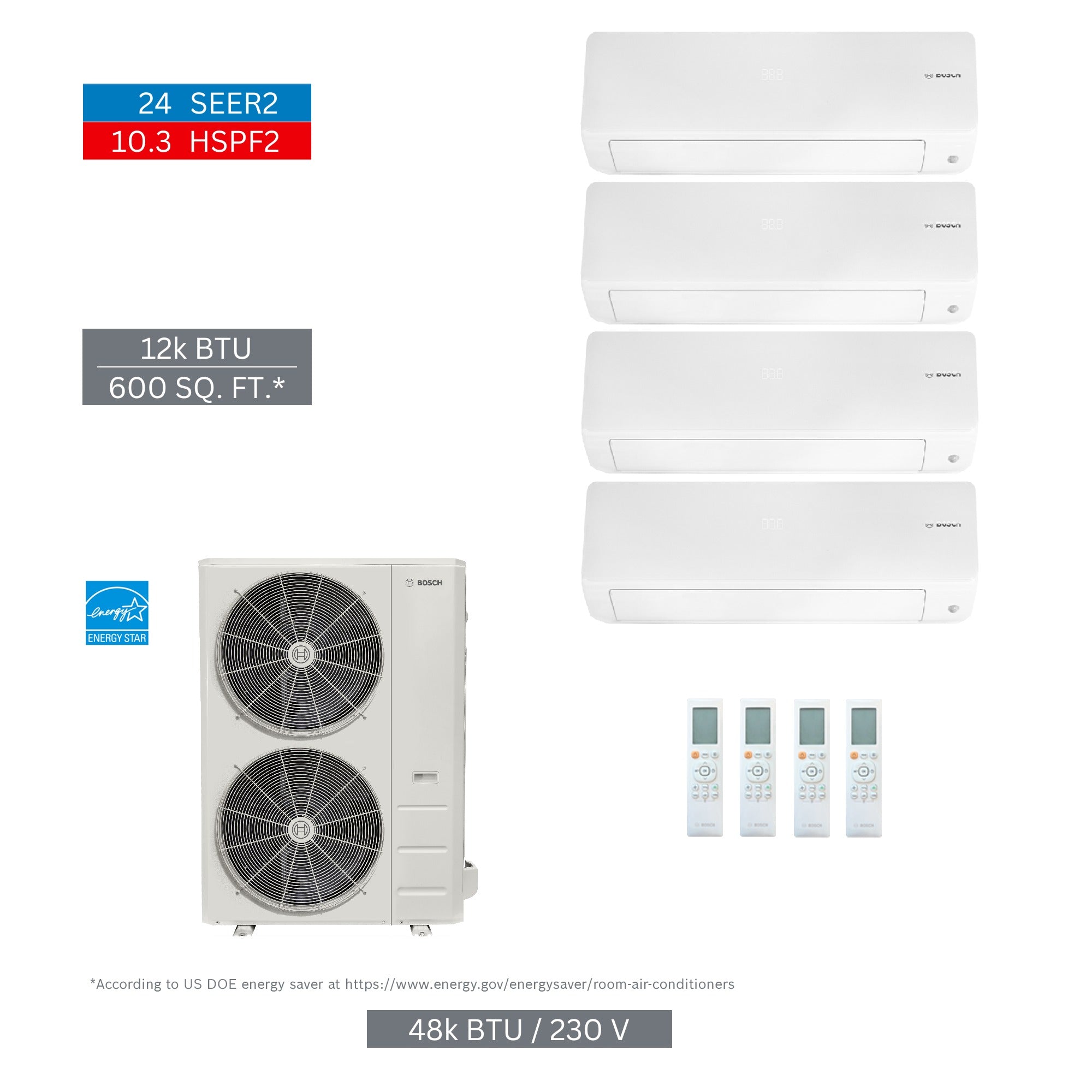

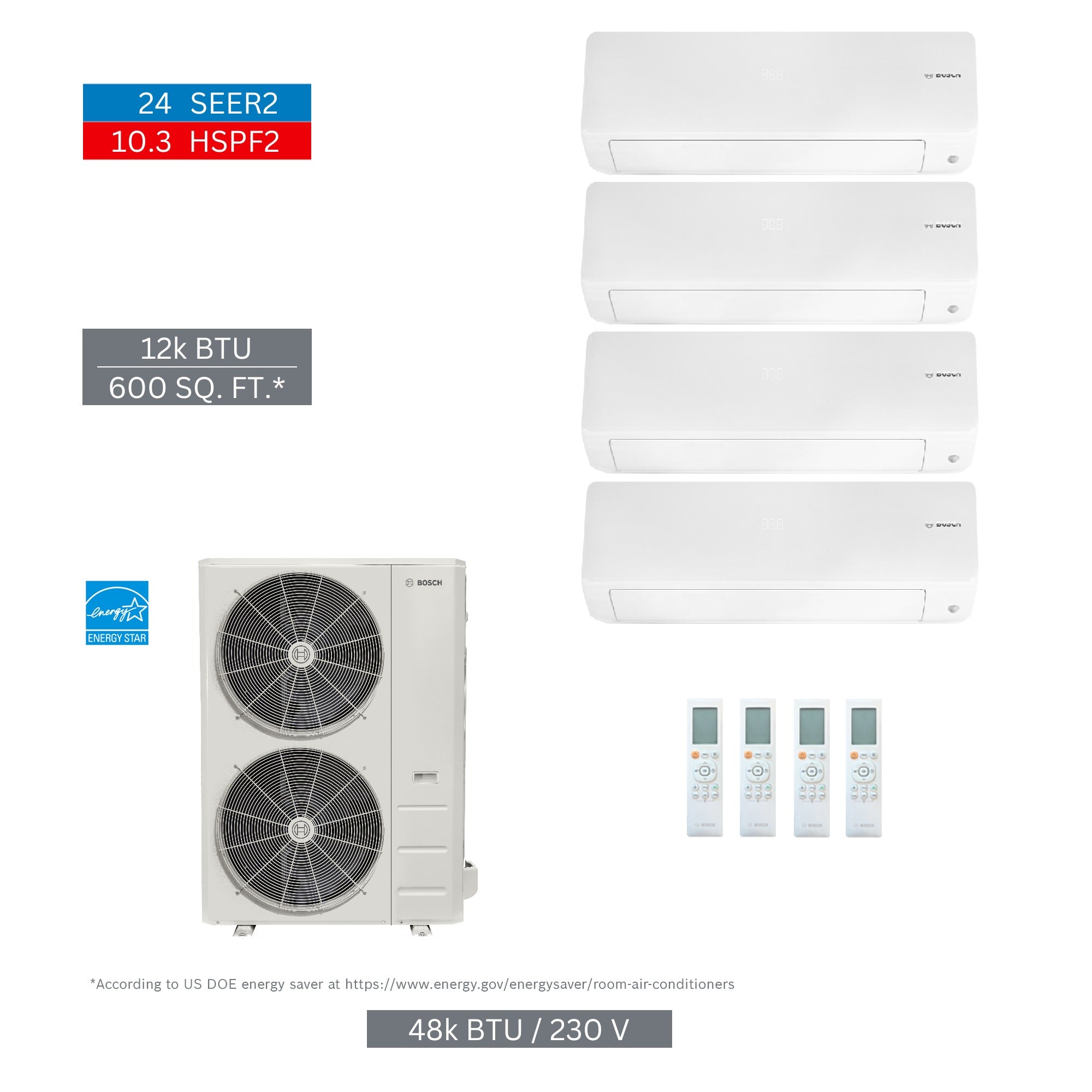

The BOSCH 8733980471 is a multi-zone mini split system kit rated at 48000 BTU, configured for four zones using four matched 12000 BTU indoor units and one outdoor condensing unit. This kit ships as a complete set of components ready for professional installation in residential or light-commercial applications. The package includes four indoor air handlers (part 8733962673) and one outdoor unit (part 8733962698), allowing a licensed HVAC technician to serve four independent comfort zones from a single outdoor condenser. The kit net weight is 244.93 pounds, with a gross shipping weight of 318.51 pounds.

This system is designed for multi-zone ductless applications where individual room or area temperature control is required. Typical installations include single-family homes with multiple bedrooms, open-plan additions, or small commercial spaces where running ductwork is impractical. Each of the four 12000 BTU indoor units operates as an independent zone, allowing occupants to set different temperatures in different areas. A licensed HVAC contractor with ductless mini split experience is the appropriate installer for this system.

Key Features

• 48000 BTU total system capacity across four independent zones
• Each zone served by a 12000 BTU indoor air handler (part 8733962673)
• Complete kit includes four indoor units and one outdoor condensing unit
• Single outdoor unit (part 8733962698) supports all four zones
• Kit net weight of 244.93 pounds; gross weight of 318.51 pounds

Compatibility

This kit pairs indoor unit 8733962673 (quantity four) with outdoor unit 8733962698 (quantity one) as a factory-matched multi-zone assembly. No additional indoor or outdoor unit substitutions are specified for this configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician with EPA Section 608 certification for refrigerant handling. Before any service or connection work, de-energize all circuits at the disconnect and verify lockout-tagout procedures are followed. Line set sizing, refrigerant charge, and electrical supply requirements must conform to the manufacturer installation manual and applicable local mechanical and electrical codes. Do not attempt to mix components from outside this matched kit without verifying system compatibility with the manufacturer.

Technical Specifications

• System Capacity: 48000 BTU
• Number of Zones: 4
• Capacity Per Zone: 12000 BTU
• Indoor Unit Part Number: 8733962673 (quantity 4)
• Outdoor Unit Part Number: 8733962698 (quantity 1)
• Kit Net Weight: 244.93 pounds
• Kit Gross Weight: 318.51 pounds
• UPC: 52575023717

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980471
