Bosch 8733980467 Mini Split System 18000 Btu/h

Product Description

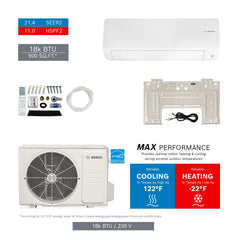

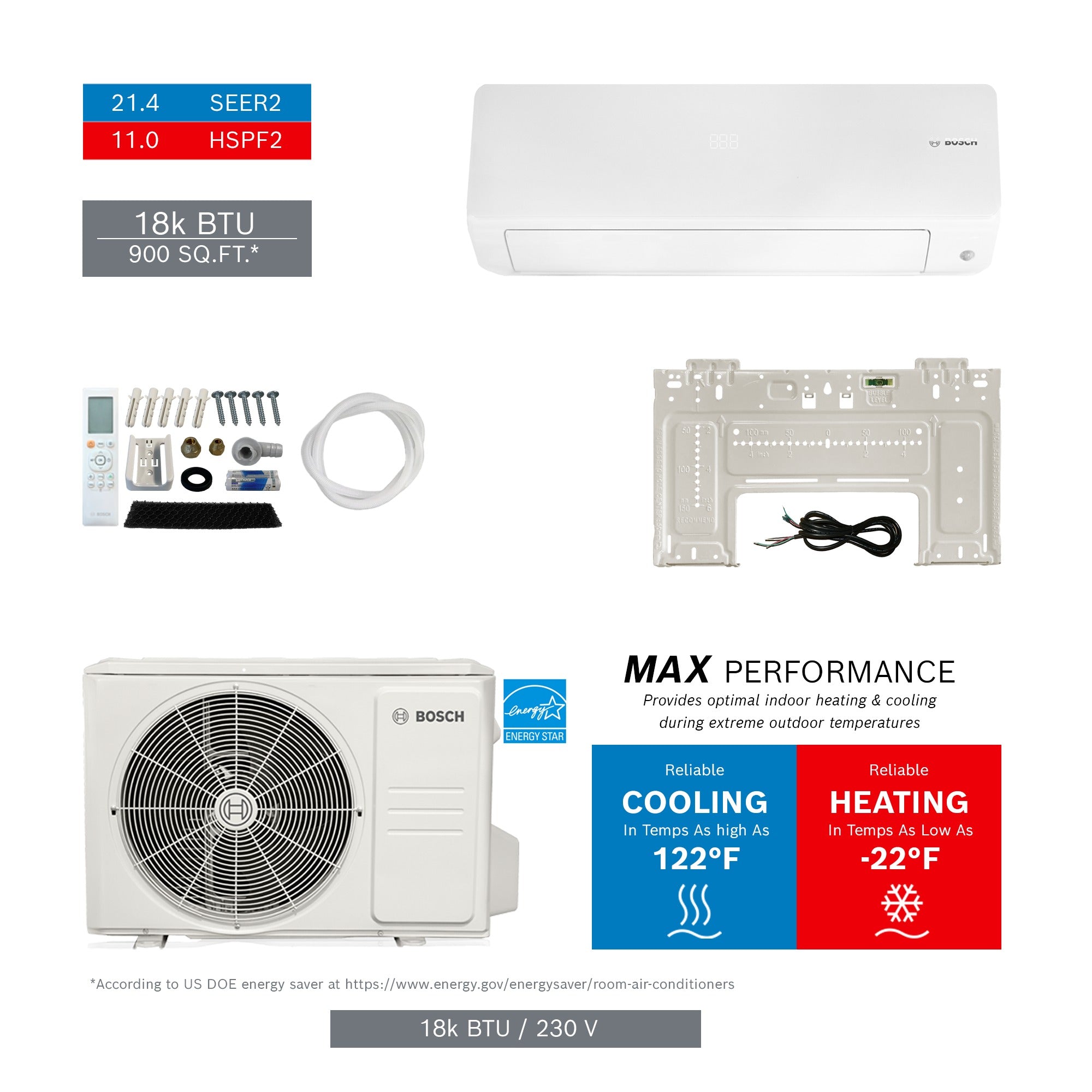

The BOSCH 8733980467 is an 18,000 BTU/h single-zone mini split system rated at 230 volts. The kit includes one indoor unit (IDU) and one outdoor unit (ODU), making it a complete system for residential or light-commercial cooling and heating applications. With an AHRI-certified SEER2 rating of 21.4 and an HSPF2 of 11.0, the system meets current efficiency standards. The unit carries Energy Star certification. Licensed HVAC technicians install and commission this system.

This system is designed for single-zone applications where one indoor air handler conditions one defined space. Typical installations include residential bedrooms, living areas, additions, garages, and small commercial spaces that require dedicated climate control. The 230-volt configuration is standard for residential mini split installations. The kit ships as a matched set of indoor and outdoor units ready for field refrigerant line connection and electrical hookup.

Key Features

• 18,000 BTU/h AHRI-certified capacity for single-zone heating and cooling
• SEER2 21.4 efficiency rating meets current Department of Energy testing standards
• HSPF2 11.0 heating efficiency with a COP of 3.26 at 47 degrees F
• EER2 12.5 steady-state cooling efficiency
• Energy Star certified
• Matched indoor and outdoor unit kit ships as a complete system

Compatibility

This kit pairs indoor unit 8733962674 with outdoor unit 8733962690 as a factory-matched set. No other compatibility data was provided in the product specification.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power before servicing either unit. Refrigerant line sizing, evacuation, and charge verification must follow the manufacturer installation manual and local mechanical codes. Electrical wiring must comply with NEC requirements for the applicable voltage and ampacity.

Technical Specifications

• Capacity: 18,000 BTU/h
• Voltage: 230 volts
• SEER2: 21.4
• EER2: 12.5
• HSPF2: 11.0
• COP at 47 degrees F: 3.26
• Energy Star: Yes
• Configuration: Single zone
• Indoor Unit MPN: 8733962674
• Outdoor Unit MPN: 8733962690
• Kit Net Weight: 127.21 pounds
• Kit Gross Weight: 179.4 pounds
• UPC: 52575023670

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980467
