Bosch 8733980465 Mini Split System 9000 Btu/h 230V

Product Description

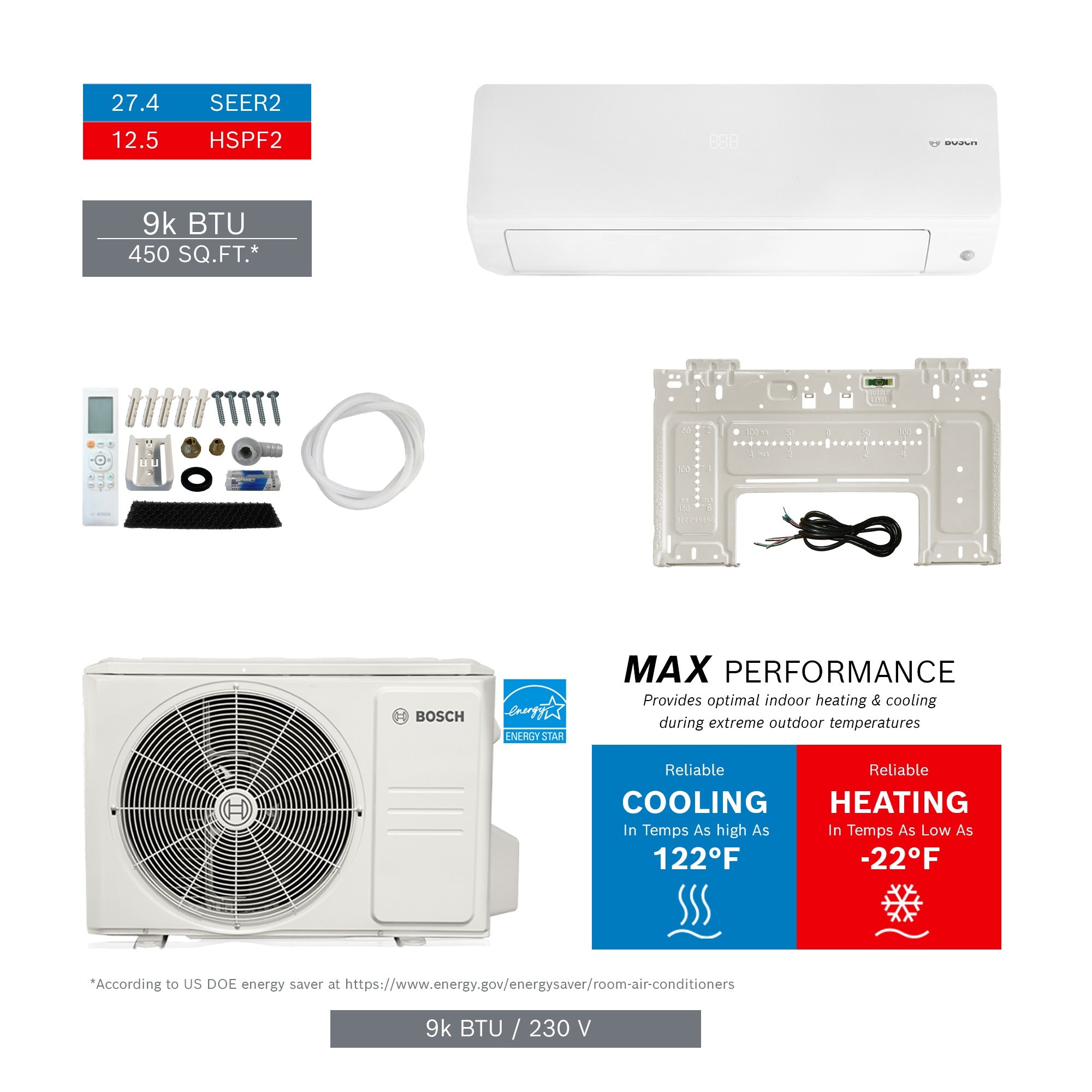

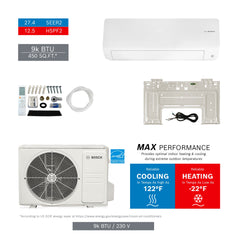

The BOSCH 8733980465 is a single-zone ductless mini split system rated at 9000 BTU/h and designed for 230-volt operation. The kit includes one indoor unit (IDU) and one outdoor unit (ODU) and delivers a SEER2 rating of 27.4 and an EER2 of 15.2, placing it firmly in the high-efficiency category for residential and light-commercial climate control. A heating seasonal performance factor (HSPF2) of 12.5 and a COP at 47 degrees F of 3.76 confirm strong year-round performance. This system carries Energy Star certification and is installed by licensed HVAC technicians.

This single-zone mini split is suited for residential rooms, additions, sunrooms, server rooms, and similar spaces where ducted systems are impractical or unavailable. Operating on a 230-volt circuit, it is a self-contained cooling and heating solution. The kit ships as a matched set: indoor unit 8733962672 and outdoor unit 8733962688, ensuring AHRI-verified performance between components.

Key Features

• AHRI-certified 9000 BTU/h capacity with SEER2 27.4 for high-efficiency operation
• Energy Star certified for qualifying efficiency rebate programs
• Matched indoor and outdoor unit kit ships together for confirmed system compatibility
• HSPF2 12.5 supports heating performance in moderate-to-cold climates
• COP of 3.76 at 47 degrees F indicates effective low-ambient heating capability
• 230-volt single-zone configuration simplifies electrical planning for new installs

Compatibility

This kit pairs indoor unit 8733962672 with outdoor unit 8733962688 as a factory-matched set. AHRI-certified performance values apply only to this matched combination.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and NEC requirements for dedicated 230-volt circuits. Power must be fully disconnected at the breaker panel before any wiring or refrigerant line work begins. Line set connections require proper torque and leak testing per the manufacturer installation manual; do not use refrigerant charge values or wire assignments not specified in that documentation. Mounting the indoor unit on a structurally sound wall surface and ensuring proper condensate drainage are essential steps before commissioning.

Technical Specifications

• Capacity: 9000 BTU/h
• Voltage: 230V
• SEER2: 27.4
• EER2: 15.2
• HSPF2: 12.5
• COP at 47 degrees F: 3.76
• Energy Star: Yes
• Kit Net Weight: 96.12 pounds
• Kit Gross Weight: 143.68 pounds
• Indoor Unit Part Number: 8733962672
• Outdoor Unit Part Number: 8733962688
• UPC: 52575023656

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980465
