Bosch 8733980463 Mini Split Heat Pump Kit 30000 Btu 230V

Product Description

The BOSCH 8733980463 is a single-zone mini split heat pump kit rated at 30,000 BTU/h, designed for ductless heating and cooling applications in residential and light commercial settings. Operating on 230 volts, this kit delivers a SEER2 rating of 20.5 and an EER2 of 12.0, placing it in the high-efficiency tier for unitary cooling equipment. The HSPF2 rating of 9.5 and a COP of 3.08 at 47 degrees F confirm strong heating performance in moderate-to-cold climates. The kit ships as a matched system including one indoor unit (IDU) and one outdoor unit (ODU), ready for installation by a licensed HVAC technician.

This kit is suited for single-zone ductless installations where a dedicated heating and cooling solution is needed for one room or open-plan space. Typical applications include residential additions, garages converted to conditioned space, server rooms, sunrooms, and new construction where running ductwork is impractical. The 30,000 BTU/h capacity targets mid-to-large zones. The system carries Energy Star certification, making it eligible for applicable utility rebate programs in many markets.

Key Features

• 30,000 BTU/h AHRI-rated capacity for mid-to-large single zones
• SEER2 20.5 and EER2 12.0 for high-efficiency cooling performance
• HSPF2 9.5 and COP 3.08 at 47 degrees F for effective cold-weather heating
• Energy Star certified — supports utility rebate eligibility

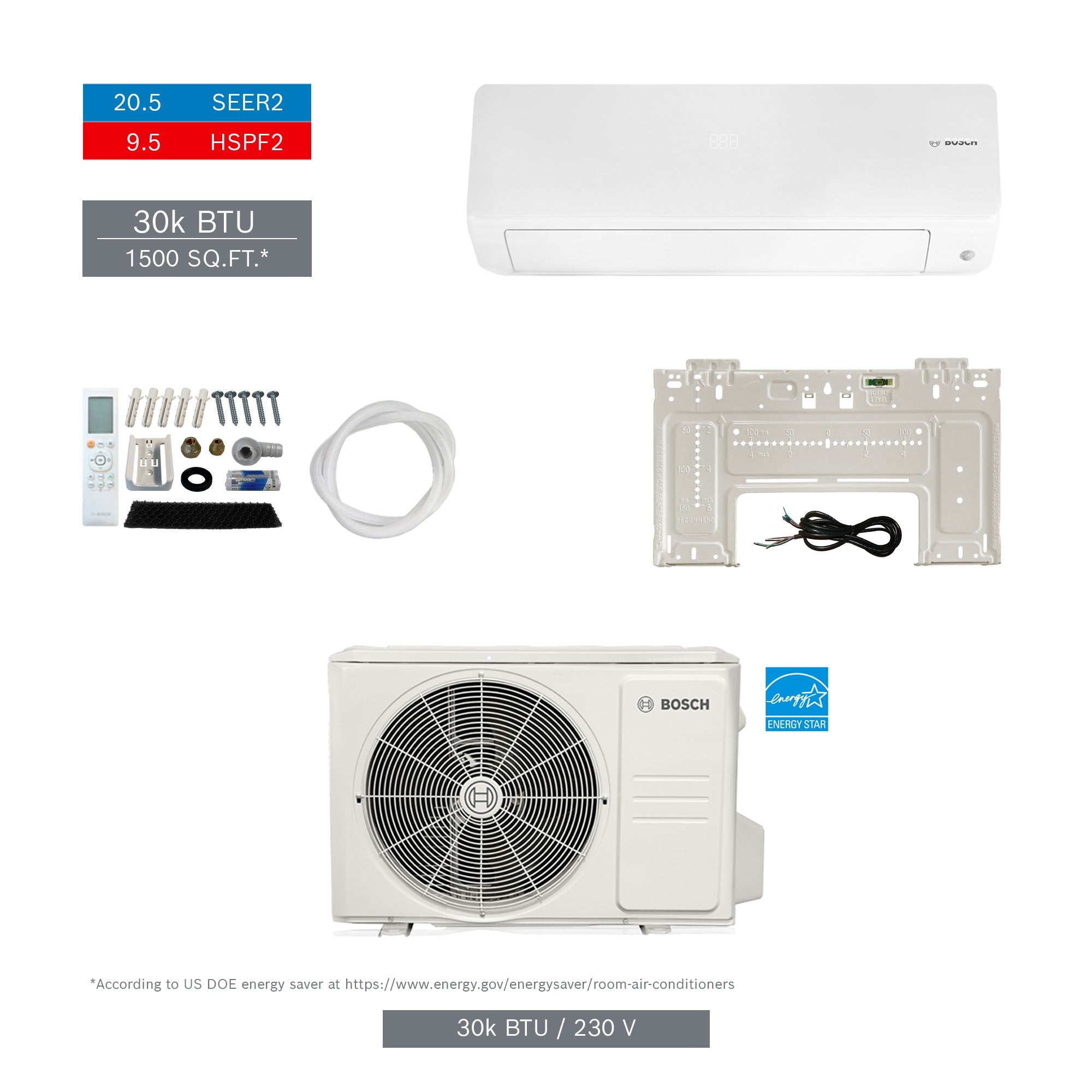

• Matched kit includes indoor unit (IDU 8733962677) and outdoor unit (ODU 8733962678)
• 230V single-phase operation standard to residential and light commercial electrical service

Compatibility

This kit pairs indoor unit IDU 8733962677 with outdoor unit ODU 8733962678 as a factory-matched single-zone system. No line set accessory or supplemental components are included in this configuration.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician. Disconnect and lock out electrical power at the circuit breaker before making any electrical connections to either the indoor or outdoor unit. Refrigerant line sets, line set covers, condensate drain lines, and low-voltage control wiring are typically field-supplied and must be sized to the manufacturer and local code requirements. Follow all applicable local mechanical and electrical codes, including NEC requirements for disconnect placement and branch circuit sizing for the unit nameplate ampacity.

Technical Specifications

• Capacity: 30,000 BTU/h
• Voltage: 230V
• SEER2: 20.5
• EER2: 12.0
• HSPF2: 9.5
• COP at 47 degrees F: 3.08
• Zones: Single zone
• Kit Net Weight: 186.07 pounds
• Kit Gross Weight: 244.21 pounds
• Energy Star Certified: Yes
• Indoor Unit Part Number: 8733962677
• Outdoor Unit Part Number: 8733962678
• UPC: 52575023632

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980463
