Bosch 8733980462 Mini Split 24000 Btu 230V Single Zone

Product Description

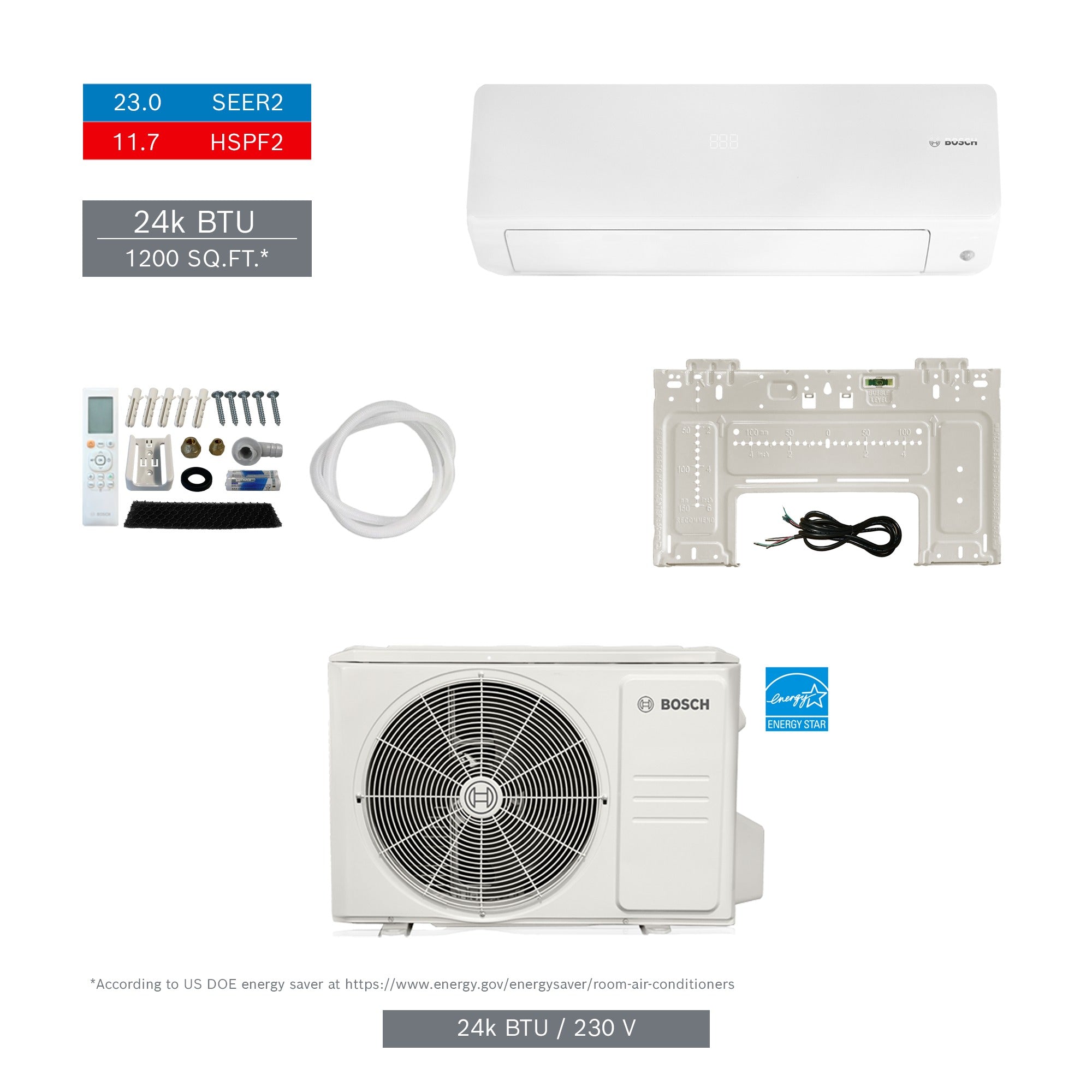

The BOSCH 8733980462 is a single-zone mini split system rated at 24000 BTU/h, operating on 230 volts. It ships as a matched system kit containing one indoor unit (IDU) and one outdoor unit (ODU), providing everything needed to complete a ductless heating and cooling installation. With a SEER2 rating of 23.0 and an HSPF2 of 11.7, this system meets Energy Star requirements and delivers strong efficiency performance in both cooling and heating modes. Licensed HVAC technicians install this system in residential and light-commercial applications where ductless zoning is required.

This system is suited for single-zone ductless applications such as room additions, converted spaces, server rooms, garages, and primary living areas where ducted systems are impractical or inefficient. The 24000 BTU/h capacity targets mid-size spaces. The kit includes indoor unit 8733962675 and outdoor unit 8733962687, both factory-matched for the rated efficiency figures. Installation requires a dedicated 230-volt circuit sized to the unit specifications.

Key Features

• 24000 BTU/h capacity for mid-size single-zone coverage
• SEER2 23.0 cooling efficiency rating
• HSPF2 11.7 heating efficiency rating
• EER2 14.0 energy efficiency ratio
• COP at 47 degrees F of 3.96 for reliable cold-climate heating
• Energy Star certified system
• Matched kit includes factory-paired IDU and ODU

Compatibility

This kit pairs indoor unit 8733962675 with outdoor unit 8733962687 as a factory-matched single-zone system. Components are matched and rated as a set; substituting individual units may void AHRI certification and alter rated efficiency values.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Before beginning work, de-energize the dedicated 230-volt circuit at the breaker panel and verify zero voltage with a meter. Refrigerant handling requires EPA Section 608 certification. Line set connections, electrical terminations, and condensate drainage must be completed and inspected before commissioning.

Technical Specifications

• Cooling Capacity: 24000 BTU/h
• Voltage: 230 volts
• SEER2: 23.0
• EER2: 14.0
• HSPF2: 11.7
• COP at 47 degrees F: 3.96
• Energy Star Certified: Yes
• Configuration: Single Zone
• Indoor Unit Part Number: 8733962675
• Outdoor Unit Part Number: 8733962687
• Kit Net Weight: 165.78 pounds
• Kit Gross Weight: 222.84 pounds
• UPC: 52575023625

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980462
