Bosch 8733980454 Mini Split System Kit 27000 Btu 2-zone

Product Description

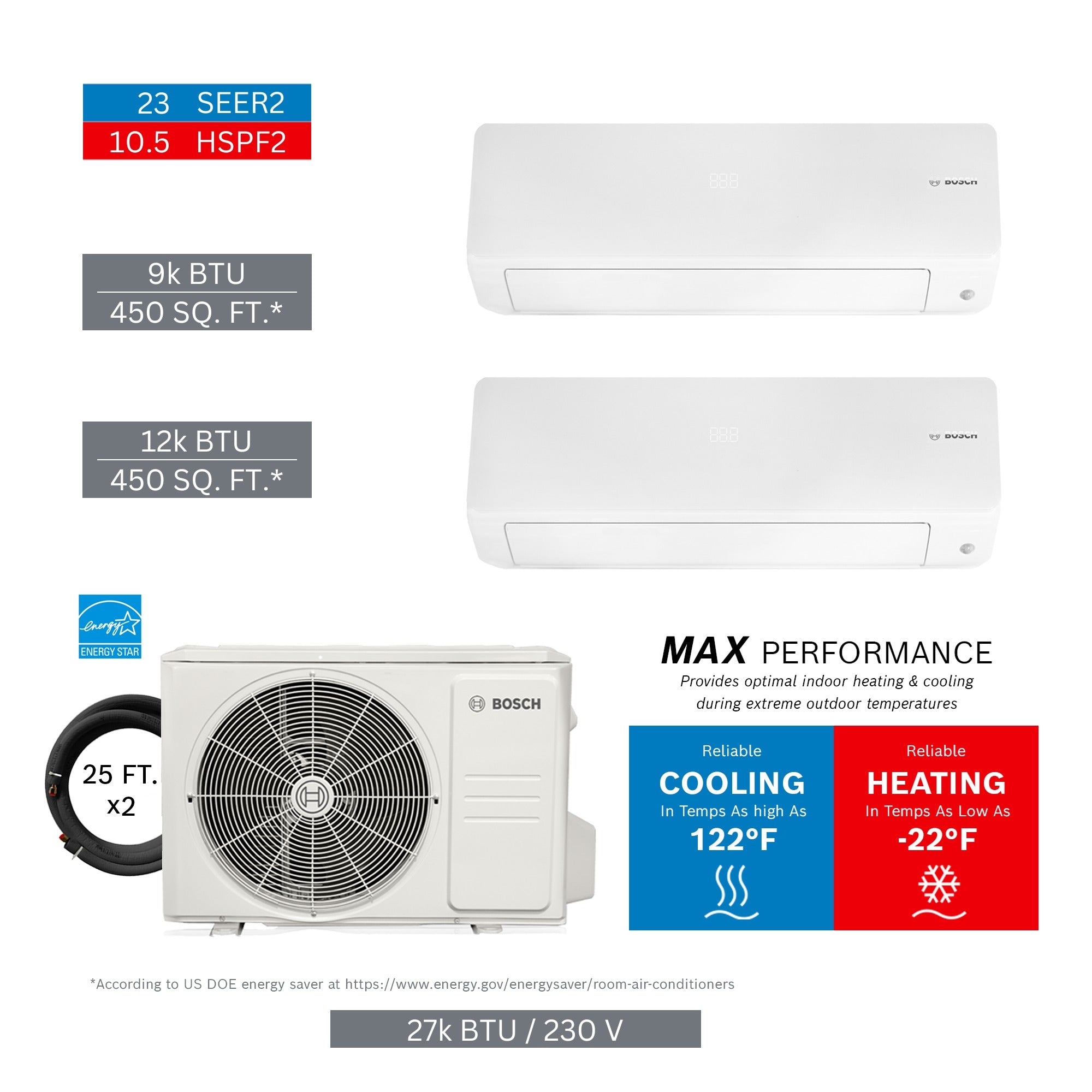

The BOSCH 8733980454 is a 2-zone mini split system kit rated at 27,000 BTU/h, designed for multi-zone residential and light commercial cooling and heating applications. This kit ships as a complete package, including two indoor air handler units, one outdoor condensing unit, and two pre-charged line sets at 25 feet each. Licensed HVAC technicians install this type of system where zoned temperature control is needed across two separate spaces without the complexity of a ducted system. The 9,000 BTU/h and 12,000 BTU/h indoor units allow independent comfort management in rooms of different sizes.

This 2-zone ductless mini split kit is suited for residential applications such as multi-room additions, converted garages, upper floors, or any scenario where two zones require independent climate control. The included 25-foot line sets reduce job-site fabrication time. Component part numbers are as follows: Indoor Unit 1 is 8733962672, Indoor Unit 2 is 8733962673, the outdoor unit is 8733962700, Line Set 1 is 8733951010, and Line Set 2 is 8733951011.

Key Features

• Complete 2-zone kit with indoor units, outdoor unit, and line sets included
• 9,000 BTU/h and 12,000 BTU/h indoor units for mixed-size zone coverage
• 25-foot pre-charged line sets supplied for both zones
• Ductless design eliminates the need for existing duct infrastructure
• Single outdoor condensing unit serves both indoor air handlers

Compatibility

This kit includes factory-matched components: indoor units 8733962672 and 8733962673, outdoor unit 8733962700, and line sets 8733951010 and 8733951011. All components are matched and intended to be installed together as a system.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Shut off all electrical power to the installation area before beginning any wiring work. Follow all local mechanical and electrical codes, including NEC requirements for disconnect and circuit sizing. Do not attempt to extend or substitute the included line sets without verifying system refrigerant charge and manufacturer guidelines.

Technical Specifications

• System Capacity: 27,000 BTU/h
• Number of Zones: 2
• Indoor Unit 1 Capacity: 9,000 BTU/h
• Indoor Unit 2 Capacity: 12,000 BTU/h
• Line Set Length: 25 feet per zone
• Kit Net Weight: 233.08 pounds
• Kit Gross Weight: 292.32 pounds
• UPC: 52575023540

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980454
