Bosch 8733980453 Mini Split Kit 18000 Btu 2 Zone

Product Description

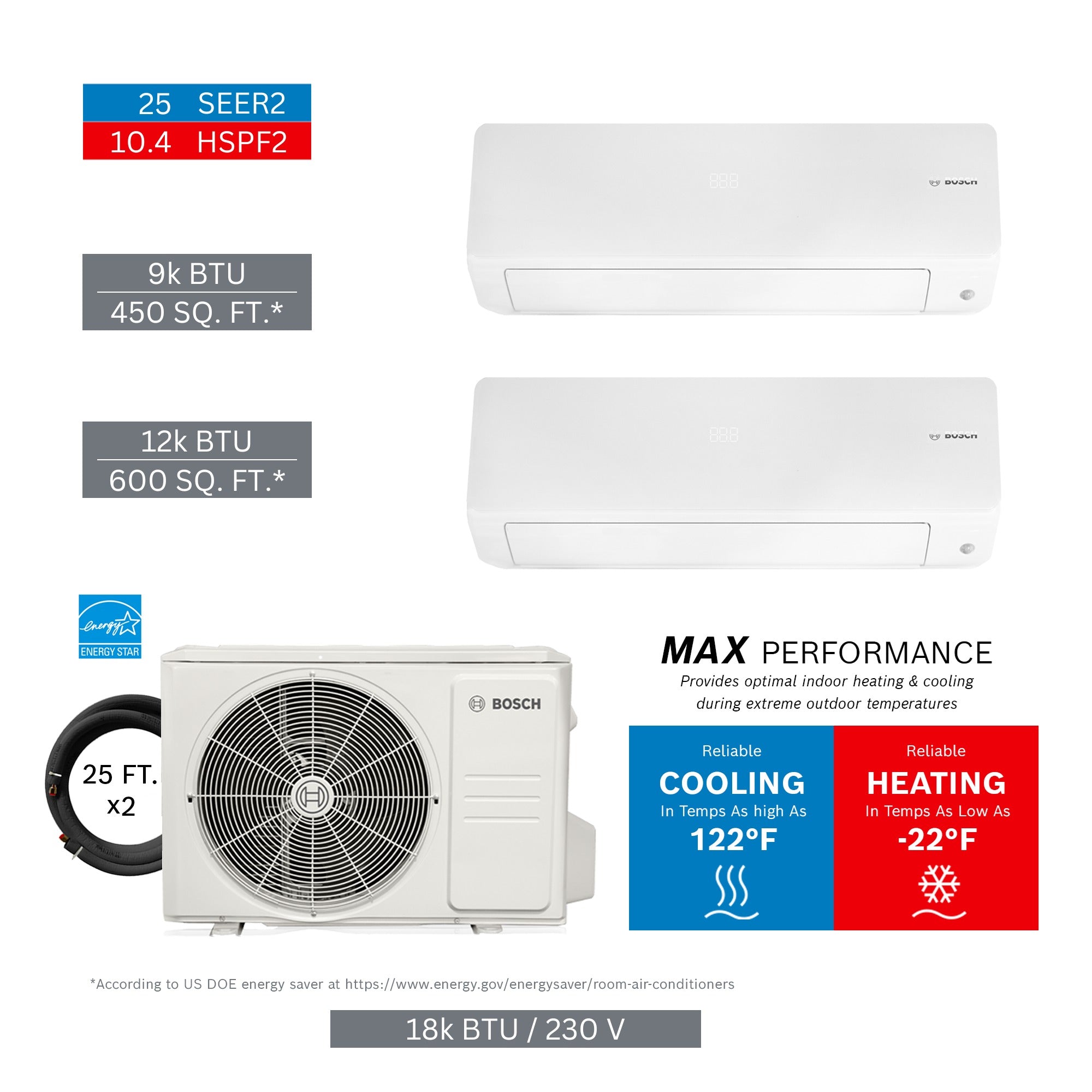

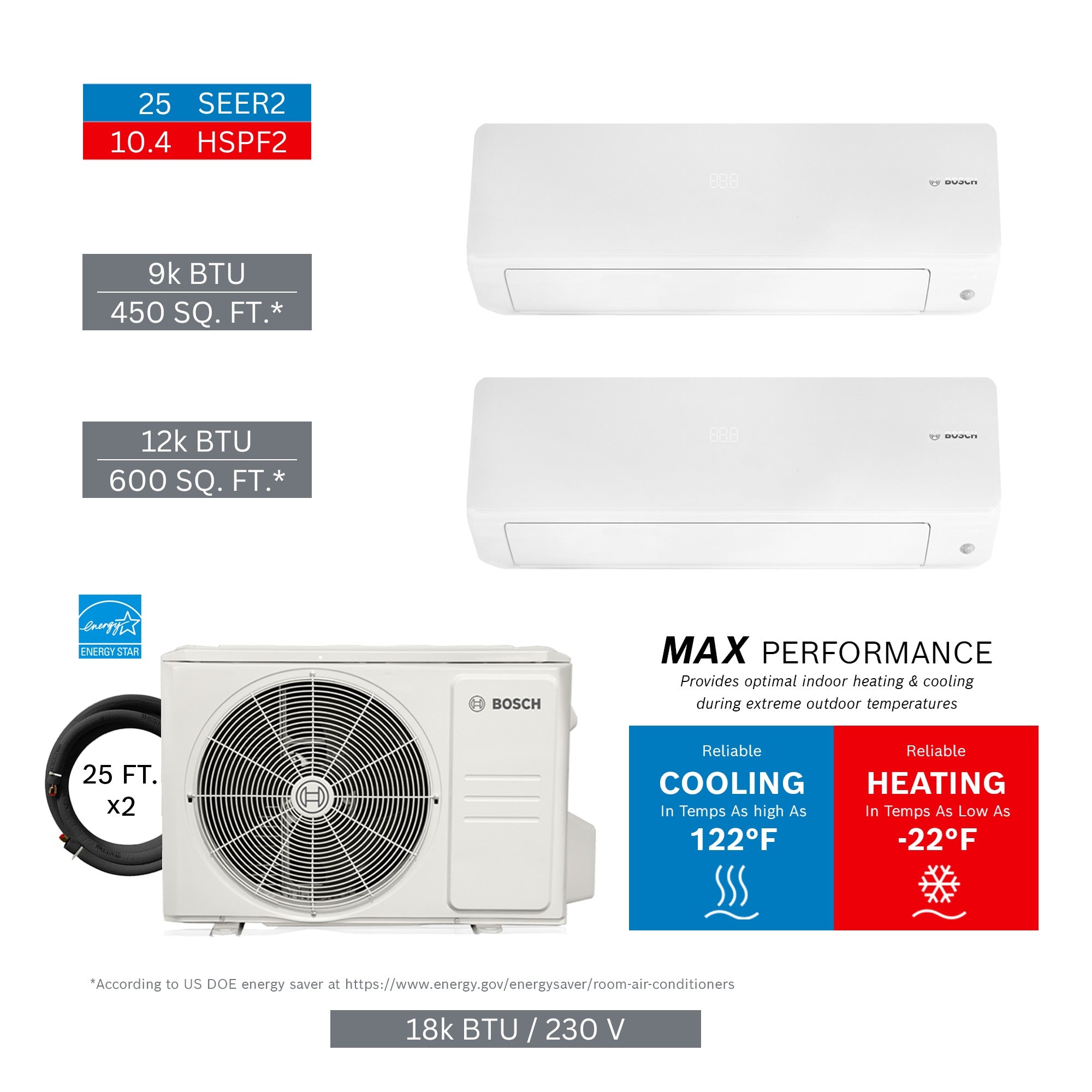

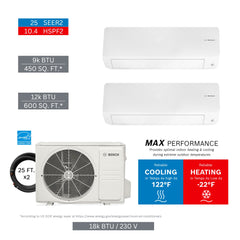

The BOSCH 8733980453 is a complete 2-zone mini split system kit rated at 18000 BTU, designed for residential and light commercial zoned heating and cooling applications. This kit bundles the outdoor unit, two indoor air handlers, and two pre-charged line sets into a single package, reducing procurement time and component mismatches. The kit ships at a net weight of 202 pounds, making crane or team lift staging necessary on most installs. Licensed HVAC technicians typically handle installation and commissioning of this type of multi-zone system.

This kit is suited for applications requiring independent temperature control in two separate zones, such as multi-room residential additions, garage conversions, or small commercial spaces. The two indoor units are rated at 9000 BTU and 12000 BTU respectively, allowing capacity to be matched to room load. Each zone ships with a 25-foot line set, providing standard reach for most wall-penetration installations. The outdoor unit, both indoor heads, and both line sets are included in the kit as listed below.

Key Features

• Complete 2-zone kit — outdoor unit, two indoor heads, and two line sets included
• 9000 BTU indoor unit (IDU 8733962672) and 12000 BTU indoor unit (IDU 8733962673) provide flexible zone sizing
• Outdoor unit model 8733962699 matched to the included indoor heads
• 25-foot line sets (8733951010 and 8733951011) included for each zone
• Kit net weight of 202 pounds supports pre-job load and rigging planning

Compatibility

This kit is factory-assembled as a matched 2-zone mini split system. Component part numbers included are: outdoor unit 8733962699, indoor unit 8733962672 (9000 BTU), indoor unit 8733962673 (12000 BTU), line set 8733951010, and line set 8733951011. Use only the matched components as configured in this kit.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA 608 certification for refrigerant handling. Shut off all power at the disconnect before making electrical connections to the outdoor unit or indoor heads. Follow local mechanical and electrical codes for line set routing, wall penetration sealing, and low-voltage control wiring. Do not mix matched system components with unverified third-party heads or line sets.

Technical Specifications

• System Capacity: 18000 BTU
• Zone Count: 2
• Indoor Unit 1 Capacity: 9000 BTU
• Indoor Unit 2 Capacity: 12000 BTU
• Line Set Length per Zone: 25 feet
• Kit Net Weight: 202 pounds
• Kit Gross Weight: 260.8 pounds
• UPC: 52575023533

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980453
