Bosch 8733980452 Mini-split Multi-zone Kit 12000 Btu 2 Zone

Product Description

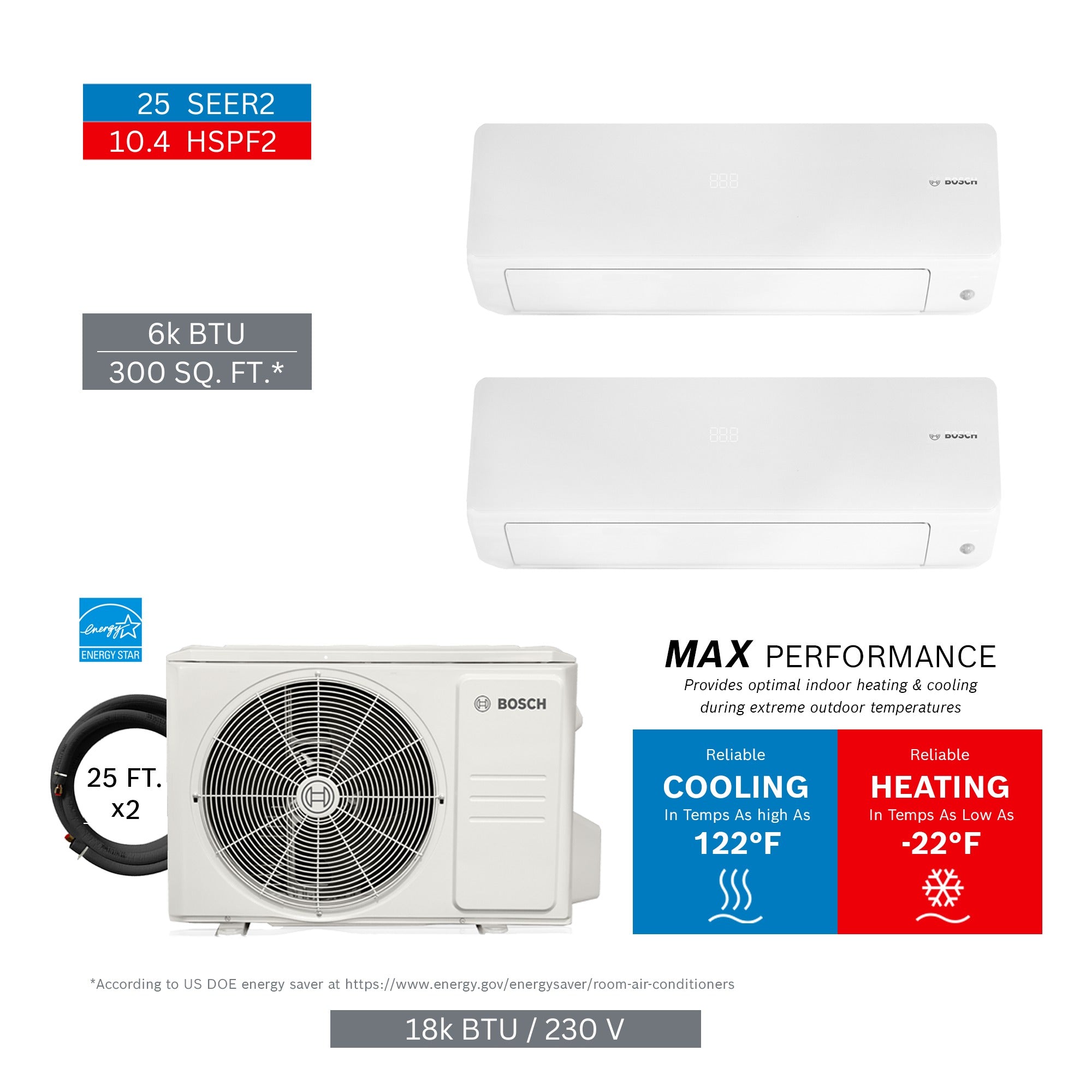

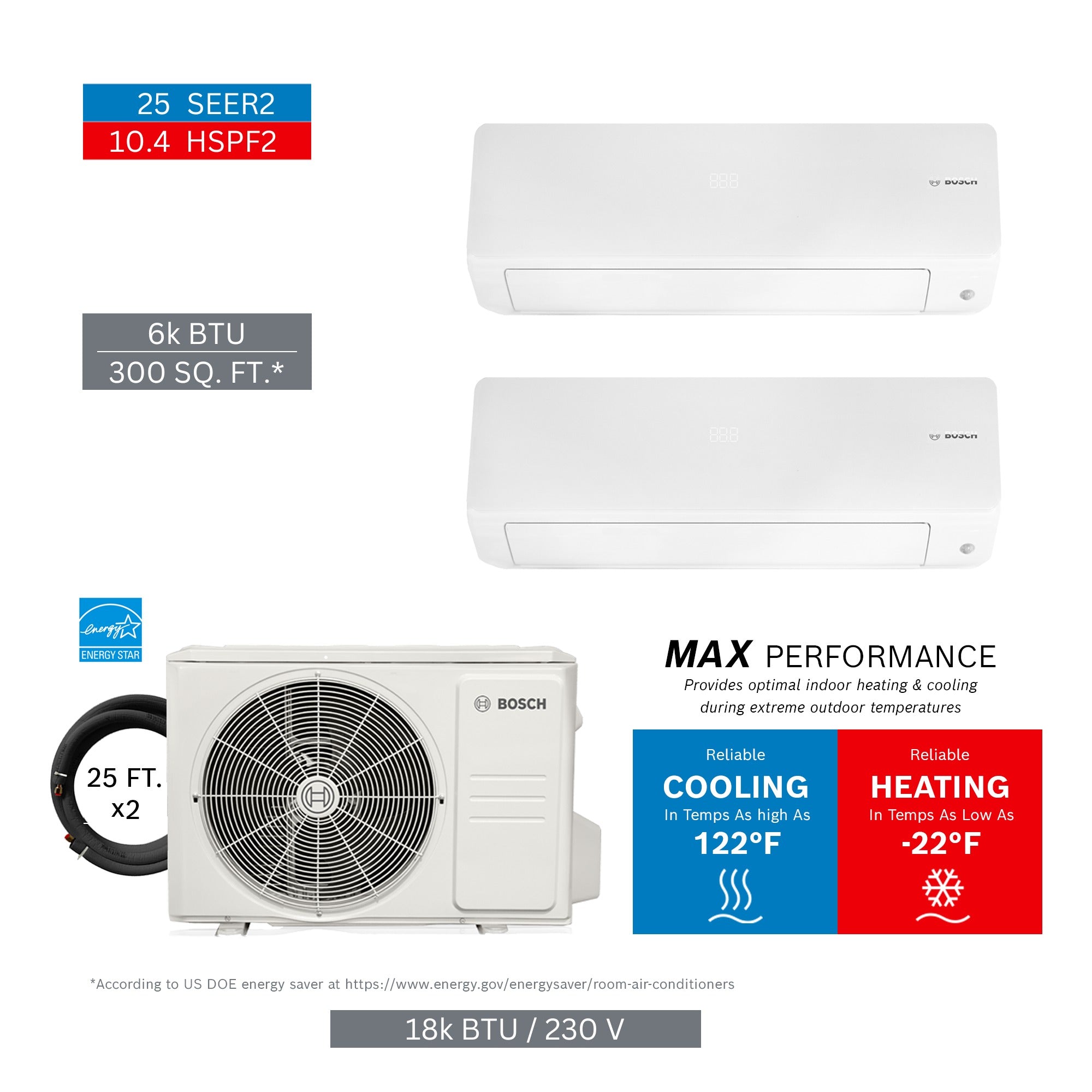

The BOSCH 8733980452 is a multi-zone mini-split system kit designed for residential and light commercial cooling and heating applications. This Generation 4 (G4) MAX series kit delivers up to 12000 BTU/h of total system capacity split across two zones, each served by a 6000 BTU/h indoor unit. The kit ships as a complete assembly including two indoor air handlers, one outdoor condensing unit, and two 25-foot line sets, making it a ready-to-install package for qualified HVAC technicians. It is suited for retrofit and new-construction installations where multiple rooms or zones require independent climate control from a single outdoor unit.

This kit is intended for two-zone ductless mini-split installations in residential settings such as multi-room additions, garages with living space, or small commercial suites. The included components cover the full refrigerant circuit from outdoor unit to each indoor head, with pre-measured 25-foot line sets for each zone. The G4 MAX platform is designed for applications where independent zone control and compact outdoor footprint are priorities. Installation is performed by licensed HVAC technicians familiar with ductless split systems and refrigerant handling.

Key Features

• Complete two-zone kit — outdoor unit, two indoor units, and two line sets included
• 12000 BTU/h total system capacity across two 6000 BTU/h zones
• 25-foot line sets pre-matched for each indoor unit
• Generation 4 (G4) MAX series platform
• Single outdoor condensing unit serves both indoor heads, reducing rooftop or ground-level equipment footprint

Compatibility

Kit includes indoor units 8733962676 (qty 2), outdoor unit 8733962699 (qty 1), and line sets 8733951010 (qty 2). Designed as a matched-component multi-zone ductless mini-split system; component substitutions should be verified against BOSCH MZ MAX G4 series engineering documentation.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician with experience in ductless multi-zone refrigerant systems. Disconnect all power to the outdoor and indoor units before making any electrical or refrigerant connections. Line set routing, refrigerant charging, and electrical connections must comply with local mechanical codes and NEC requirements. Do not attempt to charge or commission the system without proper refrigerant recovery and manifold gauge equipment.

Technical Specifications

• Total System Capacity: 12000 BTU/h (2 zones at 6000 BTU/h each)
• Number of Zones: 2
• Line Set Length: 25 ft per zone
• Kit Net Weight: 169.22 pounds
• Kit Gross Weight: 221.63 pounds
• UPC: 52575023526
• Indoor Unit Part Number: 8733962676 (qty 2)
• Outdoor Unit Part Number: 8733962699 (qty 1)
• Line Set Part Number: 8733951010 (qty 2)

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980452
