Bosch 8733980449 27000 Btu 3-zone Mini-split System

Product Description

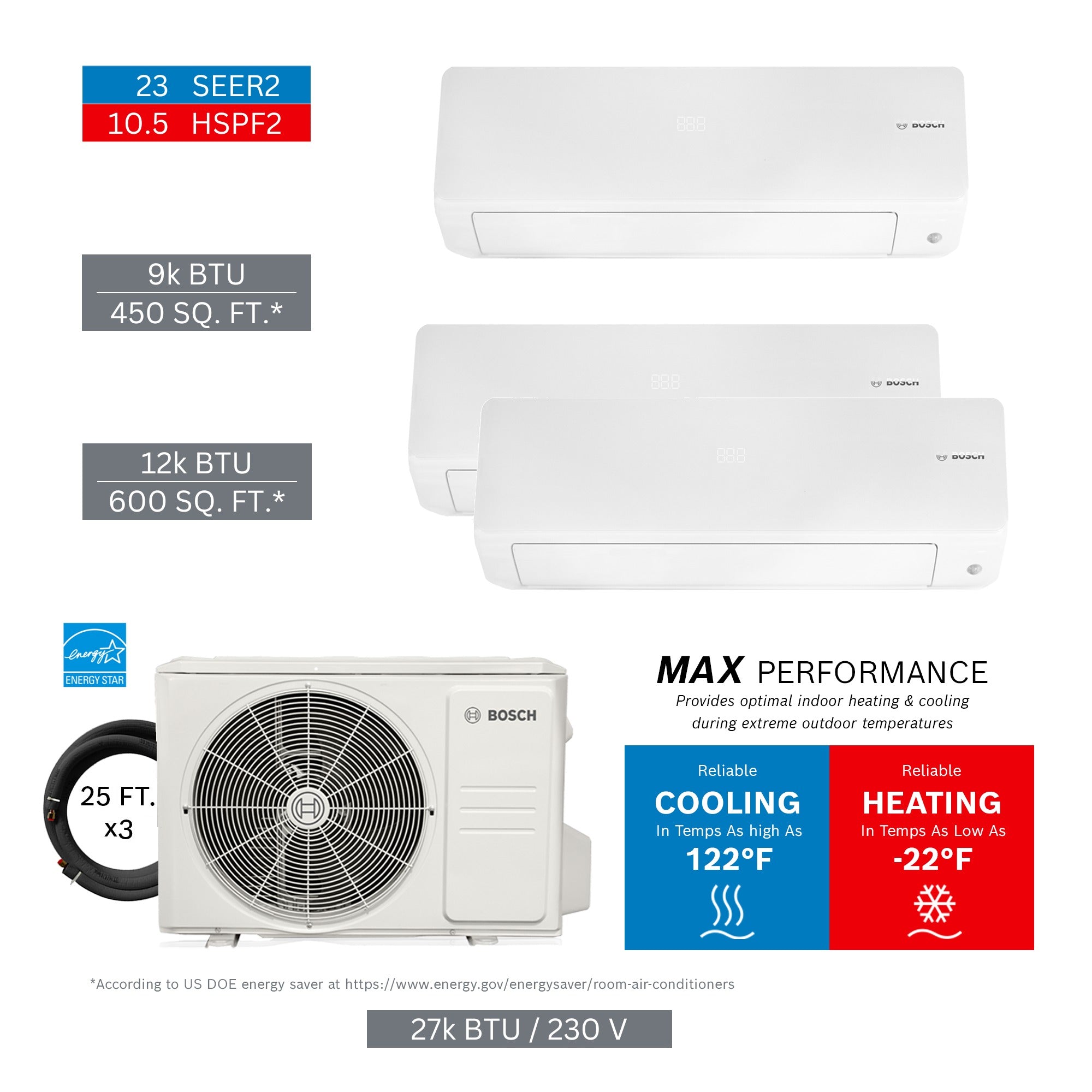

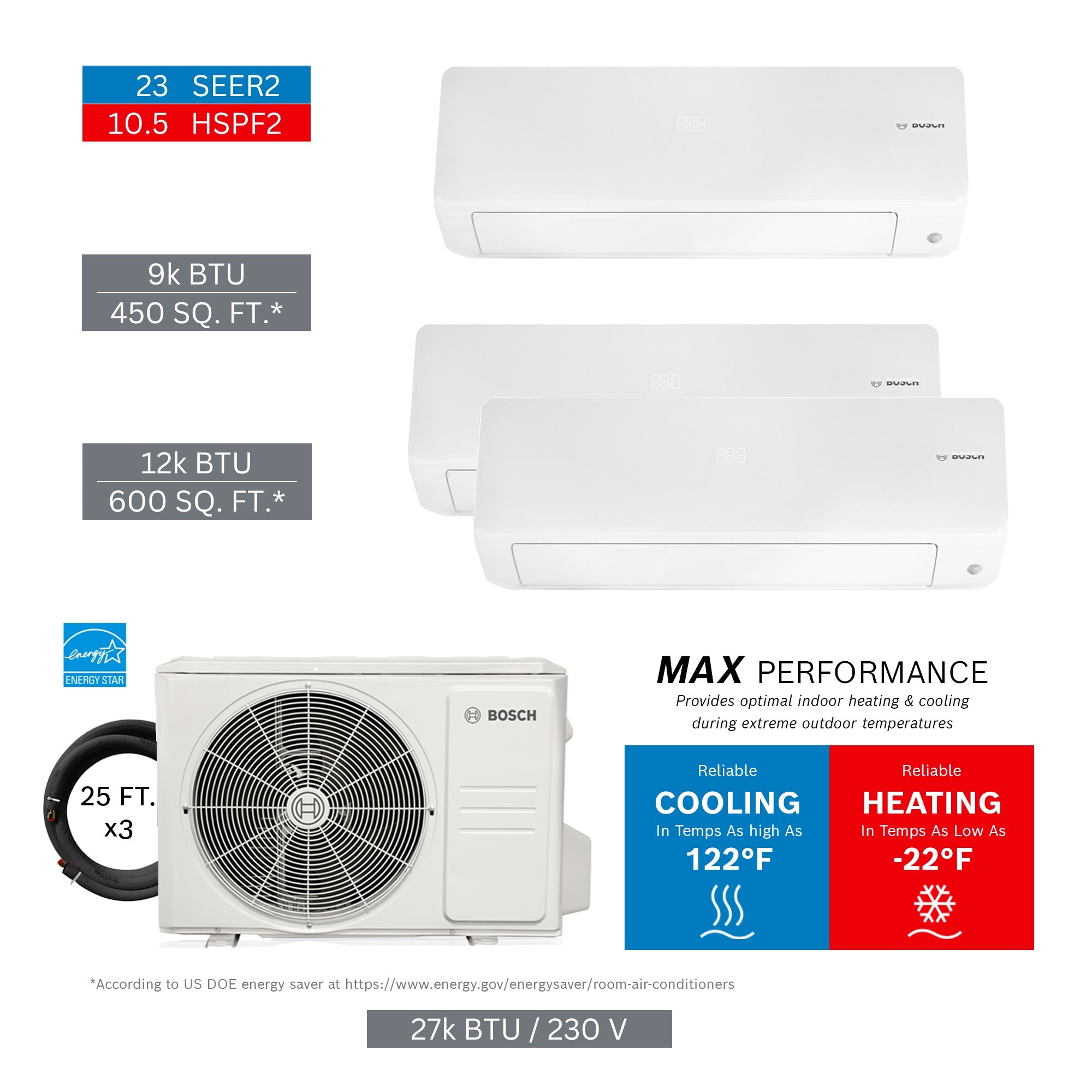

The BOSCH 8733980449 is a 27,000 BTU multi-zone ductless mini-split system configured for three zones of independent climate control. The kit includes one 9,000 BTU indoor unit, two 12,000 BTU indoor units, one outdoor condensing unit, and pre-cut line sets sized for 25-foot runs. This is a complete packaged system designed to reduce sourcing time on multi-zone residential or light-commercial ductless installations. Licensed HVAC technicians handle the refrigerant connections, electrical hookup, and commissioning required to bring the system online.

This system is suited for residential and light-commercial applications where three separate zones require independent temperature control without ductwork. Typical installations include multi-room residential retrofits, additions, sunrooms, or small commercial spaces where a central ducted system is impractical. The 25-foot line sets included in this kit are sized for standard room-to-outdoor-unit runs. The packaged configuration simplifies ordering by bundling all major components under one part number.

Key Features

• 27,000 BTU total system capacity across three independently controlled zones
• Includes one 9,000 BTU indoor unit (IDU 8733962672) and two 12,000 BTU indoor units (IDU 8733962673)
• Outdoor condensing unit (ODU 8733962700) supports all three zones from a single installation point
• Kit includes one 25-foot line set (8733951010) and two 25-foot line sets (8733951011) matched to each indoor unit
• Complete kit format reduces component sourcing and helps ensure part compatibility across the system

Compatibility

This kit is a factory-configured multi-zone ductless mini-split package. Component part numbers included are IDU 8733962672 (x1), IDU 8733962673 (x2), ODU 8733962700 (x1), LineSet 8733951010 (x1), and LineSet 8733951011 (x2). Install only with the components supplied in this kit.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power to the installation site before mounting indoor or outdoor units. Refrigerant line connections require proper flaring, leak testing, and system evacuation before charging. Electrical service for the outdoor unit must be installed per NEC requirements and local jurisdiction amendments.

Technical Specifications

• System Capacity: 27,000 BTU/h
• Zone Count: 3 zones
• Indoor Unit 1: 9,000 BTU/h (x1) — Part 8733962672
• Indoor Unit 2: 12,000 BTU/h (x2) — Part 8733962673
• Outdoor Unit: Part 8733962700 (x1)
• Line Set 1: 25 ft (x1) — Part 8733951010
• Line Set 2: 25 ft (x2) — Part 8733951011
• Kit Net Weight: 233.08 pounds
• Kit Gross Weight: 292.32 pounds
• UPC: 52575023496

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980449
