Bosch 8733980448 24000 Btu 2-zone Mini Split System

Product Description

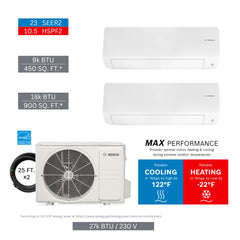

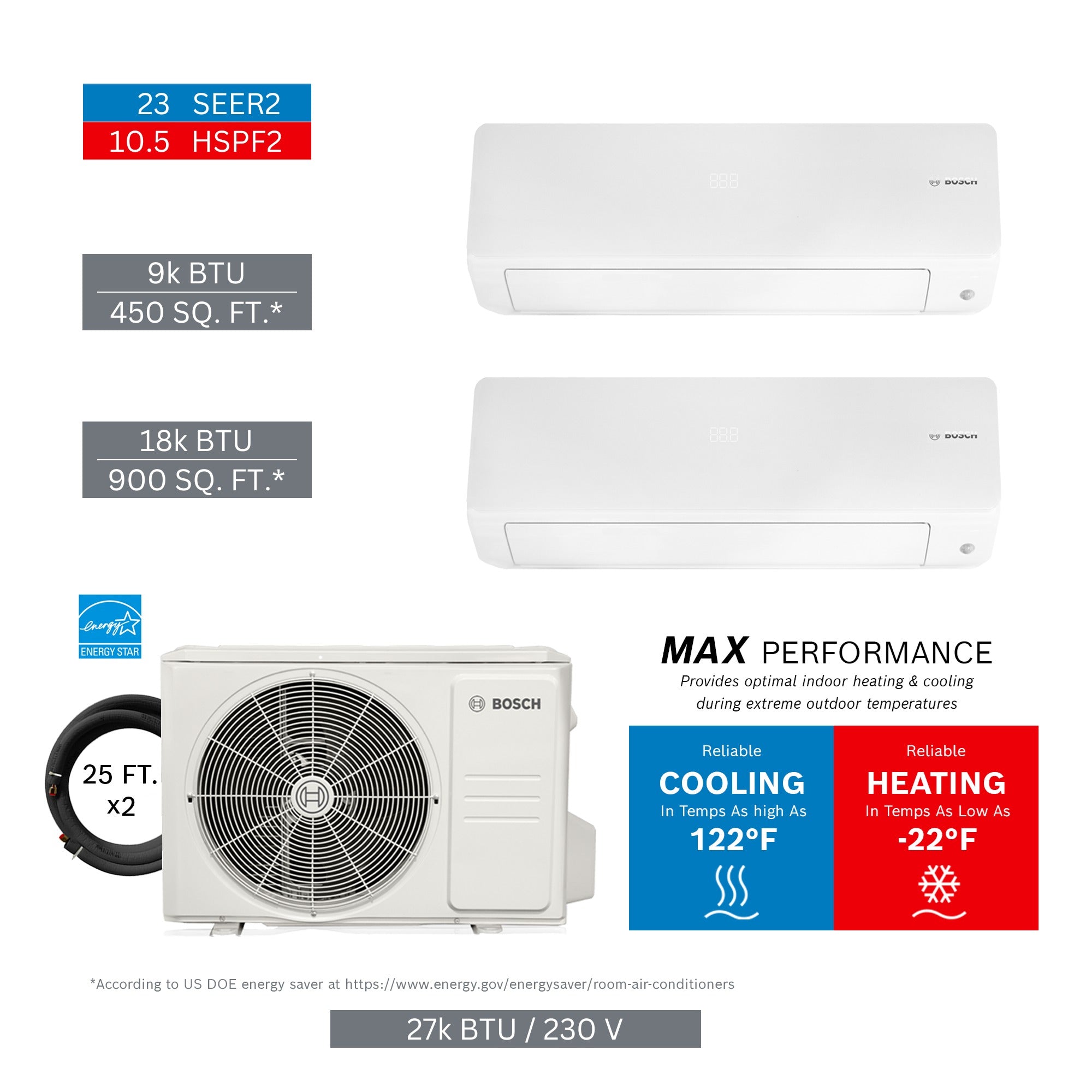

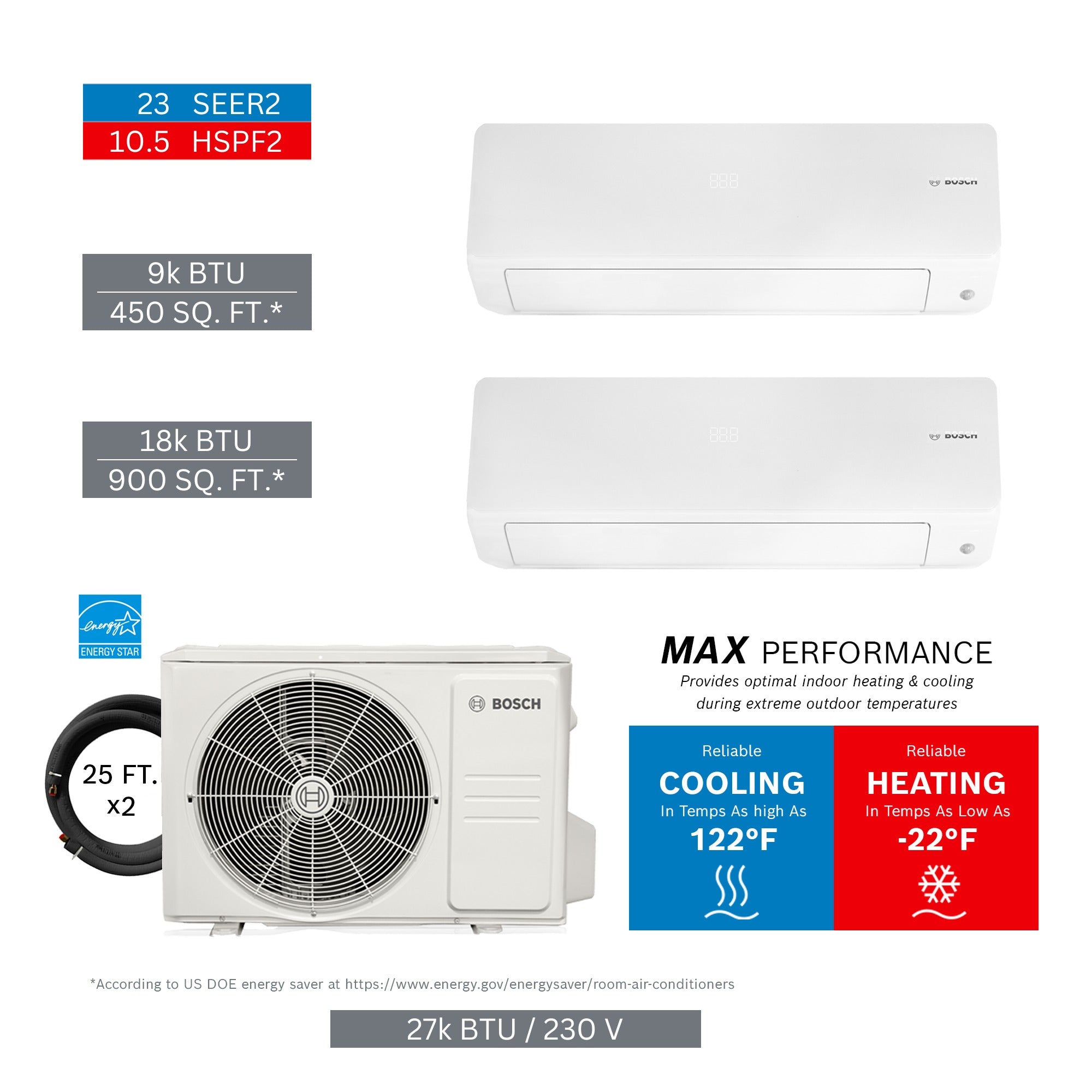

The BOSCH 8733980448 is a 24000 BTU multi-zone ductless mini split system configured for two indoor zones. The kit includes one 9000 BTU indoor unit, one 18000 BTU indoor unit, one outdoor condensing unit, and two pre-cut line sets at 25 feet each. Designed for residential and light commercial applications, this system delivers independent zone cooling and heating control without ductwork. Licensed HVAC technicians install and commission this type of system, which requires proper refrigerant handling under EPA Section 608 certification.

This two-zone system is suited for residential installations where two separate rooms or areas require independent temperature control. The included 25-foot line sets simplify rough-in for typical single-story or two-story layouts where the outdoor unit is mounted on an exterior wall or pad adjacent to the conditioned spaces. The 9000 BTU and 18000 BTU indoor units allow the installer to match capacity to room load on each zone independently.

Key Features

• 24000 BTU total system capacity split across two independent zones
• Includes 9000 BTU indoor unit (IDU 8733962672) and 18000 BTU indoor unit (IDU 8733962674)
• Outdoor condensing unit (ODU 8733962700) included in kit
• Two 25-foot line sets (8733951010 and 8733951011) included for complete rough-in
• Ductless design allows independent zone-level temperature control
• Complete kit reduces sourcing time by bundling all major system components

Compatibility

This kit is designed as a matched multi-zone ductless system. Component part numbers included are IDU 8733962672, IDU 8733962674, ODU 8733962700, LineSet 8733951010, and LineSet 8733951011. Consult BOSCH product documentation to verify compatibility with any additional accessories or controls.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician. Power down all electrical circuits before beginning refrigerant line or electrical connections. The outdoor unit should be mounted on a level pad or wall bracket capable of supporting the system weight, and line sets must be properly supported and protected from physical damage. Follow all applicable local mechanical and electrical codes during installation and commissioning.

Technical Specifications

• Total System Capacity: 24000 BTU/h
• Zone Count: 2
• Zone 1 Capacity: 9000 BTU/h
• Zone 2 Capacity: 18000 BTU/h
• Included Line Set Length: 25 feet per zone
• Kit Net Weight: 237.49 pounds
• Kit Gross Weight: 299.6 pounds
• UPC: 52575023489

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980448
