Bosch 8733980445 27000 Btu 3-zone Mini-split Kit

Product Description

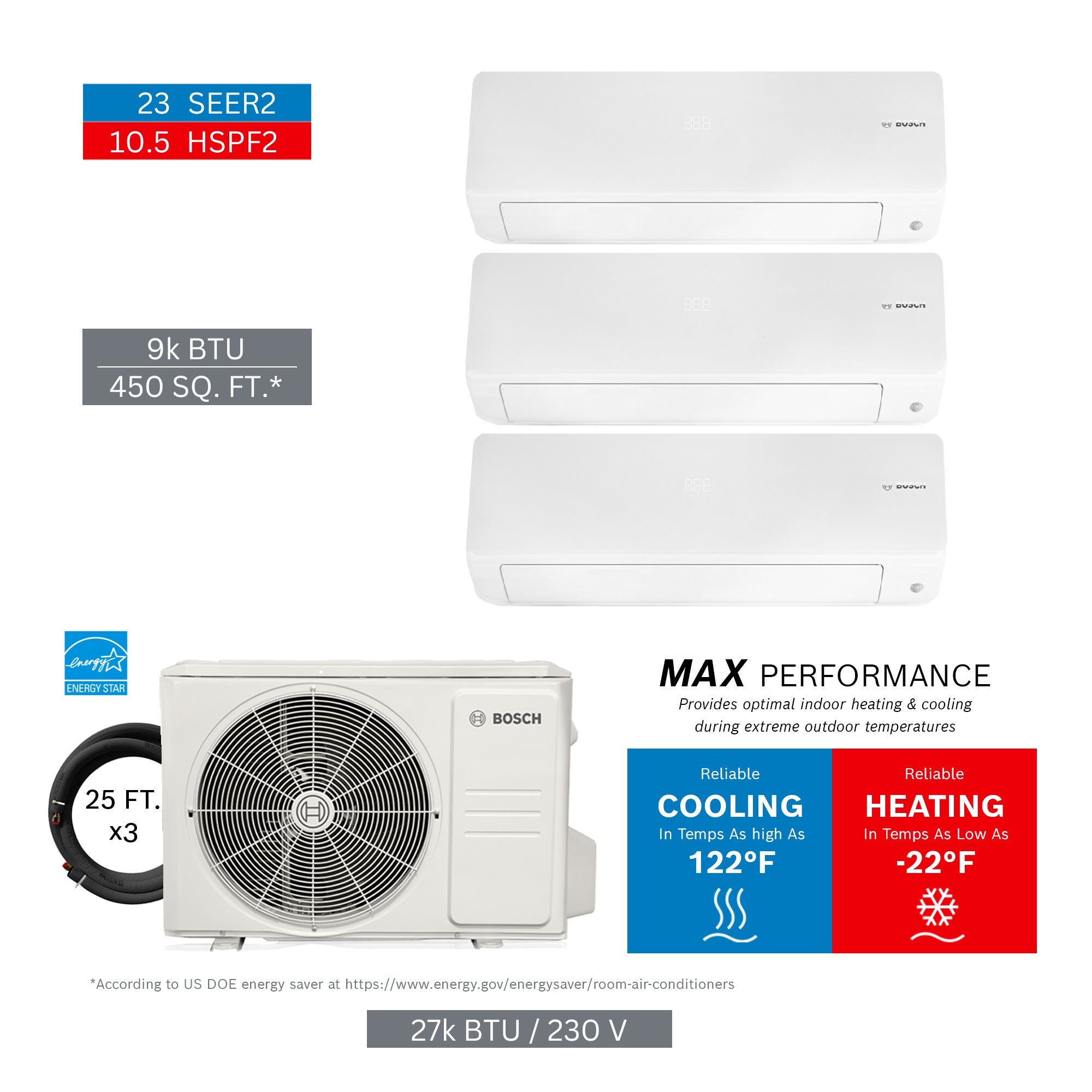

The BOSCH 8733980445 is a complete multi-zone mini-split system kit rated at 27000 BTU, configured for three-zone simultaneous climate control. The kit ships with all major components needed for a multi-zone ductless installation: three indoor air handler units, one outdoor condensing unit, and three pre-cut line sets. Designed for residential and light commercial applications, this kit is typically installed by licensed HVAC technicians performing ductless system work. The 27000 BTU total capacity is distributed across three matched 9000 BTU indoor units, making it well suited for multi-room or multi-area zoning scenarios.

This kit is intended for three-zone ductless mini-split installations where independent temperature control is required in separate rooms or areas. Each of the three indoor units delivers 9000 BTU of heating and cooling capacity. The included 25-foot line sets are sized for the matched indoor and outdoor units in this configuration. Typical applications include residential new construction, retrofits without existing ductwork, and light commercial spaces requiring zoned comfort without a central ducted system.

Key Features

• Complete 3-zone kit: three indoor units, one outdoor unit, and three line sets included
• 27000 BTU total system capacity across three 9000 BTU indoor air handlers
• 25-foot line sets matched to each indoor unit for simplified installation planning
• Indoor Unit Part Number: 8733962672 (qty 3)
• Outdoor Unit Part Number: 8733962700 (qty 1)
• Line Set Part Number: 8733951010 (qty 3)

Compatibility

This kit is factory-configured with BOSCH components: indoor units 8733962672 (x3), outdoor unit 8733962700 (x1), and line sets 8733951010 (x3). These components are matched at the factory for this multi-zone configuration and should not be substituted with unverified units.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Power to all circuits must be shut off at the breaker panel before making any electrical connections. Line set routing, refrigerant evacuation, and system commissioning should follow the manufacturer installation instructions and local mechanical codes. Do not attempt to swap or substitute individual components without verifying compatibility with the matched system configuration.

Technical Specifications

• Total System Capacity: 27000 BTU
• Number of Zones: 3
• Indoor Unit Capacity (each): 9000 BTU
• Line Set Length (each): 25 feet
• Kit Net Weight: 200.3 pounds
• Kit Gross Weight: 253.15 pounds
• UPC: 52575023458

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980445
