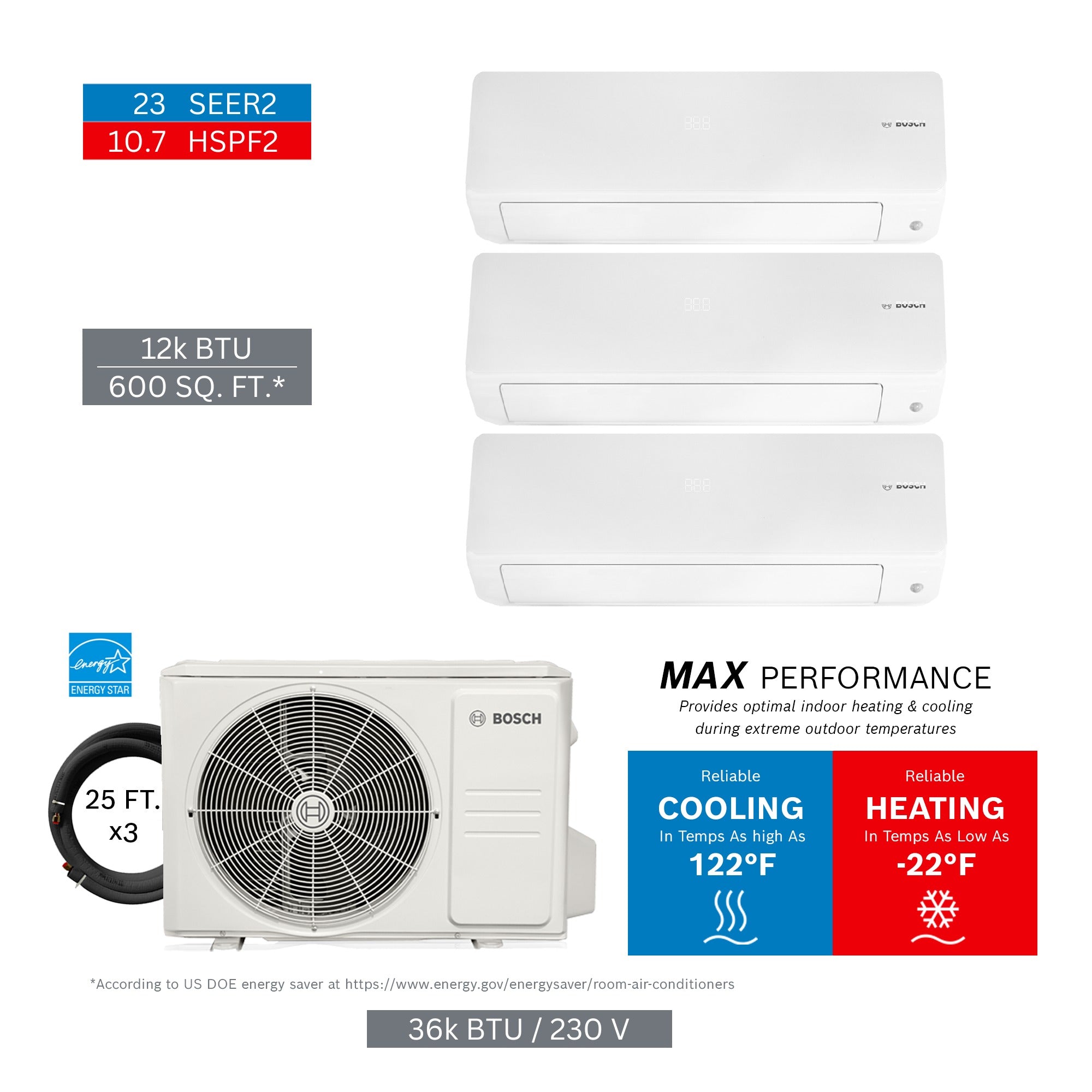

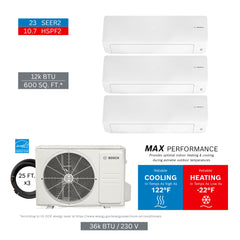

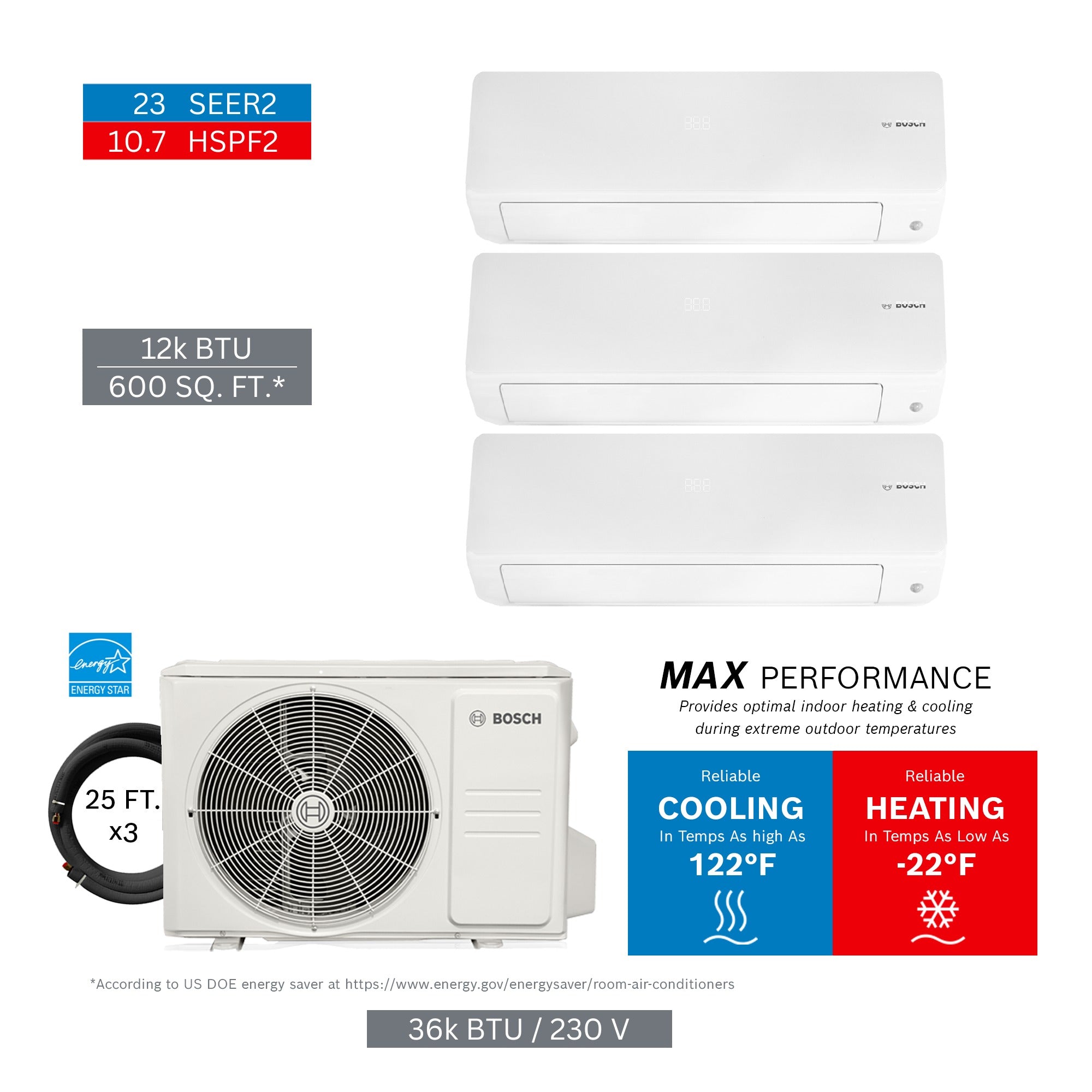

Bosch 8733980441 36K Btu 3-zone Mini Split Kit

Product Description

The BOSCH 8733980441 is a multi-zone mini split system kit designed for residential and light commercial ductless HVAC applications. This kit delivers 36000 BTU of total system capacity across three zones, with each zone served by a 12000 BTU indoor unit. The kit includes all primary components needed for a three-zone installation: three indoor air handlers, one outdoor condensing unit, and three 25-foot line sets. HVAC technicians and ductless system installers working on multi-room or multi-zone comfort projects will find this a complete, matched-component assembly.

This system kit is suited for installations requiring independent climate control across three separate spaces, such as multi-room residential builds, additions, or light commercial suites. The G4 generation indoor units and the matched outdoor unit are factory-paired components. Each zone receives a dedicated 25-foot line set, supporting straightforward single-run layouts from the outdoor unit location to each conditioned space.

Key Features

• 36000 BTU total system capacity across three zones
• Three 12000 BTU indoor air handlers included
• One matched outdoor condensing unit included
• Three 25-foot line sets included for complete refrigerant circuit runs
• G4 generation MZ MAX indoor units
• All components factory-matched as a single kit for simplified procurement

Compatibility

This kit includes indoor unit 8733962673 (quantity 3), outdoor unit 8733962701 (quantity 1), and line set 8733951011 (quantity 3) as factory-matched components. Consult BOSCH documentation for confirmed compatible accessories or auxiliary components.

Installation Notes

Installation of multi-zone mini split systems must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Disconnect and lock out all electrical power to the system before making any wiring or refrigerant connections. Follow all applicable local mechanical and electrical codes during line set routing, electrical rough-in, and mounting of indoor and outdoor units. Do not mix components from unmatched system generations without confirming compatibility with manufacturer documentation.

Technical Specifications

• System Capacity: 36000 BTU/h total
• Number of Zones: 3
• Indoor Unit Capacity (each): 12000 BTU/h
• Line Set Length (each): 25 feet
• Kit Net Weight: 244.64 pounds
• Kit Gross Weight: 318.88 pounds
• UPC: 52575023410

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980441
