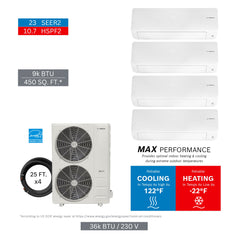

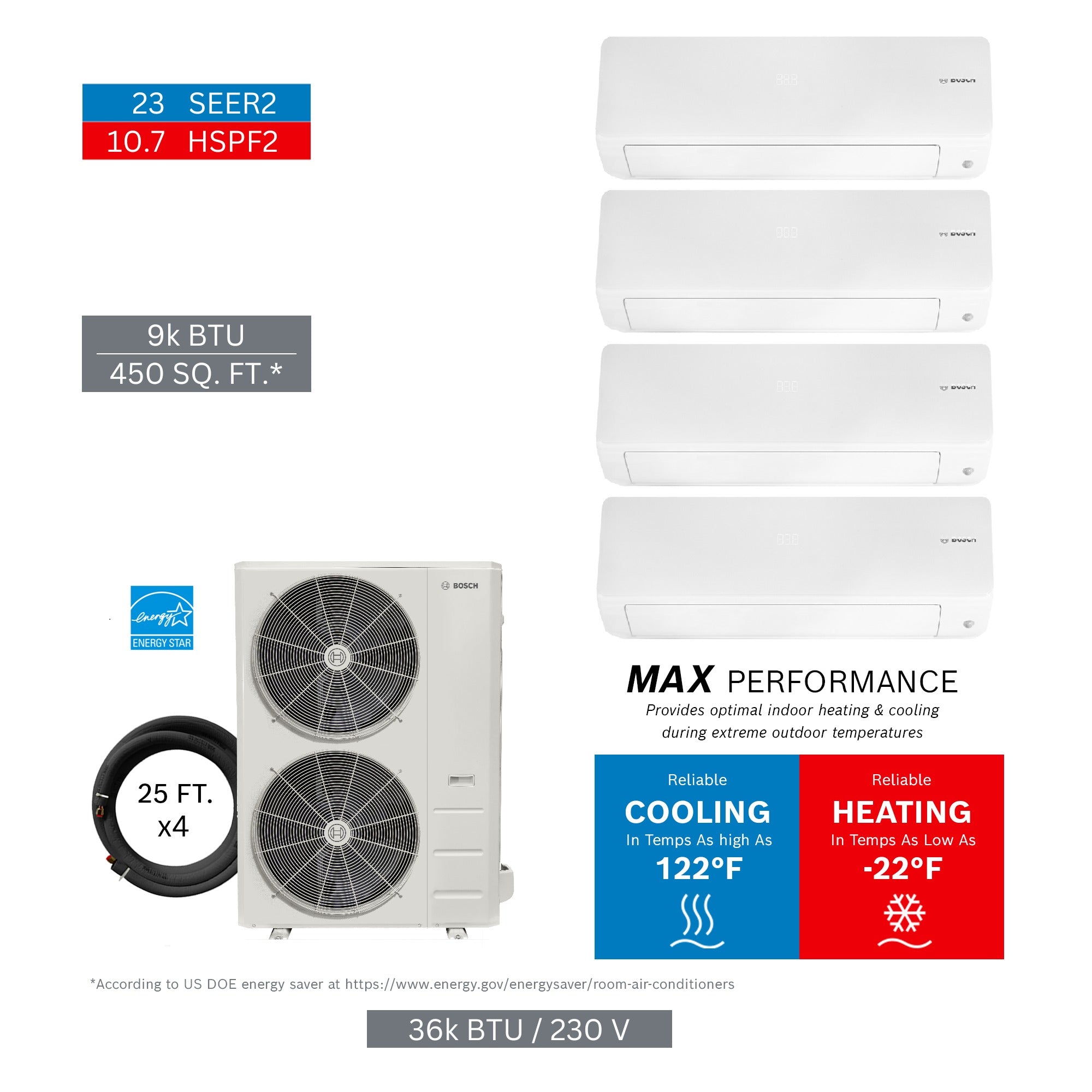

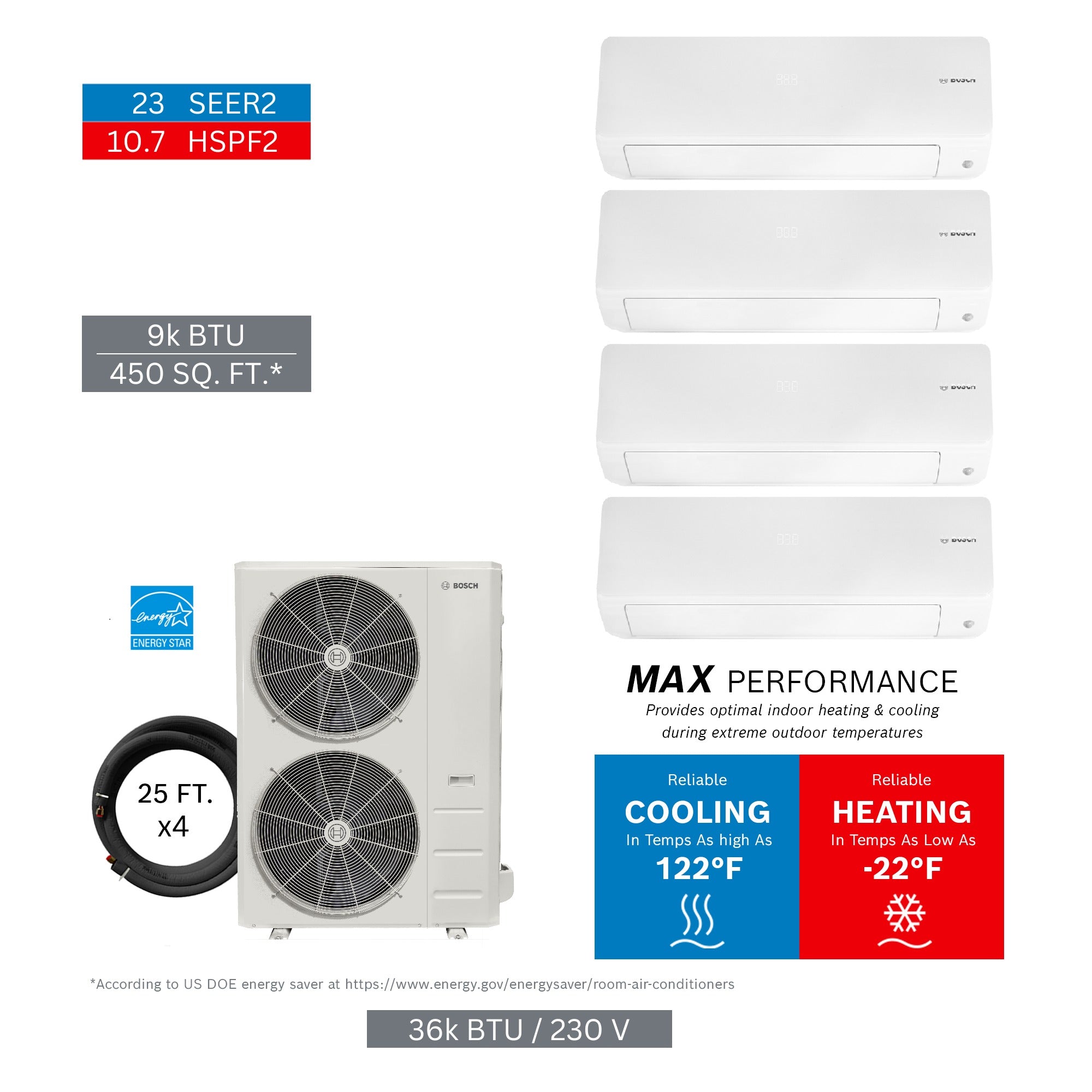

Bosch 8733980440 36000 Btu 4-zone Mini-split Kit

Product Description

The BOSCH 8733980440 is a complete 4-zone ductless mini-split system kit rated at 36000 BTU/h, designed for multi-zone heating and cooling applications in residential and light commercial settings. The kit ships with all major components needed for a multi-zone installation: four indoor air handler units and one outdoor condensing unit, along with four 25-foot line sets. Licensed HVAC technicians install this system as a complete package, reducing sourcing time on multi-component mini-split projects. The kit net weight is 243.73 pounds.

This system is suited for residential applications where multiple rooms or zones require independent temperature control without ductwork. Four 9000 BTU/h indoor units provide flexible placement across bedrooms, living areas, or office spaces served by a single outdoor unit. The 25-foot line sets included in the kit are pre-matched for use with the specified indoor and outdoor units in this configuration, making it appropriate for straightforward multi-zone retrofit and new-construction installs.

Key Features

• Complete 4-zone kit: includes four indoor units, one outdoor unit, and four line sets
• 36000 BTU/h total system capacity with four 9000 BTU/h indoor air handlers
• 25-foot line sets included per zone, reducing field fabrication requirements
• Pre-matched components: IDU 8733962672 x4, ODU 8733962701 x1, Line Set 8733951010 x4
• Ductless design supports independent zone control without existing ductwork

Compatibility

This kit contains BOSCH components IDU 8733962672 (quantity 4), ODU 8733962701 (quantity 1), and Line Set 8733951010 (quantity 4), as specified by the manufacturer for this 4-zone 36000 BTU/h MZ MAX G4 system configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Before beginning work, disconnect all electrical power to the system at the breaker and follow local mechanical and electrical codes. Line set routing, refrigerant evacuation, and commissioning procedures must follow the manufacturer installation manual supplied with the equipment. Do not mix components from other system families or substitute line sets of different lengths without verifying manufacturer specifications.

Technical Specifications

• System Capacity: 36000 BTU/h
• Number of Zones: 4
• Indoor Unit Capacity (each): 9000 BTU/h
• Line Set Length (per zone): 25 feet
• Indoor Unit Part Number: 8733962672 (quantity 4)
• Outdoor Unit Part Number: 8733962701 (quantity 1)
• Line Set Part Number: 8733951010 (quantity 4)
• Kit Net Weight: 243.73 pounds
• Kit Gross Weight: 318.19 pounds
• UPC: 52575023403

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980440
