Bosch 8733980433 27000 Btu 3-zone Mini Split Kit

Product Description

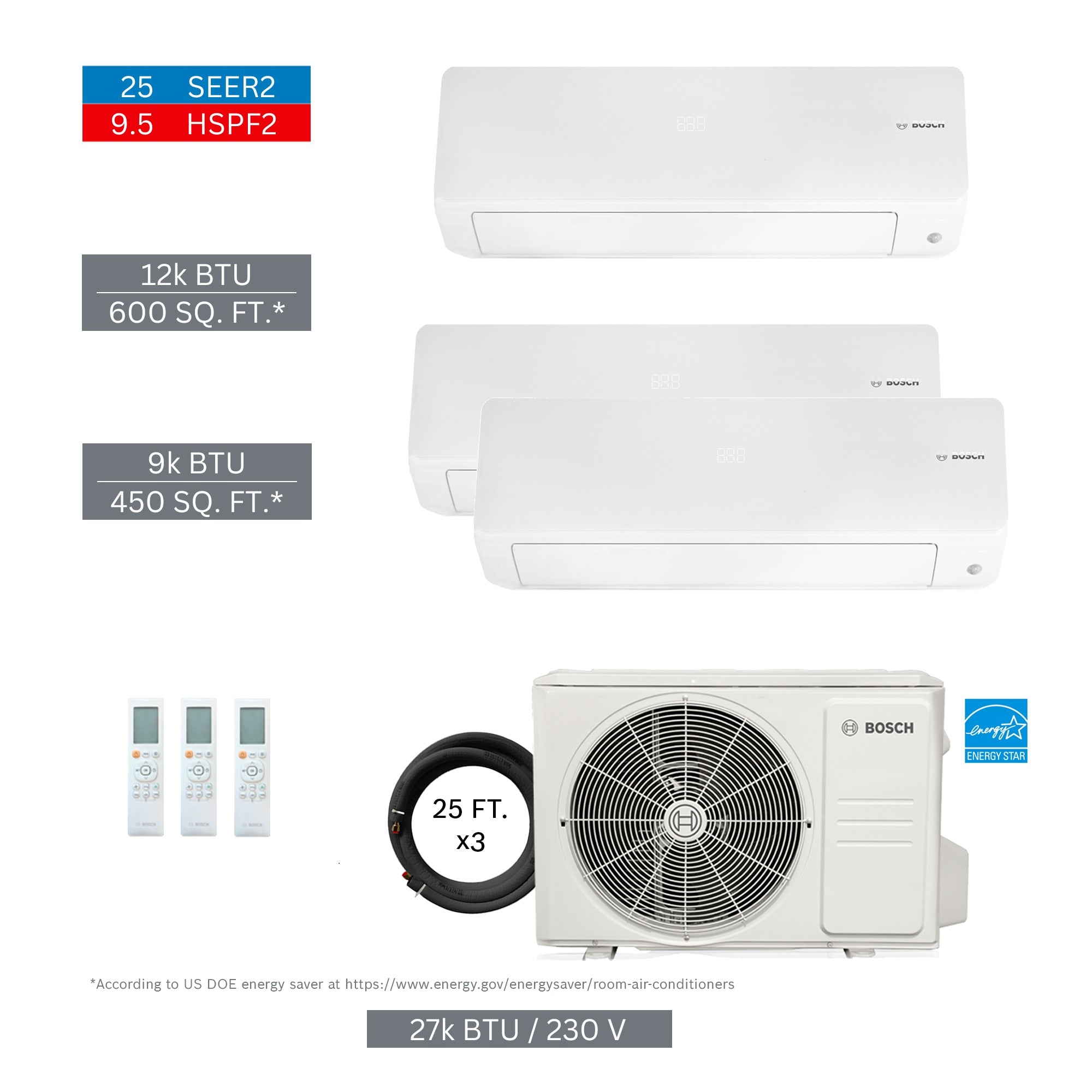

The BOSCH 8733980433 is a complete 3-zone mini split system kit rated at 27,000 BTU total cooling and heating capacity. The kit includes all major components needed to configure a multi-zone ductless installation: two 9,000 BTU indoor units, one 12,000 BTU indoor unit, one outdoor condensing unit, and the corresponding 25-foot line sets for each zone. This assembly is sized for residential or light-commercial applications where multiple rooms or zones require independent temperature control. HVAC professionals install this type of system when zoning flexibility and energy efficiency are priorities over ducted alternatives.

This kit is designed for 3-zone ductless mini split installations. The two 9,000 BTU indoor units suit smaller rooms, bedrooms, or offices, while the 12,000 BTU indoor unit is appropriate for medium-sized living spaces or open areas. Each zone operates independently, allowing occupants to set different temperatures per space. The included 25-foot line sets are sized for standard residential room-to-outdoor-unit runs. This configuration is commonly used in residential additions, multi-room retrofits, and light-commercial spaces where duct installation is not practical.

Key Features

• 27,000 BTU total system capacity across 3 independently controlled zones
• Includes two 9,000 BTU indoor units (IDU 8733962672) and one 12,000 BTU indoor unit (IDU 8733962673)
• Outdoor condensing unit (ODU 8733962696) supports all three zones from a single exterior installation point
• Two 25-foot line sets (8733951010) paired with 9k units and one 25-foot line set (8733951011) for the 12k unit included in kit
• All-in-one kit reduces sourcing time by bundling matched indoor units, outdoor unit, and line sets together

Compatibility

This kit includes BOSCH components IDU 8733962672 x2, IDU 8733962673 x1, ODU 8733962696 x1, LineSet 8733951010 x2, and LineSet 8733951011 x1. Designed as a matched multi-zone ductless system; verify refrigerant line sizing, electrical service requirements, and local code compliance before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 refrigerant handling certification. Power down all electrical circuits at the breaker panel before working on any component. Each zone requires proper line set routing, refrigerant evacuation, and leak testing before startup; do not operate the system without completing a full vacuum procedure on all lines. Local mechanical and electrical codes govern mounting height, disconnect requirements, and condensate drainage — consult applicable codes before beginning work.

Technical Specifications

• Total System Capacity: 27,000 BTU
• Number of Zones: 3
• Zone 1 Indoor Unit Capacity: 9,000 BTU (qty 2)
• Zone 2 Indoor Unit Capacity: 12,000 BTU (qty 1)
• Line Set Length: 25 feet per zone
• Kit Net Weight: 203.54 pounds
• Kit Gross Weight: 262.34 pounds
• UPC: 52575023335

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980433
