Bosch 8733980432 27000 Btu 2-zone Mini Split System

Product Description

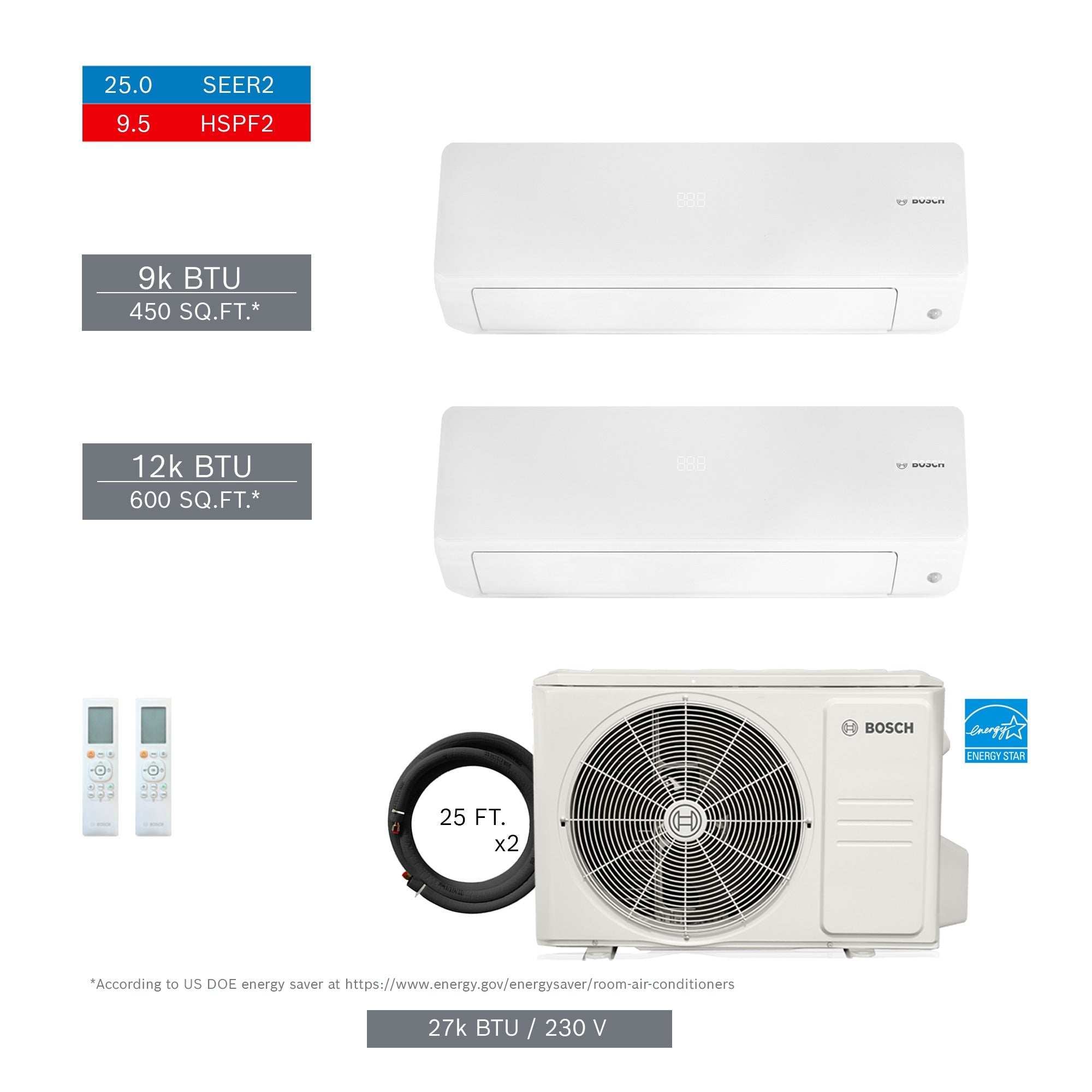

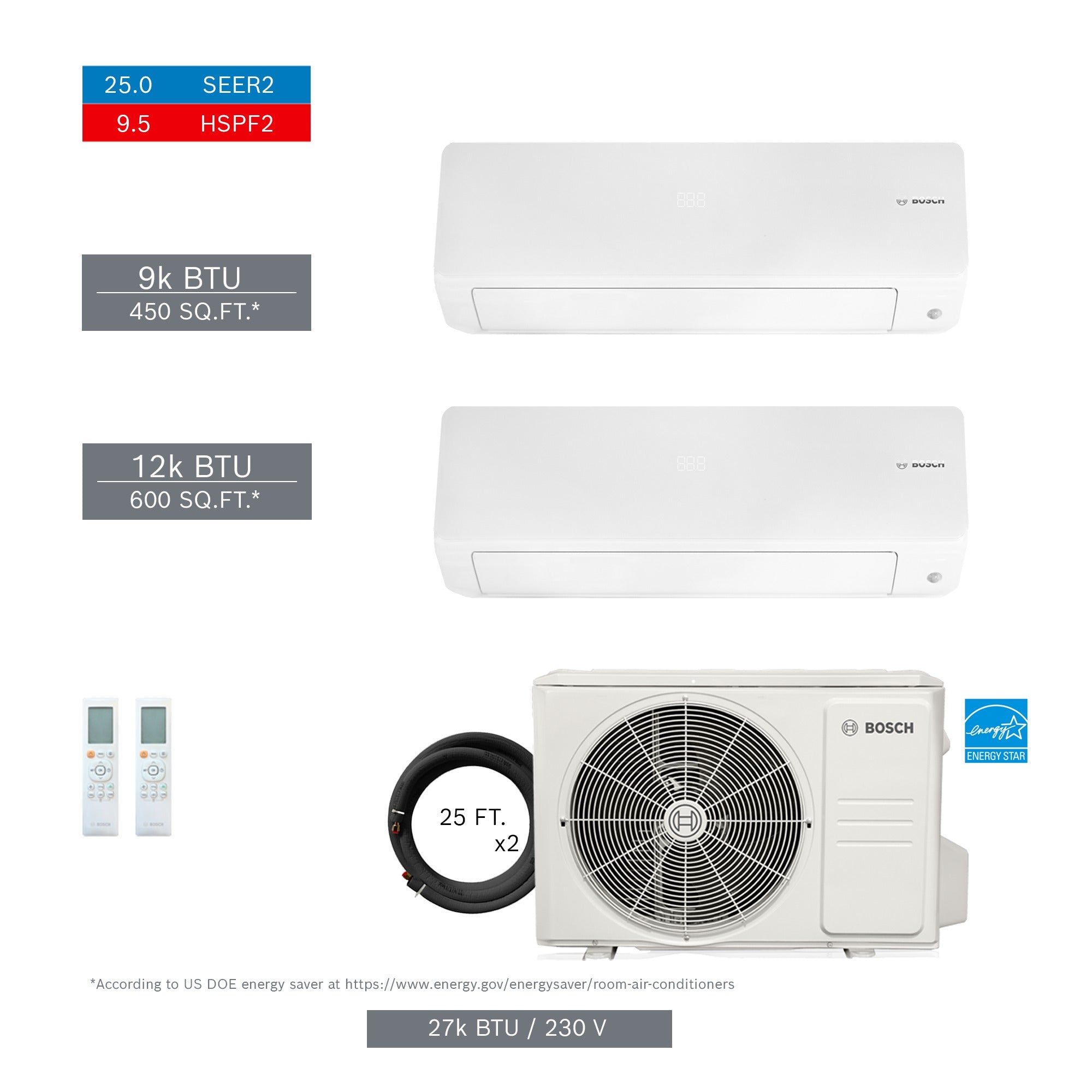

The BOSCH 8733980432 is a 27,000 BTU multi-zone ductless mini split system configured for two indoor zones. The kit includes one 9,000 BTU indoor air handler, one 12,000 BTU indoor air handler, one outdoor condensing unit, and two 25-foot pre-charged line sets. This is a complete, matched refrigerant system designed for simultaneous climate control in two separate rooms or spaces. Licensed HVAC technicians install this system in residential and light commercial applications where ducted distribution is not practical or desired.

This system is suited for residential retrofits, room additions, garages, sunrooms, and light commercial spaces requiring independent zone control. The two-zone configuration allows each indoor unit to operate at its own setpoint, reducing energy waste in unoccupied areas. The included line sets simplify staging and reduce job-site material coordination. All components are factory-matched for this kit configuration.

Key Features

• Complete 2-zone kit — outdoor unit, two indoor air handlers, and two line sets included
• 27,000 BTU total system capacity split across 9,000 BTU and 12,000 BTU zones
• 25-foot line sets pre-matched to each indoor unit for straightforward installation
• Factory-matched components eliminate compatibility guesswork
• Ductless design allows installation in spaces without existing duct infrastructure

Compatibility

This kit includes indoor unit 8733962672, indoor unit 8733962673, outdoor unit 8733962696, line set 8733951010, and line set 8733951011 as factory-matched components. All parts are engineered to operate together as a complete BOSCH multi-zone system.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Disconnect and lock out all electrical power before working on any component. Follow local mechanical and electrical codes for line set routing, refrigerant line insulation, condensate drainage, and outdoor unit placement and clearances. Do not mix components from unmatched system configurations.

Technical Specifications

• Total System Capacity: 27,000 BTU/h
• Zone 1 Capacity: 9,000 BTU/h
• Zone 2 Capacity: 12,000 BTU/h
• Number of Zones: 2
• Line Set Length: 25 feet per zone
• Kit Net Weight: 203.54 pounds
• Kit Gross Weight: 262.34 pounds
• UPC: 52575023328

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980432
