Bosch 8733980426 Mini Split Kit 27000 Btu 2 Zone

Product Description

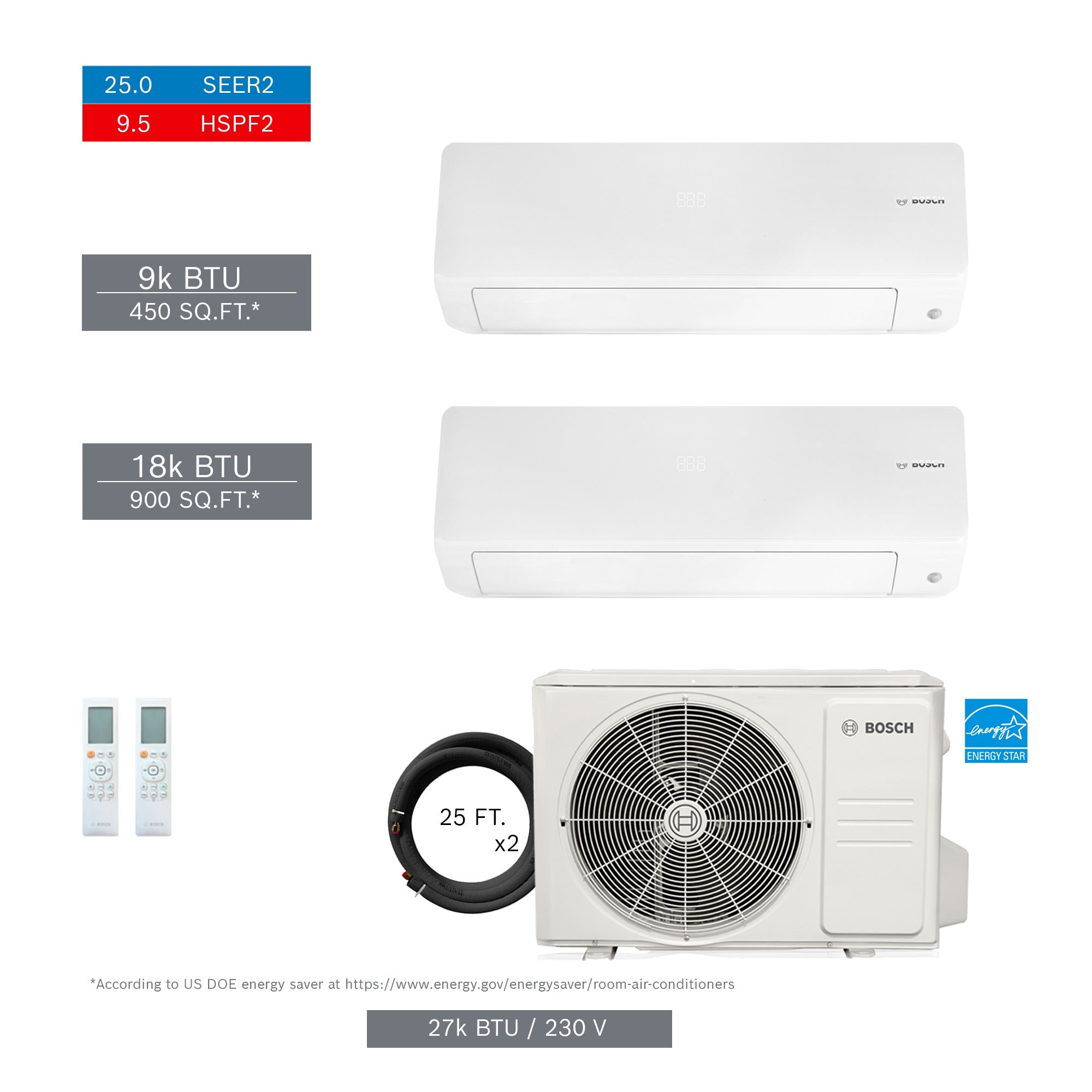

The BOSCH 8733980426 is a two-zone mini split system kit rated at 27000 BTU/h total cooling and heating capacity. This kit bundles the outdoor unit, two indoor air handlers, and two pre-cut line sets into a single package, simplifying procurement for multi-zone residential or light commercial installations. The kit ships at a net weight of 207.95 pounds. HVAC technicians handling multi-zone ductless installs will find all primary components included, reducing separate part sourcing and minimizing job-site delays.

This system is designed for two-zone ductless mini split applications where independent comfort control is needed in separate rooms or areas. The kit includes one 9000 BTU indoor unit and one 18000 BTU indoor unit, along with matching line sets to reach the outdoor unit. The 25-foot line sets support typical single-story or two-story residential layouts. Both indoor units connect to the single 27000 BTU outdoor condensing unit included in this package.

Key Features

• Complete two-zone kit — outdoor unit, two indoor units, and two line sets included
• Zone 1 indoor unit rated at 9000 BTU/h
• Zone 2 indoor unit rated at 18000 BTU/h
• 25-foot line sets for each zone included in the kit
• Total system capacity of 27000 BTU/h
• Kit net weight of 207.95 pounds; gross weight of 269.62 pounds

Compatibility

This kit includes BOSCH component part numbers IDU 8733962672 (9000 BTU indoor unit), IDU 8733962674 (18000 BTU indoor unit), ODU 8733962696 (outdoor unit), LineSet 8733951010, and LineSet 8733951011. All components are matched and intended to be installed together as a complete two-zone mini split system.

Installation Notes

Installation of a mini split system must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power before handling any system components. Line set routing, electrical connections, and refrigerant handling must comply with local mechanical codes and NEC requirements. Do not mix components from this kit with unmatched indoor or outdoor units not specified for this system configuration.

Technical Specifications

• Total System Capacity: 27000 BTU/h
• Number of Zones: 2
• Zone 1 Indoor Unit Capacity: 9000 BTU/h
• Zone 2 Indoor Unit Capacity: 18000 BTU/h
• Line Set Length: 25 feet per zone
• Kit Net Weight: 207.95 pounds
• Kit Gross Weight: 269.62 pounds
• UPC: 52575023267

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980426
