Bosch 8733980424 Mini Split 27000 Btu 3 Zone System

Product Description

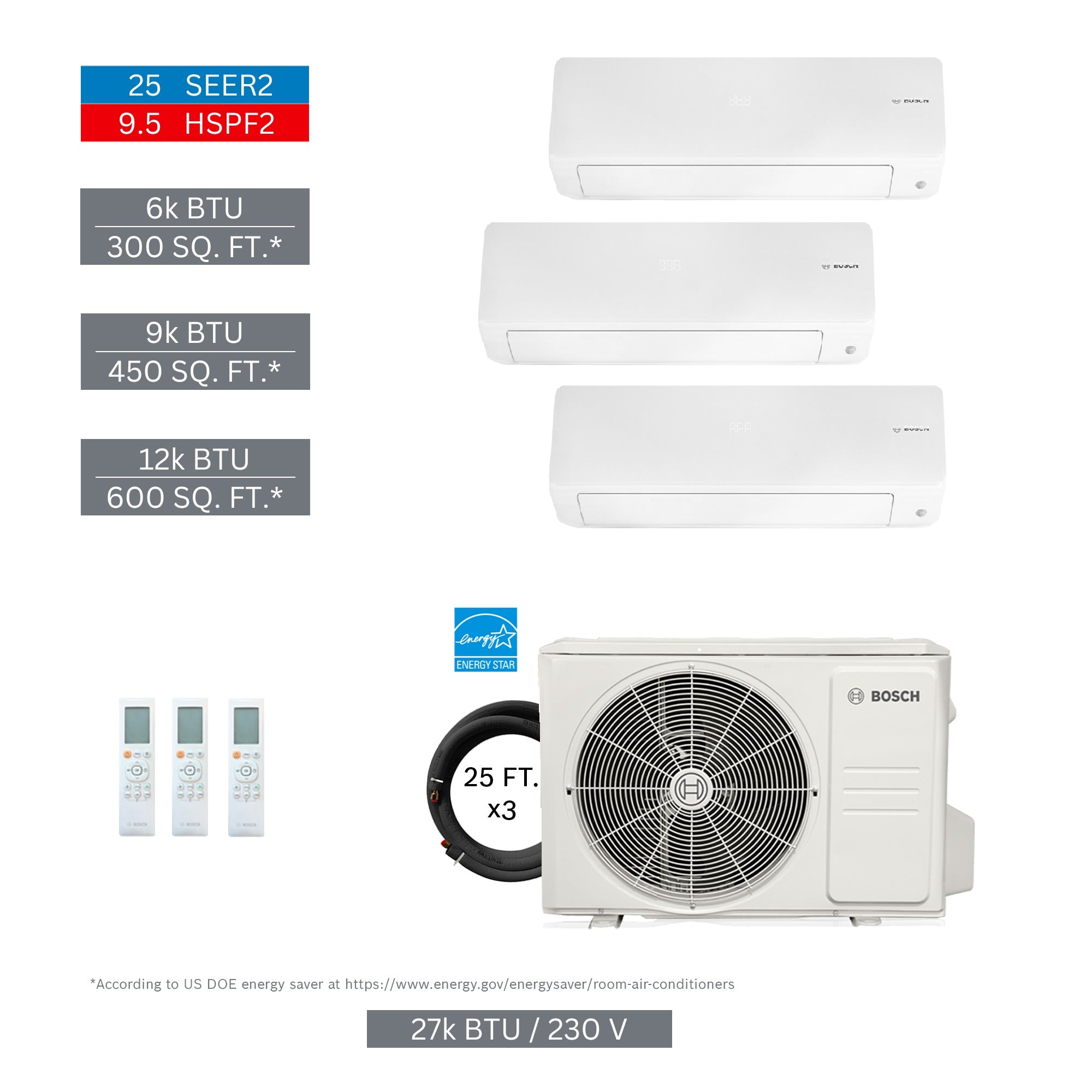

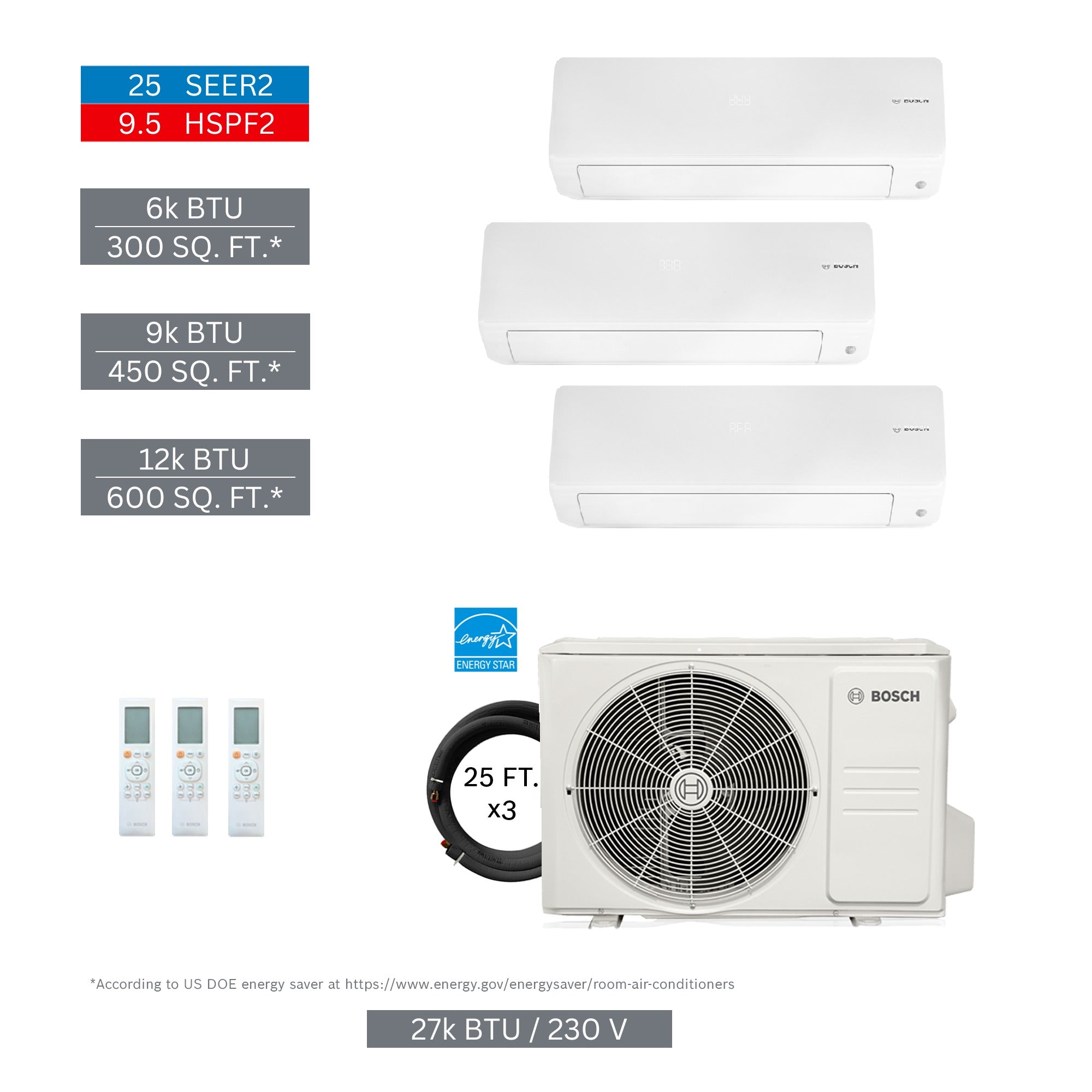

The BOSCH 8733980424 is a multi-zone ductless mini split system rated at 27,000 BTU/h, configured for three independent zones. The kit includes one outdoor condensing unit and three indoor air handlers sized at 6,000 BTU/h, 9,000 BTU/h, and 12,000 BTU/h, along with pre-charged or pre-cut line sets for each zone. This system is designed for residential and light commercial applications where multiple rooms or spaces require independent temperature control from a single outdoor unit. Installation is performed by licensed HVAC technicians with mini split experience and EPA 608 certification for refrigerant handling.

This kit is suited for installations in homes, apartments, offices, or multi-room additions where running ductwork is not practical. Each indoor unit operates independently, allowing occupants in separate zones to set different temperatures. The included line sets simplify the rough-in process. The three indoor units cover a range of room sizes, making this a flexible solution for mixed-load zoning scenarios. All major components ship together as a single kit, reducing sourcing time on multi-piece jobs.

Key Features

• 27,000 BTU/h total system capacity across three zones
• Three indoor air handlers: 6,000 BTU/h (qty 1), 9,000 BTU/h (qty 1), and 12,000 BTU/h (qty 1)
• Includes outdoor condensing unit (part 8733962696) and all three indoor units as a complete kit
• Line sets included for all three zones (two of part 8733951010, one of part 8733951011)
• Complete kit reduces multi-vendor sourcing for three-zone mini split installations
• Kit net weight of 226.91 pounds allows for advance rigging and staging planning

Compatibility

This kit is configured with BOSCH indoor units 8733962676, 8733962672, and 8733962673 paired with outdoor unit 8733962696. These components are matched at the factory as part of this multi-zone system kit. Do not substitute individual components without verifying system compatibility with BOSCH engineering documentation.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Shut off all electrical power to the installation area before mounting indoor or outdoor units, and follow all local mechanical and electrical codes. Line sets should be routed and secured per BOSCH installation instructions and applicable refrigerant piping guidelines. Do not operate the system without verifying refrigerant charge and confirming all electrical connections meet local code requirements.

Technical Specifications

• System Capacity: 27,000 BTU/h
• Number of Zones: 3
• Indoor Unit 1 (8733962676): 6,000 BTU/h
• Indoor Unit 2 (8733962672): 9,000 BTU/h
• Indoor Unit 3 (8733962673): 12,000 BTU/h
• Outdoor Unit: 8733962696
• Line Set 1 (8733951010): qty 2
• Line Set 2 (8733951011): qty 1
• Kit Net Weight: 226.91 pounds
• Kit Gross Weight: 292.32 pounds
• UPC: 52575023243

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980424
