Bosch 8733980416 48K Btu 2-zone Mini Split Kit

Product Description

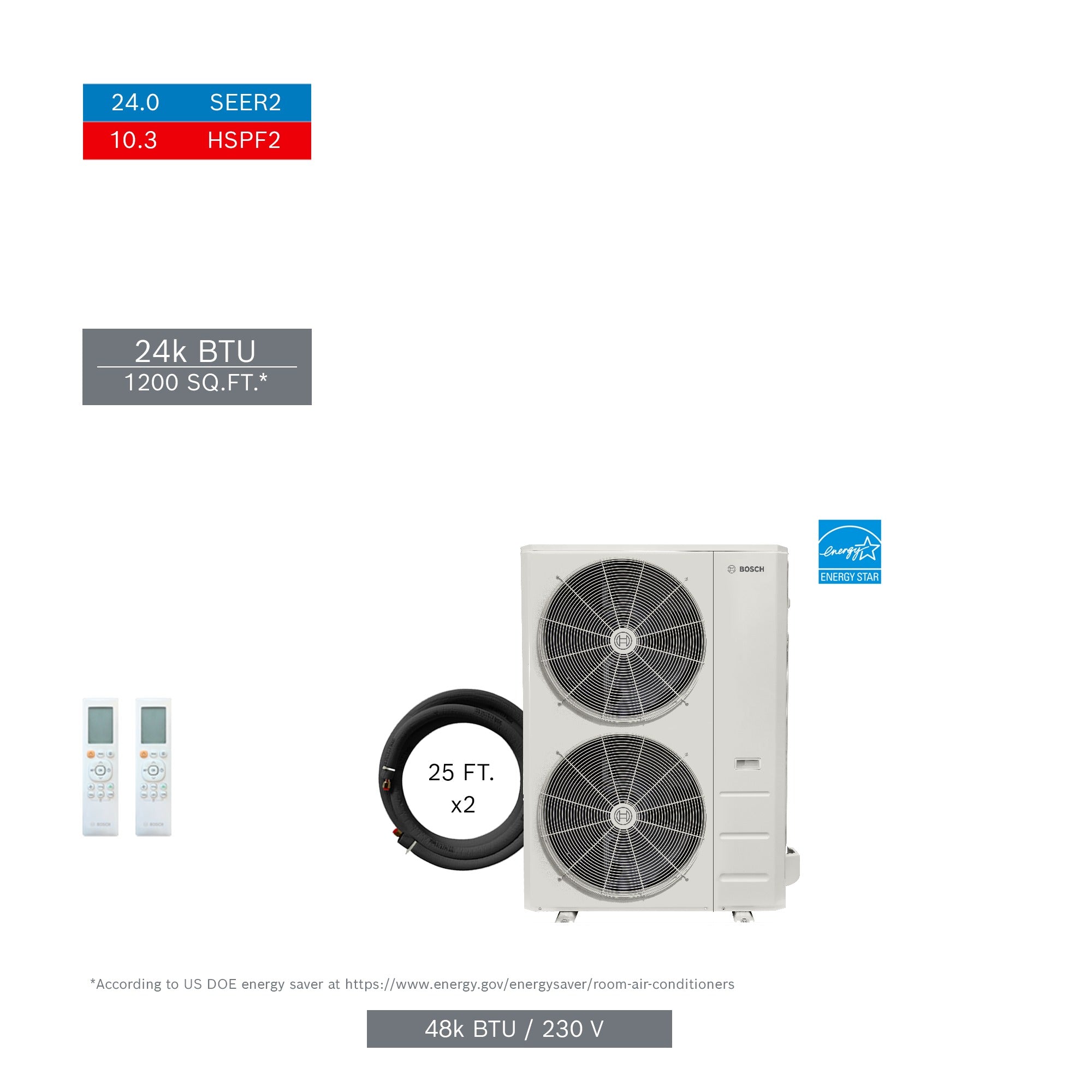

The BOSCH 8733980416 is a complete 2-zone mini split system kit rated at 48000 BTU, designed for residential and light commercial ductless heating and cooling applications. The kit ships with all core components needed for a dual-zone installation, including two indoor air handler units and one outdoor condensing unit, along with two pre-measured 25-foot line sets. Licensed HVAC technicians install this type of system when zoned comfort control is required without existing ductwork. At a net weight of 278.45 pounds, the kit is substantial and typically requires a two-person crew for safe handling and mounting.

This kit is suited for 2-zone ductless installations in residential homes, apartments, offices, or supplemental cooling and heating scenarios where independent room control is a priority. Each zone is served by a 24000 BTU indoor unit, allowing balanced load distribution across two separate spaces. The included 25-foot line sets cover standard room-to-outdoor-unit distances in typical single-story or split-level installations. The Generation 4 platform designation indicates this kit belongs to the current product generation in the BOSCH mini split lineup.

Key Features

• Complete 2-zone kit — outdoor unit, two indoor units, and two line sets included
• 48000 BTU total system capacity across two zones
• Each zone served by a 24000 BTU indoor air handler (model 8733962675)
• Outdoor condensing unit model 8733962698 supports both zones from a single installation point
• Two 25-foot line sets (model 8733951015) pre-matched to the system components
• Generation 4 platform for current-generation component compatibility

Compatibility

This kit includes indoor unit 8733962675 (quantity 2), outdoor unit 8733962698 (quantity 1), and line set 8733951015 (quantity 2) as factory-matched components. All parts are pre-validated to work together as a complete system.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician due to refrigerant handling requirements. Power to all circuits must be confirmed off before mounting or wiring any component. The outdoor unit requires a level, structurally sound mounting surface with adequate clearance per the manufacturer installation manual. Do not braze, flare, or charge the system until all mechanical connections and electrical rough-in are verified complete.

Technical Specifications

• System Capacity: 48000 BTU
• Number of Zones: 2
• Indoor Unit Capacity (each): 24000 BTU
• Line Set Length (each): 25 feet
• Kit Net Weight: 278.45 pounds
• Kit Gross Weight: 357.55 pounds
• Indoor Unit Part Number: 8733962675 (x2)
• Outdoor Unit Part Number: 8733962698 (x1)
• Line Set Part Number: 8733951015 (x2)
• UPC: 52575023168

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980416
