Bosch 8733980413 48K Btu 5-zone Mini Split System

Product Description

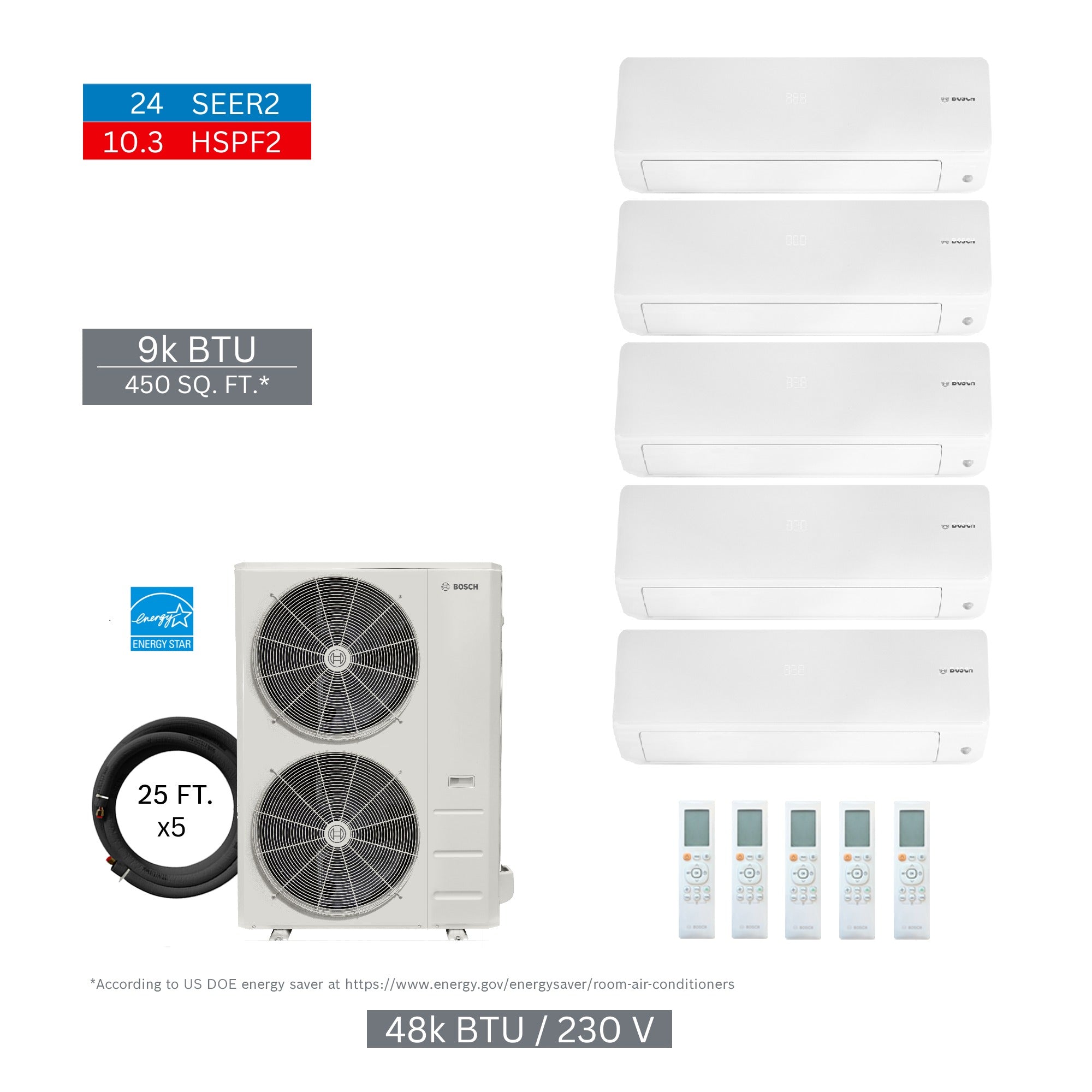

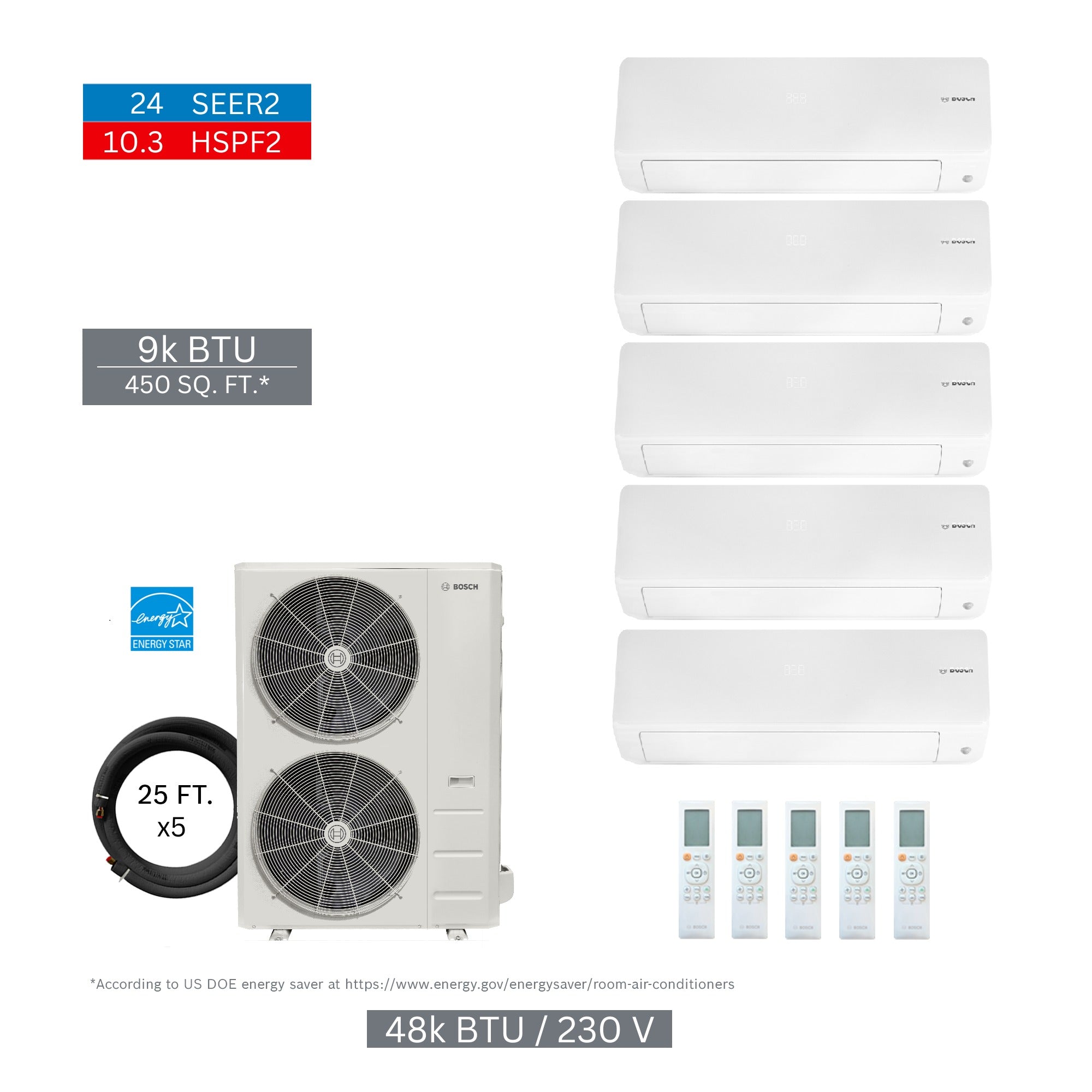

The BOSCH 8733980413 is a 5-zone multi-zone mini split system rated at 48000 BTU/h, designed for residential and light-commercial ductless heating and cooling applications. The kit includes five 9000 BTU/h indoor units, one outdoor unit, and five 25-foot line sets, providing everything needed to condition multiple rooms or zones from a single outdoor condensing unit. Licensed HVAC technicians install this system as a complete ductless solution where zoned comfort control and independent room operation are required. The kit ships as a matched assembly with indoor, outdoor, and refrigerant line components factory-specified together.

This system is suited for residential multi-room installations and light-commercial spaces requiring independent zone control across up to five areas. Each of the five indoor units operates at 9000 BTU/h, making the kit well-matched for bedrooms, offices, or similarly sized spaces. The 25-foot line sets included with each indoor unit cover typical wall-penetration distances in standard residential construction. The matched outdoor unit is designed to work as an integrated system with the included indoor air handlers.

Key Features

• Complete 5-zone kit — outdoor unit, five indoor units, and five line sets included
• 48000 BTU/h total system capacity across five 9000 BTU/h indoor units
• 25-foot line sets included per zone for standard residential reach
• Factory-matched components for simplified system design and commissioning
• Kit net weight 253.87 pounds; kit gross weight 327.67 pounds

Compatibility

This kit contains indoor unit 8733962672 (quantity 5), outdoor unit 8733962698 (quantity 1), and line set 8733951010 (quantity 5) as factory-matched components. Consult BOSCH documentation to verify compatibility with any supplemental controls or accessories not included in this kit.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Power down all electrical circuits to the installation area before beginning any wiring or mounting work. Line set connections and refrigerant charging must follow the manufacturer specifications and all applicable local mechanical codes. Do not mix matched indoor or outdoor components with units from other kits or system families without confirming compatibility with the manufacturer.

Technical Specifications

• System Capacity: 48000 BTU/h
• Number of Zones: 5
• Indoor Unit Capacity (each): 9000 BTU/h
• Line Set Length (per zone): 25 feet
• Kit Net Weight: 253.87 pounds
• Kit Gross Weight: 327.67 pounds
• Indoor Unit Part Number: 8733962672 (qty 5)
• Outdoor Unit Part Number: 8733962698 (qty 1)
• Line Set Part Number: 8733951010 (qty 5)
• UPC: 52575023137

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980413
