Bosch 8733980411 24000 Btu Mini Split System 230V

Product Description

The BOSCH 8733980411 is a single-zone ductless mini split system rated at 24,000 BTU/h, designed for residential and light-commercial heating and cooling applications. Operating on 230 volts, this G4-generation kit delivers a SEER2 rating of 21.0 and an EER2 of 13.0, placing it in the high-efficiency tier for ductless systems. It also carries an HSPF2 of 13.5 and a COP of 3.42 at 47 degrees F, confirming strong heating performance in moderate climates. The kit ships as a matched system including an indoor unit, outdoor unit, and a 25-foot line set, making it a complete solution for licensed HVAC contractors performing a new installation or a full system replacement.

This system is suited for single-room or single-zone conditioning in residential settings such as additions, garages, sunrooms, and primary living spaces, as well as small commercial suites. The included 25-foot line set covers typical wall-separation distances without requiring a field-supplied refrigerant line. The G4 platform is engineered for maximum-performance efficiency, and this 24,000 BTU/h capacity handles spaces that standard window units or zone-damper systems struggle to condition effectively. Installation requires a licensed HVAC technician with EPA Section 608 certification for refrigerant handling.

Key Features

• 24,000 BTU/h capacity for single-zone heating and cooling
• SEER2 21.0 and EER2 13.0 for high-efficiency cooling performance
• HSPF2 13.5 and COP 3.42 at 47 degrees F for efficient cold-weather heating
• Energy Star certified

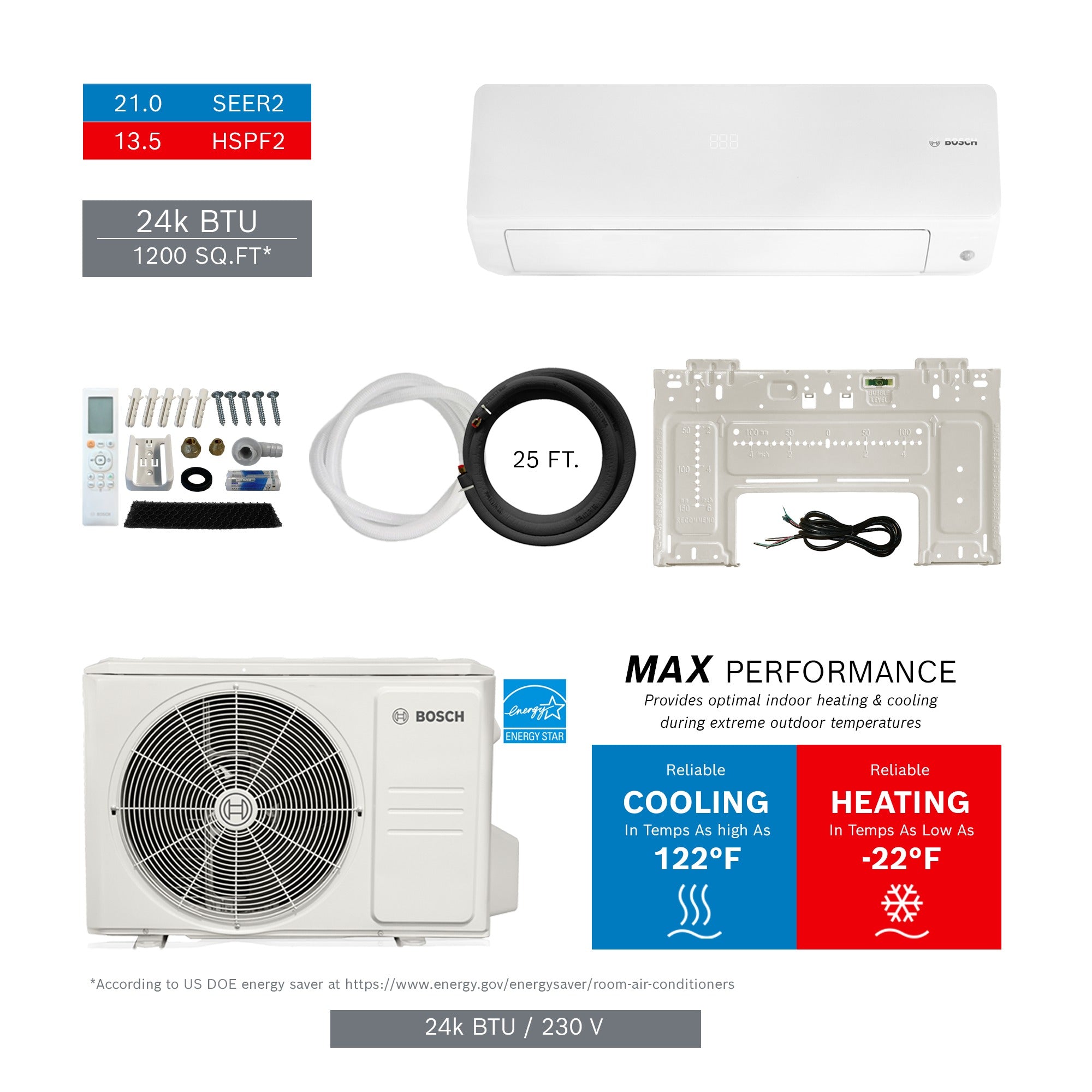

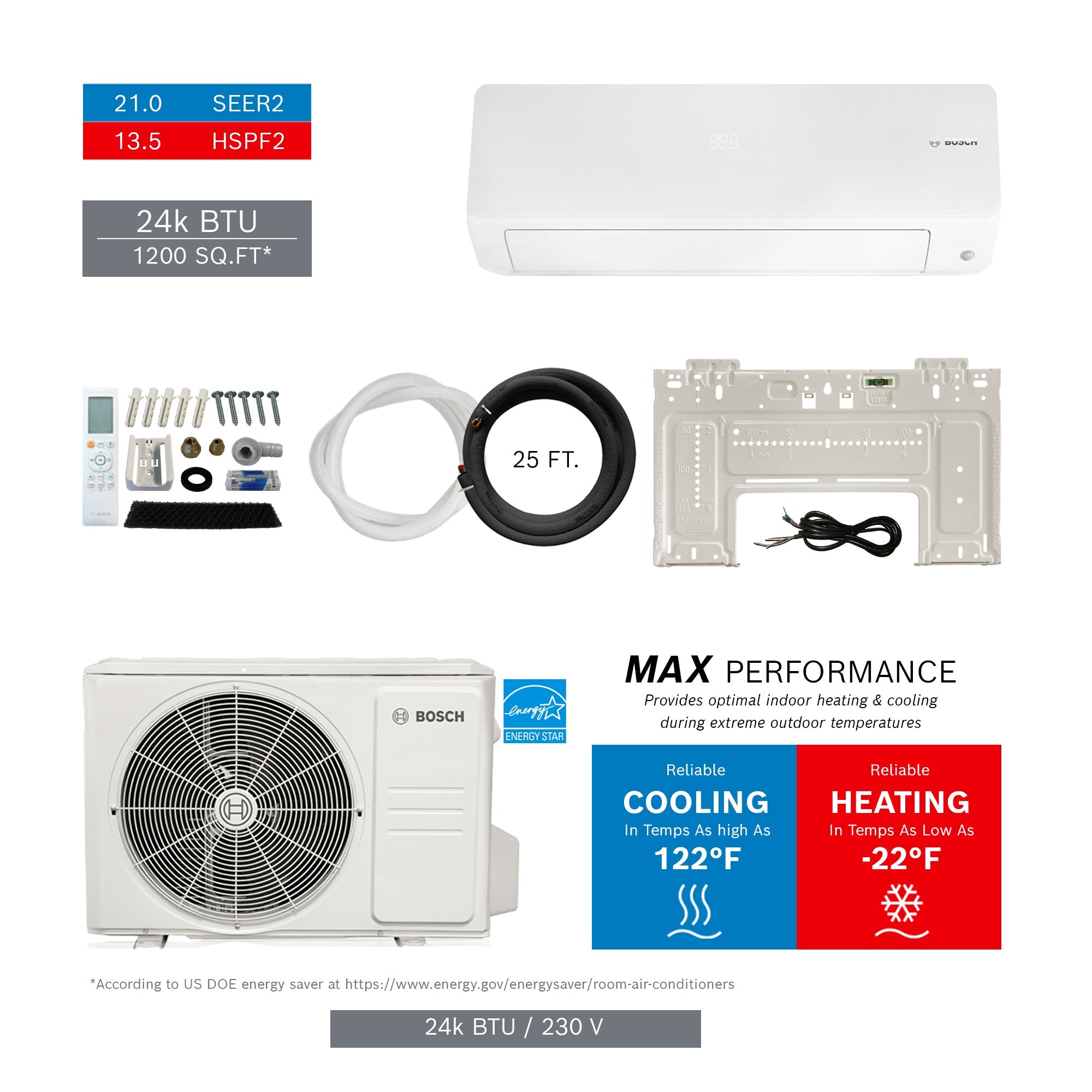

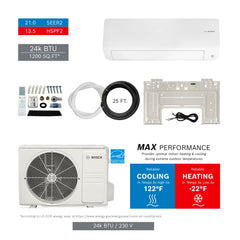

• Complete kit includes indoor unit (8733962675), outdoor unit (8733962691), and 25-foot line set (8733951015)
• 230-volt operation suitable for dedicated residential and light-commercial circuits

Compatibility

This kit is a matched system assembly. Component part numbers included are indoor unit 8733962675, outdoor unit 8733962691, and line set 8733951015. Do not mix components with units outside this matched configuration without verifying AHRI-certified system pairings.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification for refrigerant handling. Before beginning work, disconnect and lock out all electrical power at the breaker serving the install location. The outdoor unit requires a dedicated circuit sized to the system nameplate ampacity per NEC Article 440 requirements. Follow the manufacturer installation manual for line set routing, flaring or brazing procedures, and refrigerant leak testing before system startup.

Technical Specifications

• Capacity: 24,000 BTU/h
• Voltage: 230 volts
• SEER2: 21.0
• EER2: 13.0
• HSPF2: 13.5
• COP at 47 degrees F: 3.42
• Energy Star Certified: Yes
• Line Set Length: 25 feet
• Kit Net Weight: 186.74 pounds
• Kit Gross Weight: 244.67 pounds
• UPC: 52575023113
• AHRI Listed: Yes

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980411
