Bosch 8733980405 9000 Btu Single Zone Mini Split 230V

Product Description

The BOSCH 8733980405 is a complete single-zone ductless mini split system kit rated at 9000 BTU/h, designed for high-efficiency heating and cooling in residential and light commercial applications. Operating on 230 volts, this system achieves a SEER2 rating of 27.4 and an EER2 of 15.2, placing it well above standard efficiency thresholds. The kit includes an indoor unit, outdoor unit, and a 25-foot line set, giving HVAC technicians everything needed for a complete installation. An HSPF2 of 12.5 and a COP at 47 degrees F of 3.76 confirm strong heating performance in moderate climates. Energy Star certification is included.

This system is suited for single-zone conditioning in spaces such as bedrooms, additions, server rooms, garages, or any area without existing ductwork. The 25-foot pre-selected line set simplifies the installation layout for typical wall-penetration setups. Licensed HVAC technicians handling ductless system installations will find this kit reduces sourcing time by bundling all three primary components. The 230-volt configuration is standard for mini split systems in North American residential and light commercial settings.

Key Features

• 9000 BTU/h capacity for single-zone residential or light commercial use
• SEER2 27.4 and EER2 15.2 for high cooling efficiency
• HSPF2 12.5 and COP 3.76 at 47 degrees F for reliable heating performance
• Energy Star certified

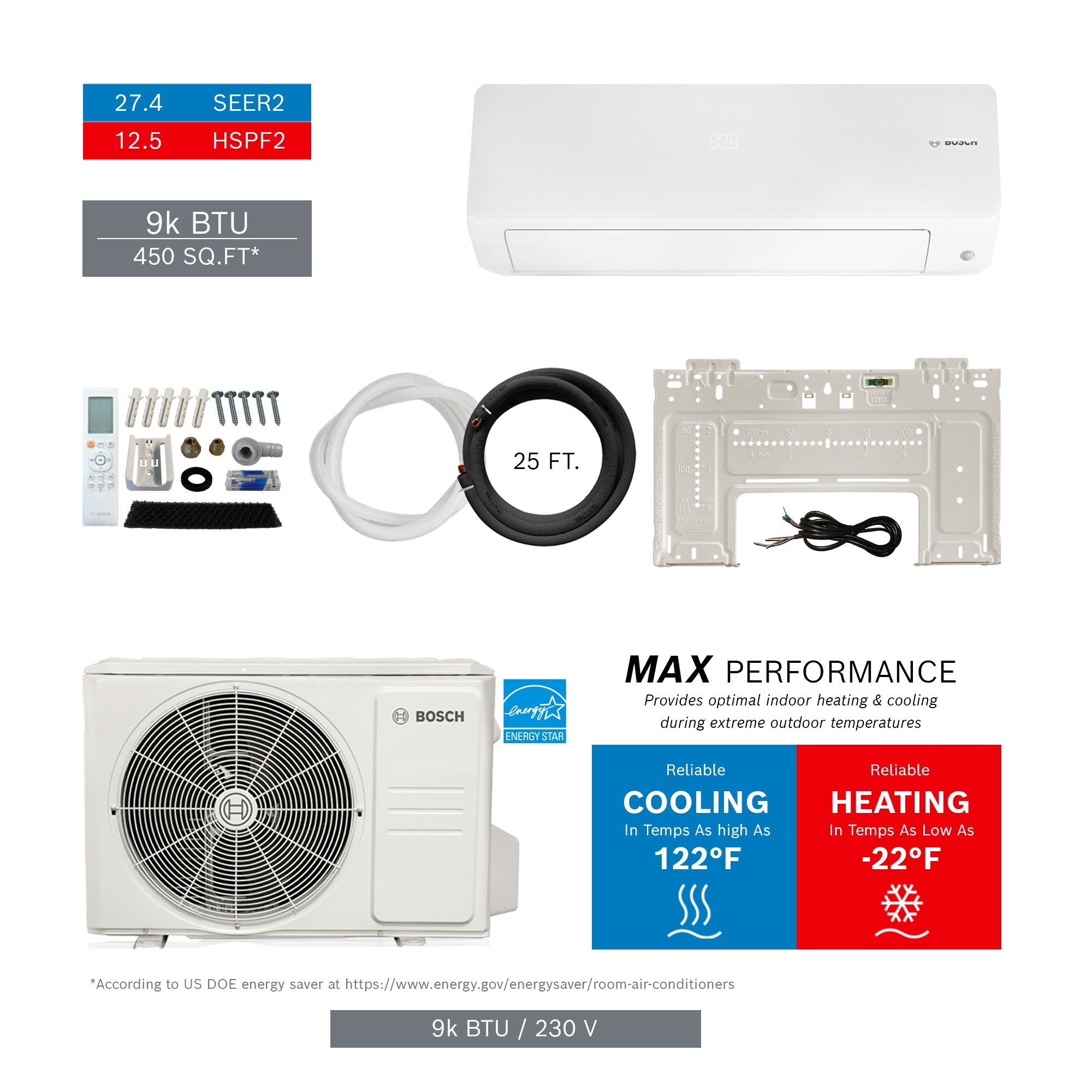

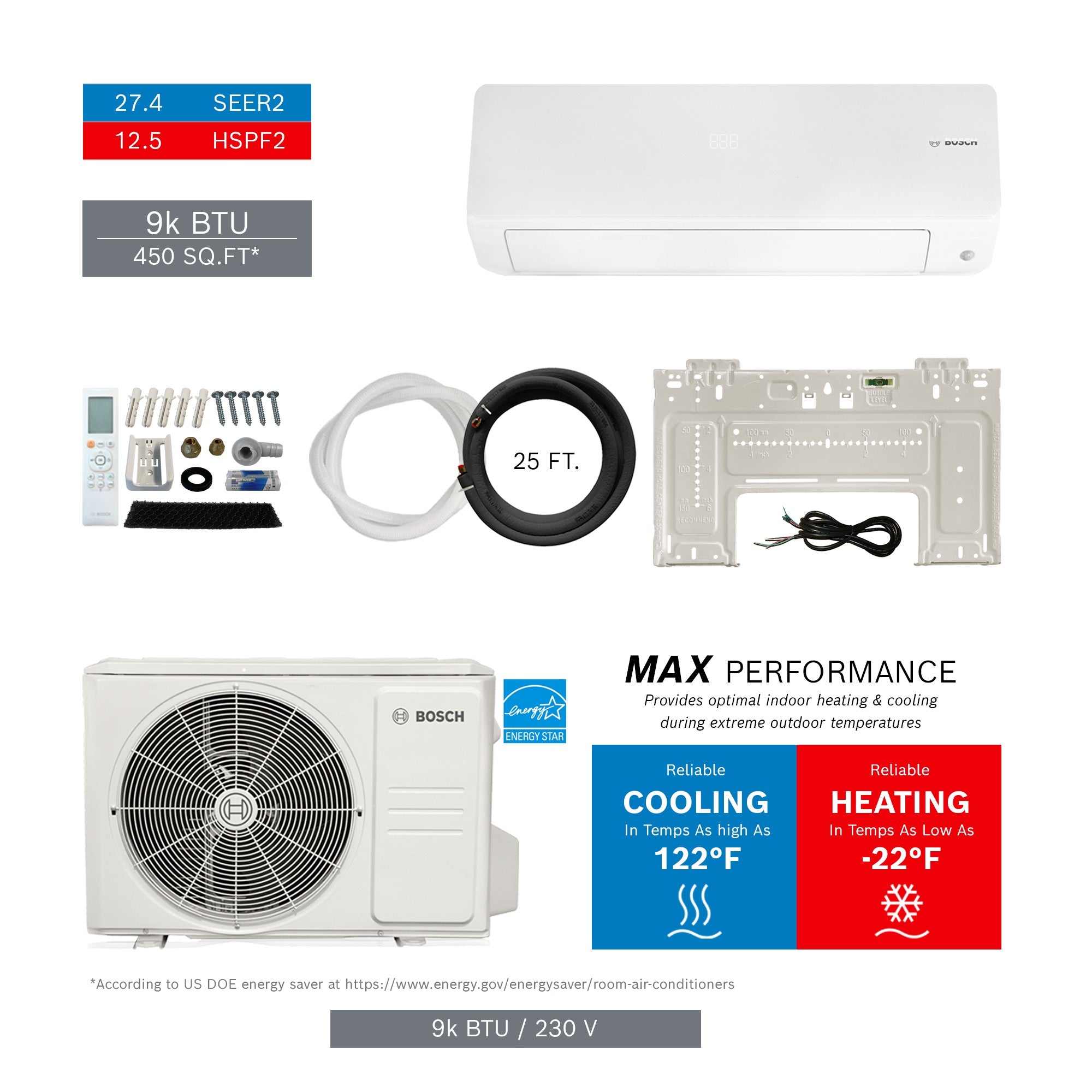

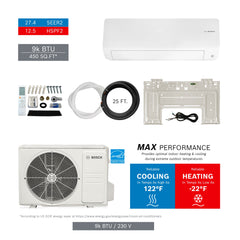

• Complete kit includes indoor unit (8733962672), outdoor unit (8733962688), and 25-foot line set (8733951010)
• 230-volt operation

Compatibility

This kit bundles BOSCH components: indoor unit 8733962672, outdoor unit 8733962688, and line set 8733951010. Designed as a matched single-zone ductless mini split system for residential and light commercial installations.

Installation Notes

Installation must be performed by a licensed HVAC technician with EPA 608 certification for refrigerant handling. Shut off all power at the breaker panel before making electrical connections, and verify that the dedicated circuit matches the system voltage and amperage requirements. Follow local mechanical and electrical codes, including applicable sections of the NEC, when routing line sets and low-voltage control wiring. Do not operate the system until refrigerant lines are properly leak-tested and the system has been evacuated to manufacturer specifications.

Technical Specifications

• Capacity: 9000 BTU/h
• Voltage: 230 volts
• SEER2: 27.4
• EER2: 15.2
• HSPF2: 12.5
• COP at 47 degrees F: 3.76
• Energy Star Certified: Yes
• Line Set Length: 25 feet
• Kit Net Weight: 104.62 pounds
• Kit Gross Weight: 152.18 pounds
• UPC: 52575023052

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980405
