Bosch 8733980402 30000 Btu Mini-split System 230V

Product Description

The BOSCH 8733980402 is a single-zone mini-split system rated at 30,000 BTU/h, designed for ductless heating and cooling in residential and light commercial applications. Operating on 230 volts, this Generation 4 kit delivers a SEER2 rating of 20.5 and an EER2 of 12.0, placing it firmly in the high-efficiency tier. The system qualifies for Energy Star certification and carries an HSPF2 of 9.5 with a COP at 47 degrees F of 3.08, making it effective for both cooling and heating loads. Licensed HVAC technicians handle installation and commissioning of this equipment.

This kit is configured for single-zone ductless installation and includes an indoor unit, outdoor unit, and a 16-foot line set, providing everything needed for a standard installation in one package. It is well suited for residential room additions, garage conversions, server rooms, sunrooms, and other spaces where extending existing ductwork is impractical. The 230-volt power requirement is consistent with dedicated residential and light commercial circuits commonly found in these applications.

Key Features

• 30,000 BTU/h capacity for single-zone ductless heating and cooling
• SEER2 20.5 and EER2 12.0 for high-efficiency operation
• HSPF2 9.5 and COP 3.08 at 47 degrees F for cold-climate heating performance
• Energy Star certified

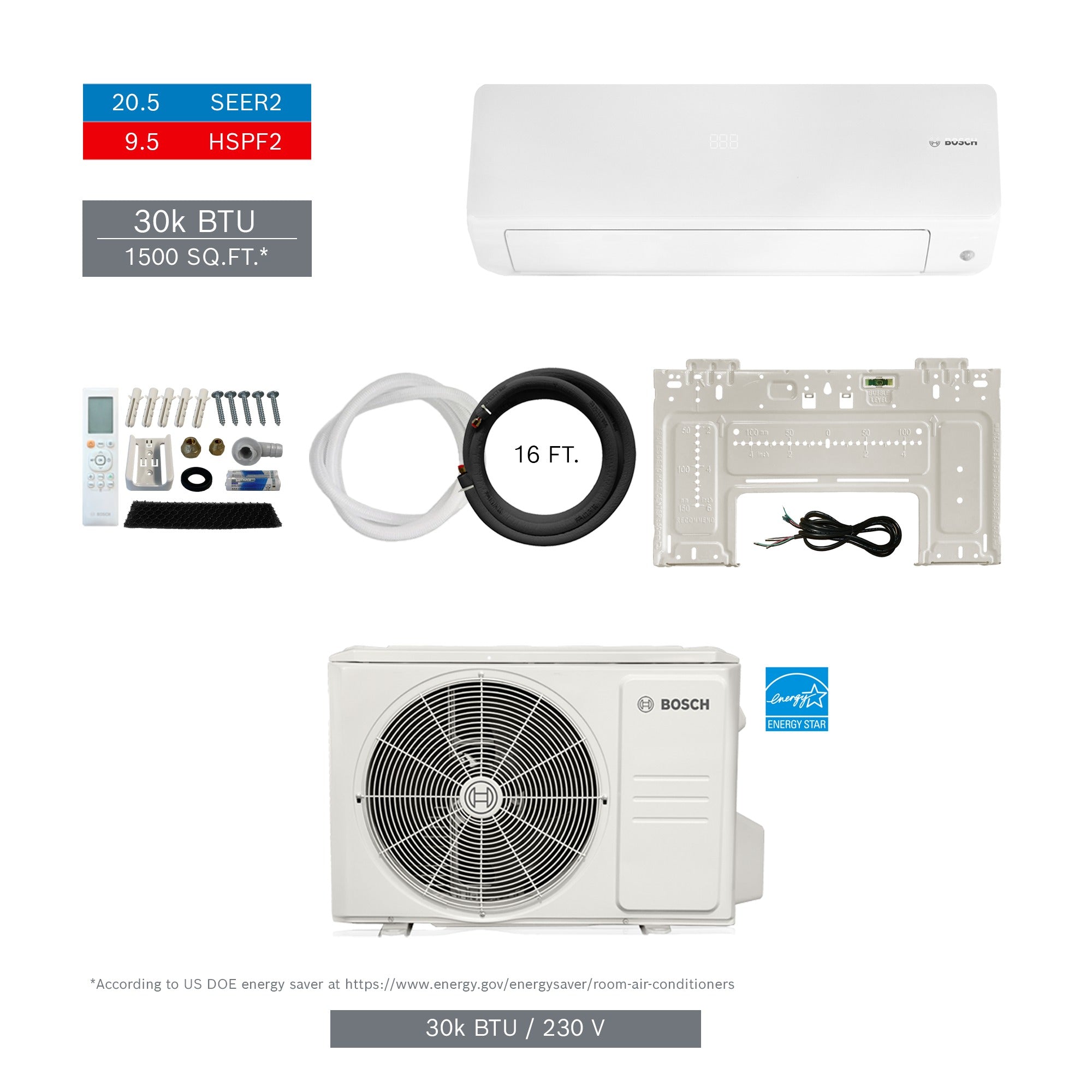

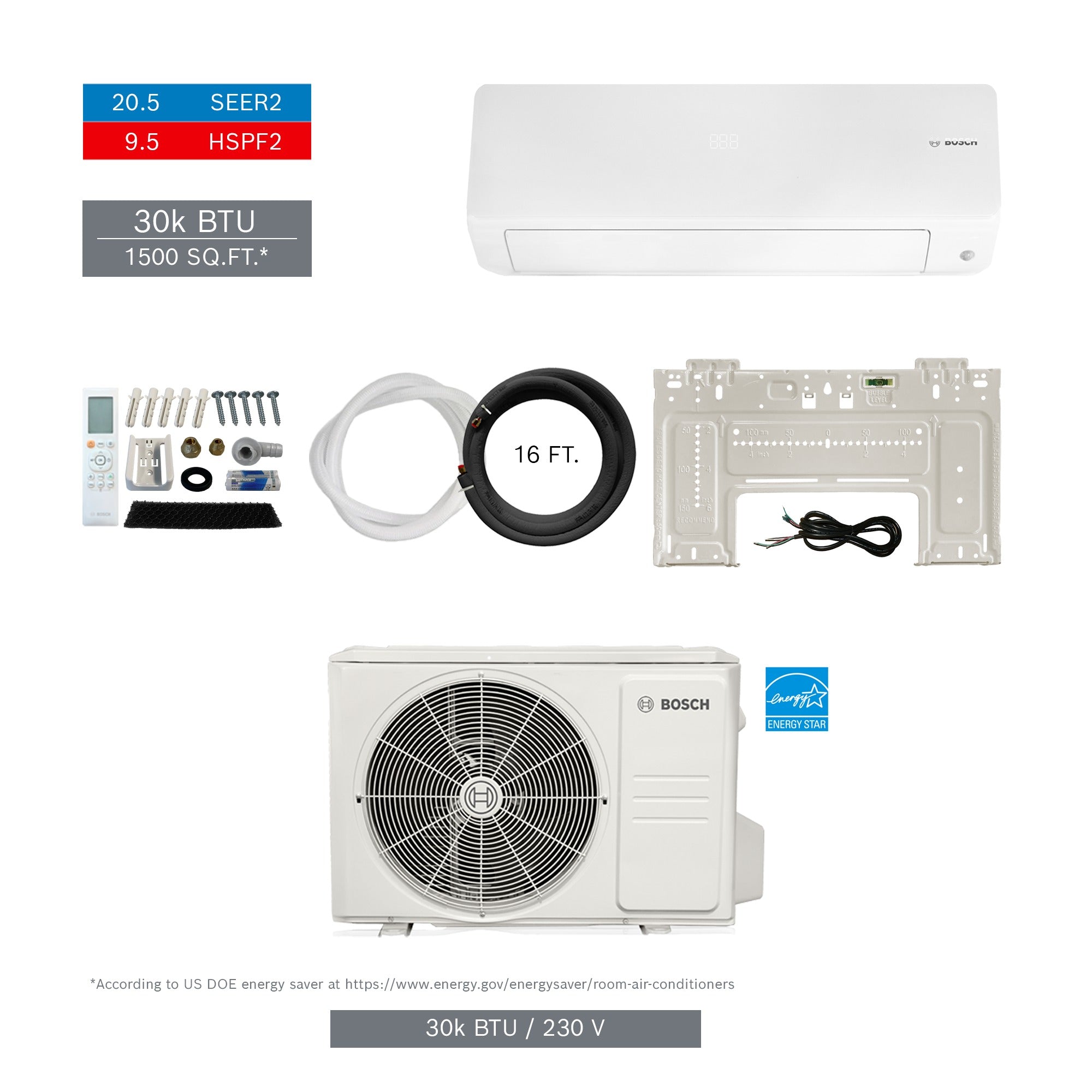

• Complete kit includes indoor unit (8733962677), outdoor unit (8733962678), and 16-foot line set (8733951018)
• Generation 4 platform operating at 230 volts

Compatibility

This kit includes IDU component 8733962677, ODU component 8733962678, and line set component 8733951018 as matched system components. Designed as a matched single-zone ductless mini-split system; consult BOSCH documentation to confirm compatibility with any supplemental accessories or controls.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant certification. Shut off all electrical power to the circuit before making any electrical connections, and verify that the dedicated 230-volt circuit is correctly sized for the system load. Follow local mechanical and electrical codes, including applicable sections of the NEC, when routing line sets, drain lines, and low-voltage control wiring. Do not braze or pressure-test the refrigerant circuit without proper recovery equipment on hand.

Technical Specifications

• Cooling Capacity: 30000 BTU/h
• Voltage: 230 volts
• SEER2: 20.5
• EER2: 12.0
• HSPF2: 9.5
• COP at 47 degrees F: 3.08
• Energy Star: Yes
• AHRI Certified: Yes
• Line Set Length: 16 feet
• Kit Net Weight: 191.85 pounds
• Kit Gross Weight: 249.99 pounds
• UPC: 52575023021

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980402
