Bosch 8733980401 Mini Split 30000 Btu 20.5 SEER2 Single Zone

Product Description

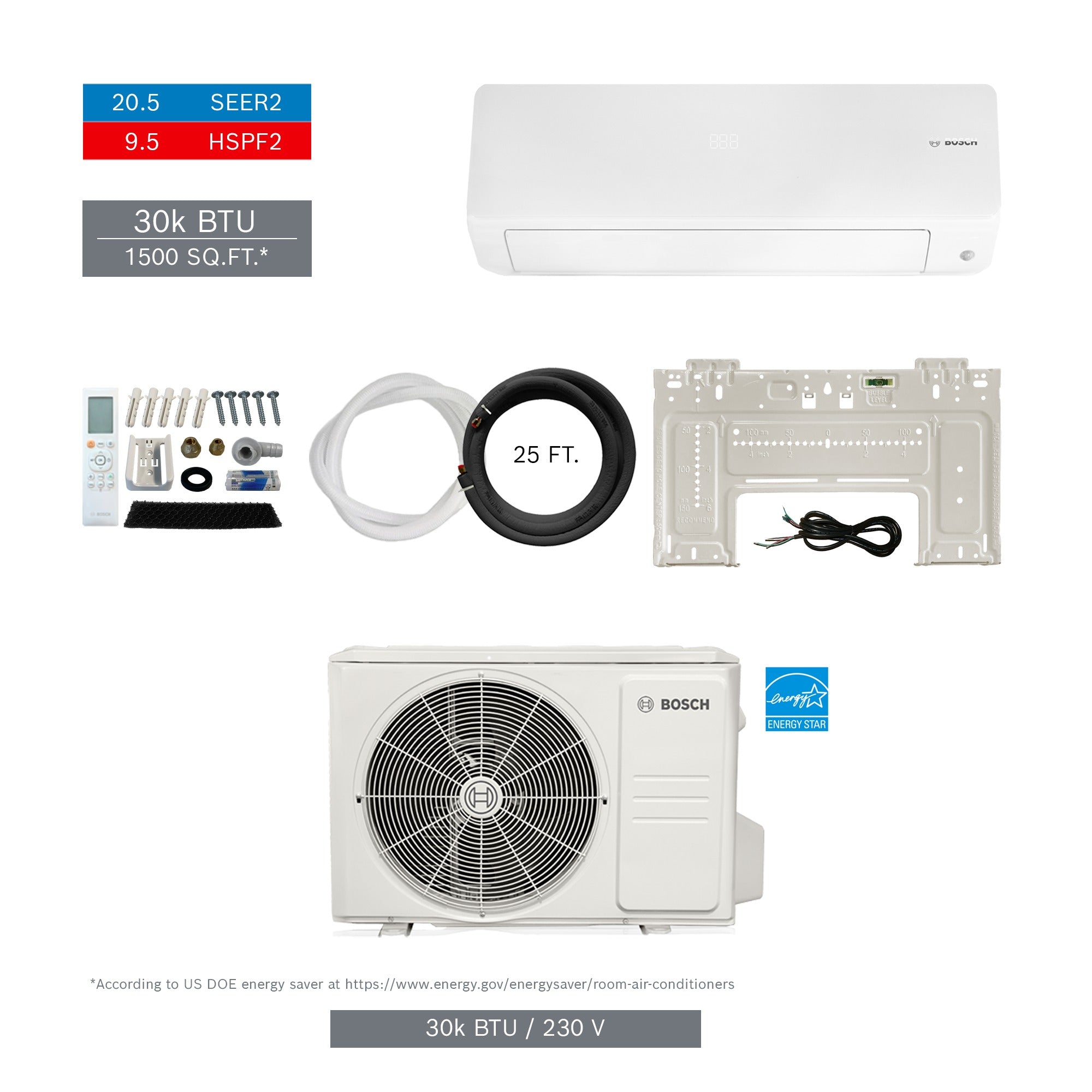

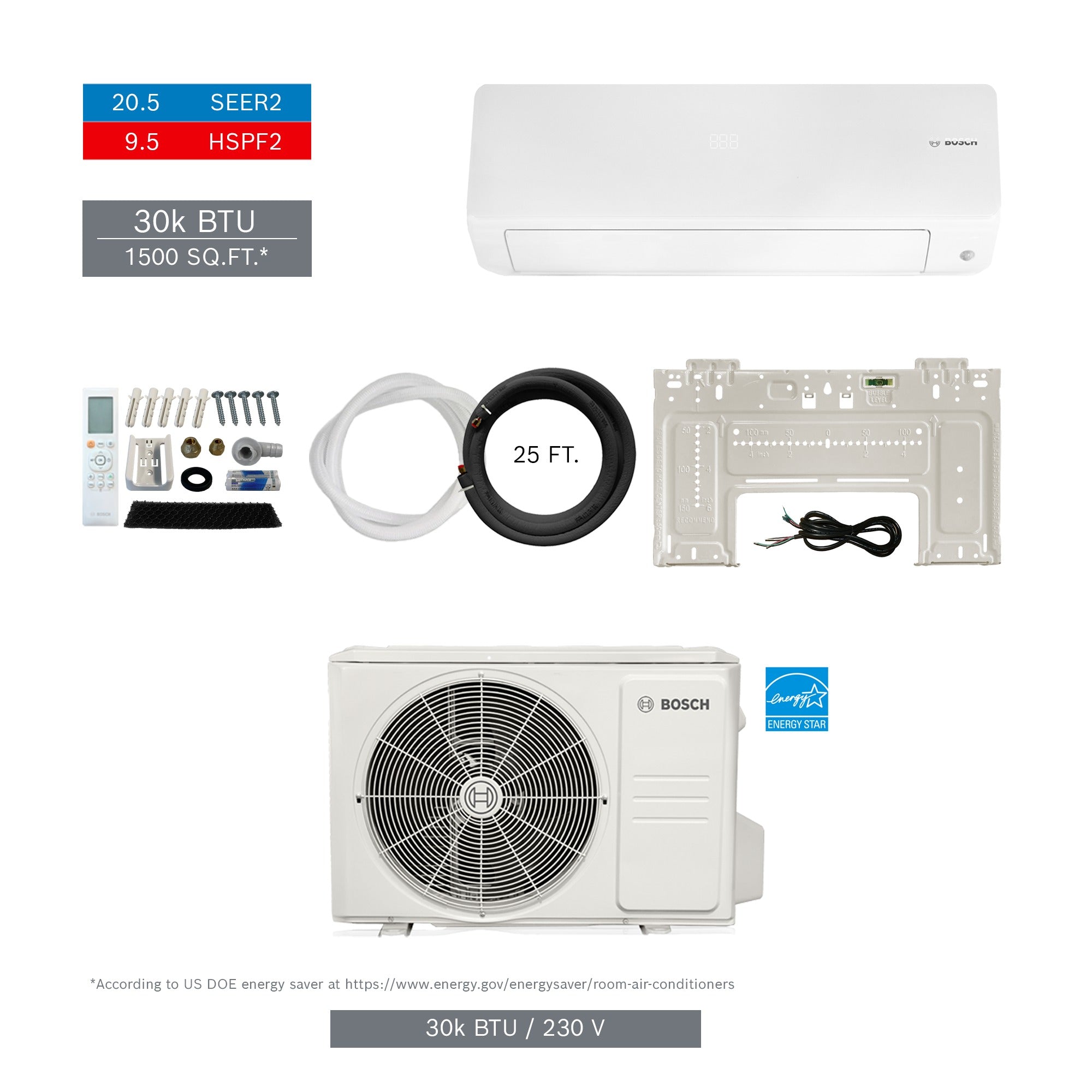

The BOSCH 8733980401 is a single-zone ductless mini split system rated at 30000 BTU/h with a 20.5 SEER2 efficiency rating. The kit includes one indoor air handler (IDU), one outdoor condensing unit (ODU), and a 25-foot line set, providing everything needed for a complete installation. Operating on 230 volts, this system is designed for residential or light-commercial comfort heating and cooling. Its HSPF2 rating of 9.5 and COP of 3.08 at 47 degrees F reflect strong heating performance in moderate climates. Licensed HVAC technicians install this system as a complete matched assembly.

This system is suited for single-zone applications such as room additions, converted garages, sunrooms, and spaces without existing ductwork. The included 25-foot line set simplifies installation in standard wall-penetration scenarios. The system carries an AHRI-certified EER2 of 12.0 and holds Energy Star certification, making it eligible for applicable rebate programs. It is appropriate for both new construction and retrofit projects where zoned comfort control is required.

Key Features

• 30000 BTU/h AHRI-certified capacity for single-zone cooling and heating
• 20.5 SEER2 and 12.0 EER2 efficiency ratings meet current DOE standards
• 9.5 HSPF2 and 3.08 COP at 47 degrees F for reliable heating performance
• Energy Star certified — supports utility rebate eligibility
• Complete kit includes indoor unit, outdoor unit, and 25-foot line set
• 230-volt operation compatible with standard residential electrical service

Compatibility

This kit is a matched AHRI-certified assembly consisting of indoor unit 8733962677, outdoor unit 8733962678, and line set 8733951015. Components are intended to be installed together as a system and should not be substituted individually without verifying AHRI-matched performance data.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician, as handling refrigerant requires certification. Disconnect and lock out all electrical power before beginning any work on the indoor or outdoor unit. The 230-volt circuit should be sized and protected per NEC requirements for the unit's listed ampacity. Do not bend the line set to a radius tighter than the manufacturer allows, and ensure all flare connections are torqued using a calibrated torque wrench per standard field practice.

Technical Specifications

• Capacity: 30000 BTU/h
• SEER2: 20.5
• EER2: 12.0
• HSPF2: 9.5
• COP at 47 degrees F: 3.08
• Voltage: 230 volts
• Line Set Length: 25 feet
• Kit Net Weight: 198.87 pounds
• Kit Gross Weight: 257.01 pounds
• Energy Star Certified: Yes
• UPC: 52575023014

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980401
