Bosch 8733980399 Mini Split Kit 24000 Btu 230V 25ft

Product Description

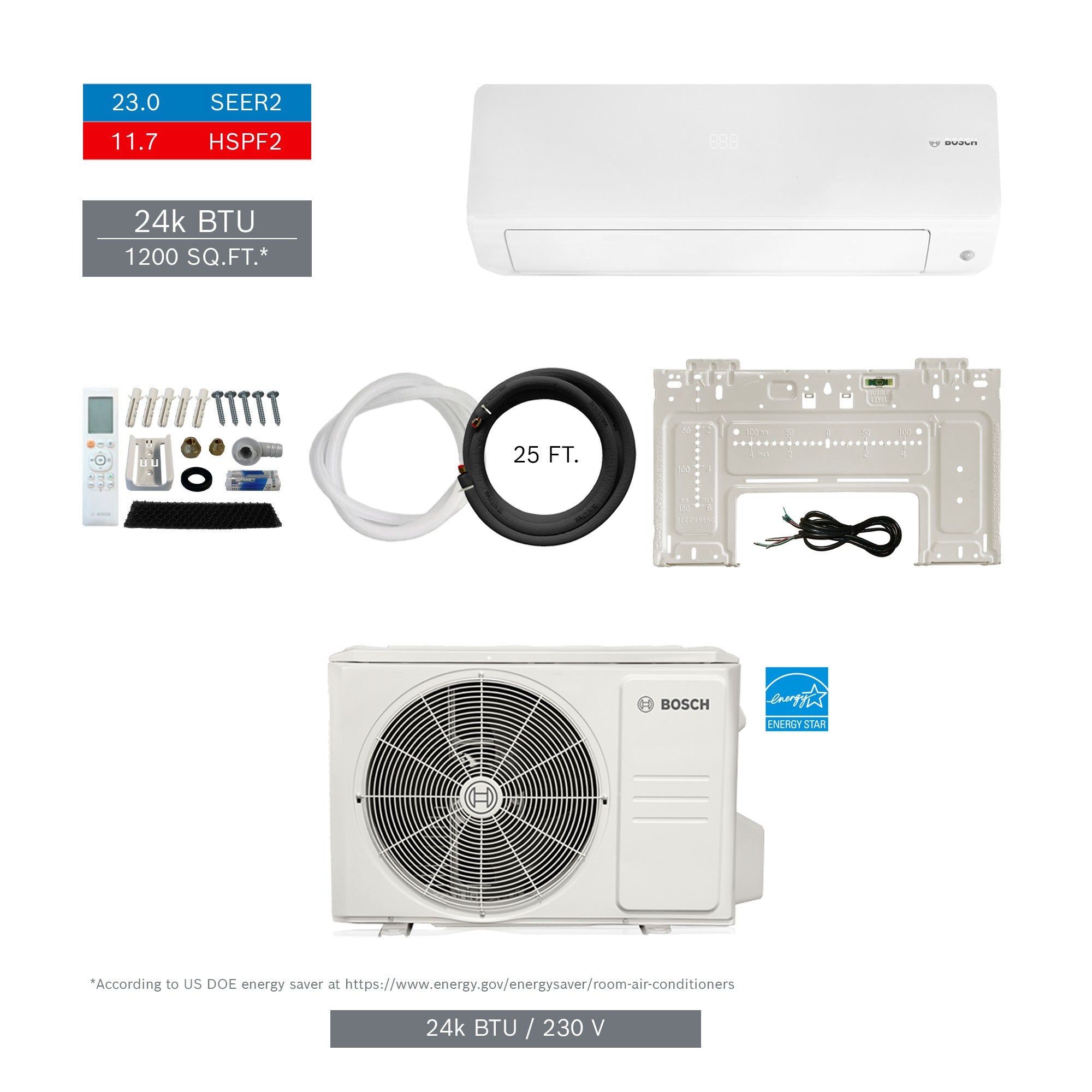

The BOSCH 8733980399 is a single-zone mini-split system kit rated at 24,000 BTU/h, designed for residential and light-commercial heating and cooling applications. This kit ships as a complete package including one indoor unit, one outdoor unit, and a 25-foot line set, giving installers everything needed to complete a standard installation. The system operates on 230 volts and carries AHRI-certified efficiency ratings of 23.0 SEER2, 14.0 EER2, and 11.7 HSPF2, qualifying it as an Energy Star certified product. Licensed HVAC technicians install this equipment in single-room or single-zone configurations.

This kit is intended for single-zone ductless mini-split installations in residential or light-commercial settings. The included 25-foot line set suits standard wall penetration layouts where the indoor and outdoor units are in close proximity. The complete kit format reduces sourcing time on the job site by bundling the indoor unit (IDU 8733962675), outdoor unit (ODU 8733962687), and line set (8733951015) into one SKU. It is well-suited for bedroom additions, bonus rooms, sunrooms, garages, and similar spaces where ducted systems are impractical.

Key Features

• 24,000 BTU/h capacity for single-zone heating and cooling
• AHRI-certified 23.0 SEER2 and 14.0 EER2 efficiency ratings
• 11.7 HSPF2 heating efficiency with a COP of 3.96 at 47 degrees F
• Energy Star certified for compliance with efficiency incentive programs
• Complete kit includes matched IDU, ODU, and 25-foot line set
• 230-volt operation compatible with standard residential electrical service

Compatibility

This kit contains BOSCH indoor unit 8733962675, outdoor unit 8733962687, and line set 8733951015, factory-matched as a complete single-zone mini-split system.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Disconnect and lock out electrical power at the breaker before making any wiring connections. Refrigerant line brazing, system evacuation, and charging must follow applicable local mechanical codes and manufacturer procedures. Mounting locations for both the indoor and outdoor units should be selected to ensure proper airflow clearances and condensate drainage.

Technical Specifications

• Capacity: 24,000 BTU/h
• Voltage: 230 volts
• SEER2: 23.0
• EER2: 14.0
• HSPF2: 11.7
• COP at 47 degrees F: 3.96
• Energy Star Certified: Yes
• Line Set Length: 25 feet
• Kit Net Weight: 178.58 pounds
• Kit Gross Weight: 235.64 pounds
• Zone Configuration: Single Zone
• UPC: 52575022994

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980399
