Bosch 8733980396 Single Zone Mini Split 12000 Btu/h

Product Description

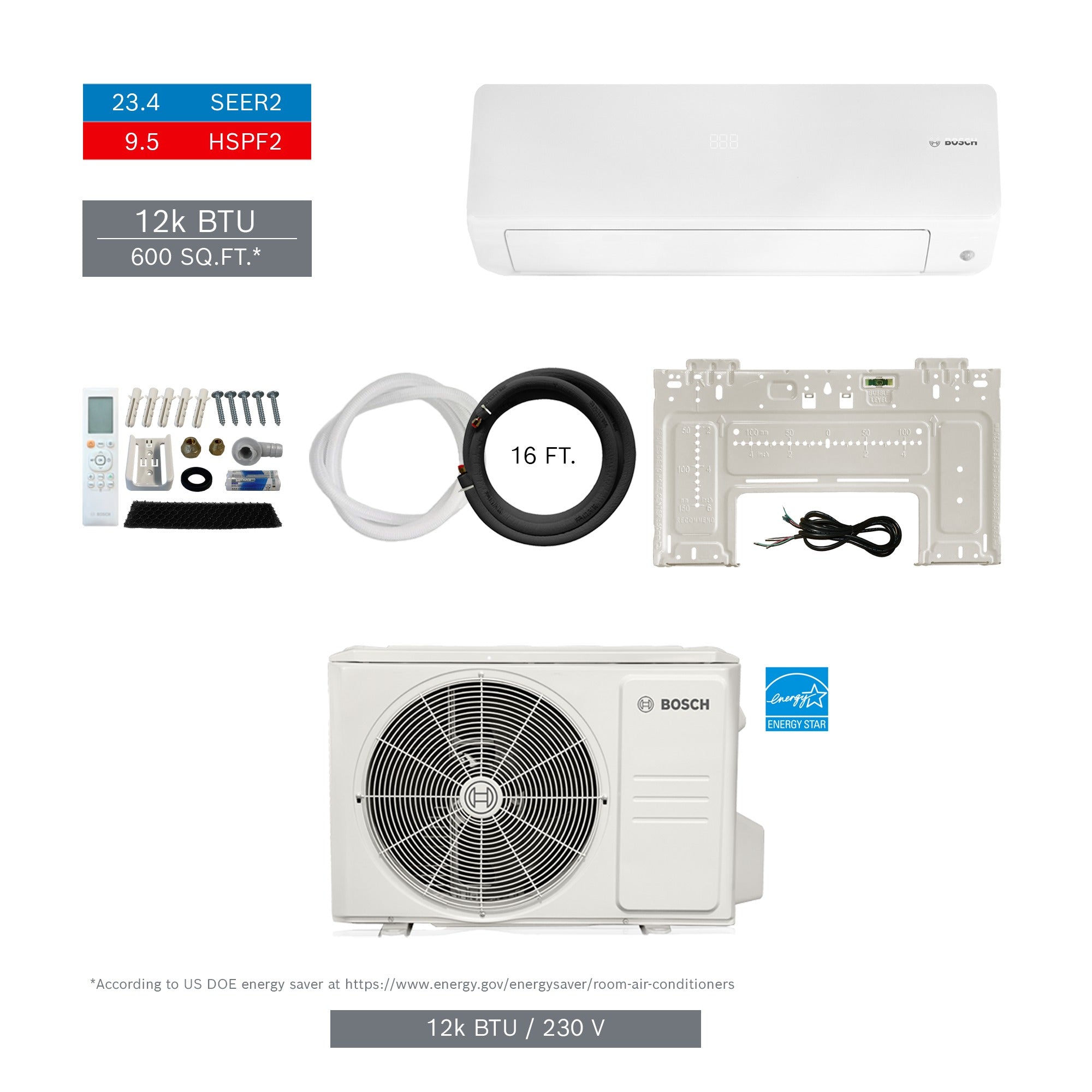

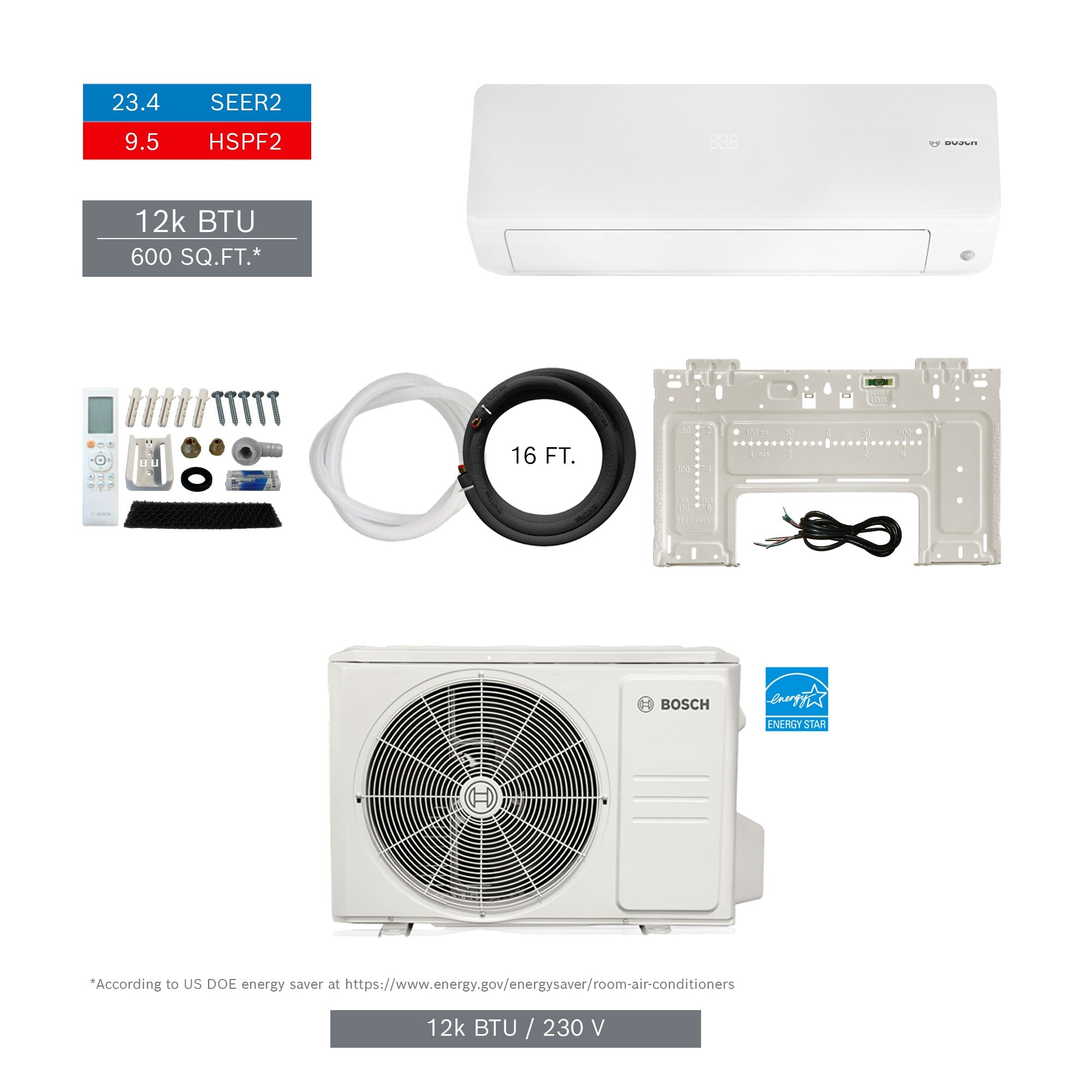

The BOSCH 8733980396 is a single-zone ductless mini split system rated at 12000 BTU/h, designed for residential and light-commercial heating and cooling applications. Operating on 230 volts, this Generation 4 system ships as a complete kit including one indoor unit, one outdoor unit, and a 16-foot line set, giving technicians everything needed for a standard installation. It carries an AHRI-certified SEER2 rating of 25.5 and an HSPF2 of 10.6, making it an Energy Star qualified system. The COP at 47 degrees F is 3.9, reflecting strong low-ambient heating performance. Installation is handled by licensed HVAC technicians.

This kit is suited for single-zone residential rooms, additions, server rooms, or small commercial spaces where ductless delivery is preferred. The included 16-foot line set accommodates typical wall-penetration distances in standard construction. The system is appropriate for new construction and retrofit applications where a high-efficiency, all-in-one ductless solution is required. All three major components ship together as a matched set, reducing the risk of compatibility issues during installation.

Key Features

• AHRI-certified 12000 BTU/h capacity with SEER2 25.5 efficiency rating
• Energy Star qualified for high-efficiency operation
• HSPF2 10.6 and COP 3.9 at 47 degrees F for effective cold-weather heating
• Complete kit: indoor unit (8733962673), outdoor unit (8733962685), and 16-foot line set (8733951017) included
• Generation 4 design on 230-volt power supply
• Kit net weight 89.04 pounds; gross weight 135.94 pounds

Compatibility

This kit is a matched single-zone system consisting of indoor unit 8733962673, outdoor unit 8733962685, and line set 8733951017. Components are factory-matched and intended to be installed together as a complete assembly.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Disconnect and lock out all electrical power before handling any system components. Line set connections require proper flaring and torque procedures per the manufacturer instructions; refrigerant handling must comply with all applicable EPA and local regulations. Refer to the equipment documentation and local mechanical codes for mounting clearances, electrical disconnect requirements, and condensate drainage.

Technical Specifications

• Capacity: 12000 BTU/h
• Voltage: 230 volts
• SEER2: 25.5
• EER2: 13.0
• HSPF2: 10.6
• COP at 47 degrees F: 3.9
• Energy Star Certified: Yes
• Line Set Length: 16 feet
• Kit Net Weight: 89.04 pounds
• Kit Gross Weight: 135.94 pounds
• UPC: 52575022963

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980396
