Bosch 8733980394 Mini Split 9000 Btu 230V 16ft

Product Description

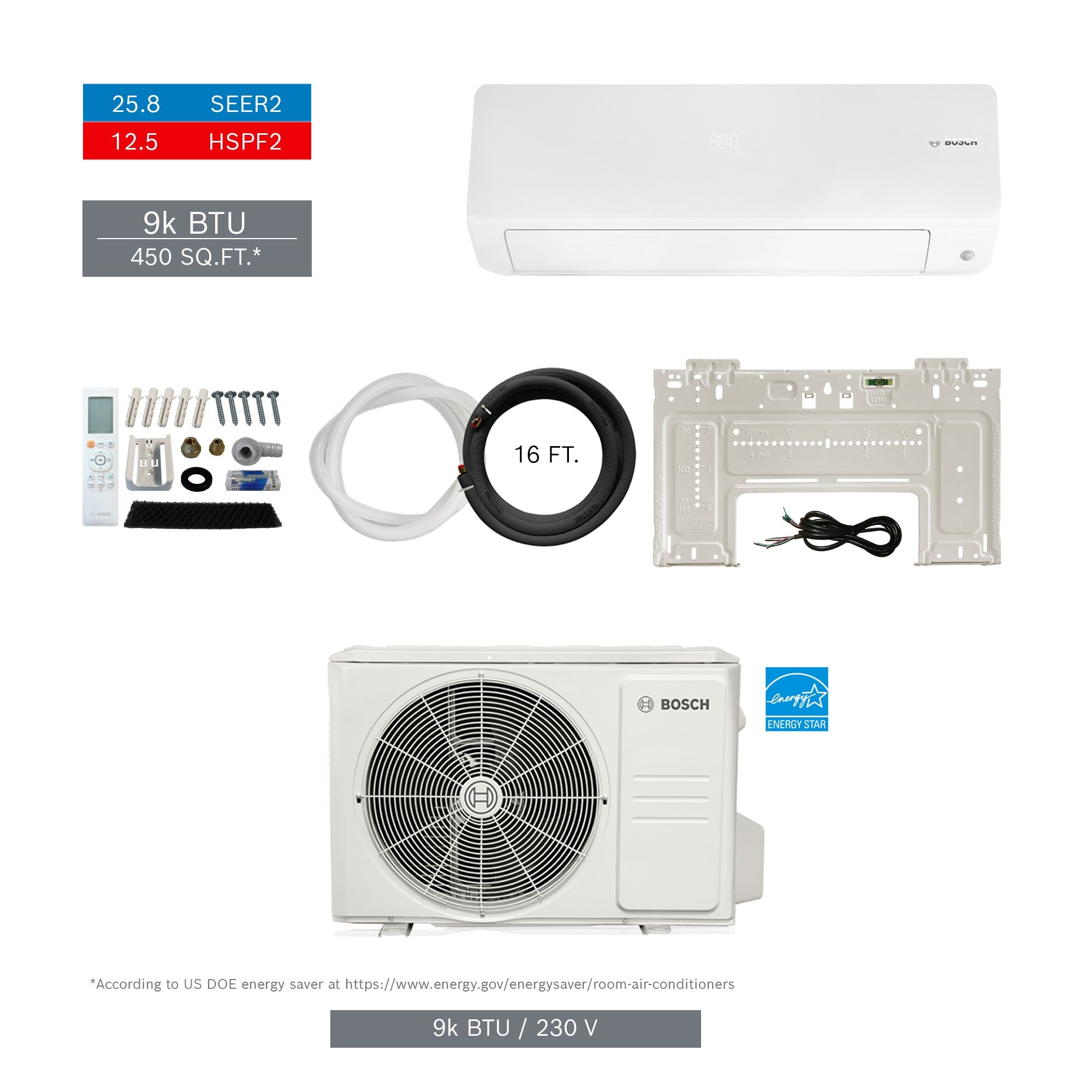

The BOSCH 8733980394 is a single-zone ductless mini split system rated at 9000 BTU/h, operating on 230 volts. The kit ships as a matched set that includes one indoor unit, one outdoor unit, and a 16-foot line set, so the core components arrive together for a complete installation. With a SEER2 rating of 25.8 and an EER2 of 14.9, this system carries Energy Star certification and meets current efficiency standards for residential and light-commercial applications. HSPF2 is rated at 12.5, and the COP at 47 degrees F is 3.9, making it a capable heat pump for both cooling and heating seasons. Licensed HVAC technicians perform the refrigerant connection and startup.

This system is suited for single-zone applications such as a room addition, garage conversion, sunroom, or any conditioned space that lacks existing ductwork. The included 16-foot line set covers typical wall-penetration runs in residential installations. The matched indoor and outdoor units are designed to operate together as a tested, AHRI-certified system. It is appropriate for residential installations where high efficiency and compact footprint are priorities.

Key Features

• 9000 BTU/h capacity with SEER2 25.8 for high-efficiency cooling
• HSPF2 12.5 and COP 3.9 at 47 degrees F for efficient heating performance
• Complete kit includes indoor unit (8733962672), outdoor unit (8733962684), and 16-foot line set (8733951016)
• 230-volt operation suitable for standard mini split branch circuits
• Energy Star certified
• AHRI-certified matched system assembly

Compatibility

This kit pairs indoor unit 8733962672 with outdoor unit 8733962684 and line set 8733951016 as a factory-matched assembly. Components are designed to operate together as a single-zone system and should not be substituted with unmatched units.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Disconnect and lock out all power to the branch circuit before making electrical connections. The line set penetration through exterior walls should be sealed against air and moisture infiltration per local mechanical and building codes. Do not operate the system without verifying refrigerant charge and confirming all electrical connections meet NEC requirements for mini split installations.

Technical Specifications

• Capacity: 9000 BTU/h
• Voltage: 230 volts
• SEER2: 25.8
• EER2: 14.9
• HSPF2: 12.5
• COP at 47 degrees F: 3.9
• Energy Star Certified: Yes
• Line Set Length: 16 feet
• Kit Net Weight: 91.44 pounds
• Kit Gross Weight: 138.56 pounds
• UPC: 52575022949

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980394
