Bosch 8733980393 9000 Btu Mini Split System 230V

Product Description

The BOSCH 8733980393 is a single-zone mini split system rated at 9000 BTU/h, designed for residential and light-commercial heating and cooling applications. Operating on 230 volts, this kit includes an indoor unit, outdoor unit, and a 25-foot line set, providing everything needed for a complete installation. It carries a SEER2 rating of 25.8 and an HSPF2 of 12.5, placing it firmly in the high-efficiency category. The system holds Energy Star certification and is AHRI-rated, confirming that the published performance figures are independently verified. Licensed HVAC technicians install and commission this type of system.

This kit is suited for single-zone applications such as individual rooms, additions, garages, or small commercial spaces where ductless delivery is preferred. The included 25-foot line set simplifies the install by eliminating a separate line set order for standard-distance placements. The system is appropriate for both new construction and retrofit scenarios where extending or adding ductwork is not practical. An EER2 of 14.9 and a COP at 47 degrees F of 3.9 indicate solid performance across both cooling and heating modes.

Key Features

• 9000 BTU/h AHRI-rated capacity for single-zone comfort control
• SEER2 25.8 and HSPF2 12.5 for high-efficiency operation in both cooling and heating modes
• Energy Star certified — meets or exceeds current federal efficiency standards

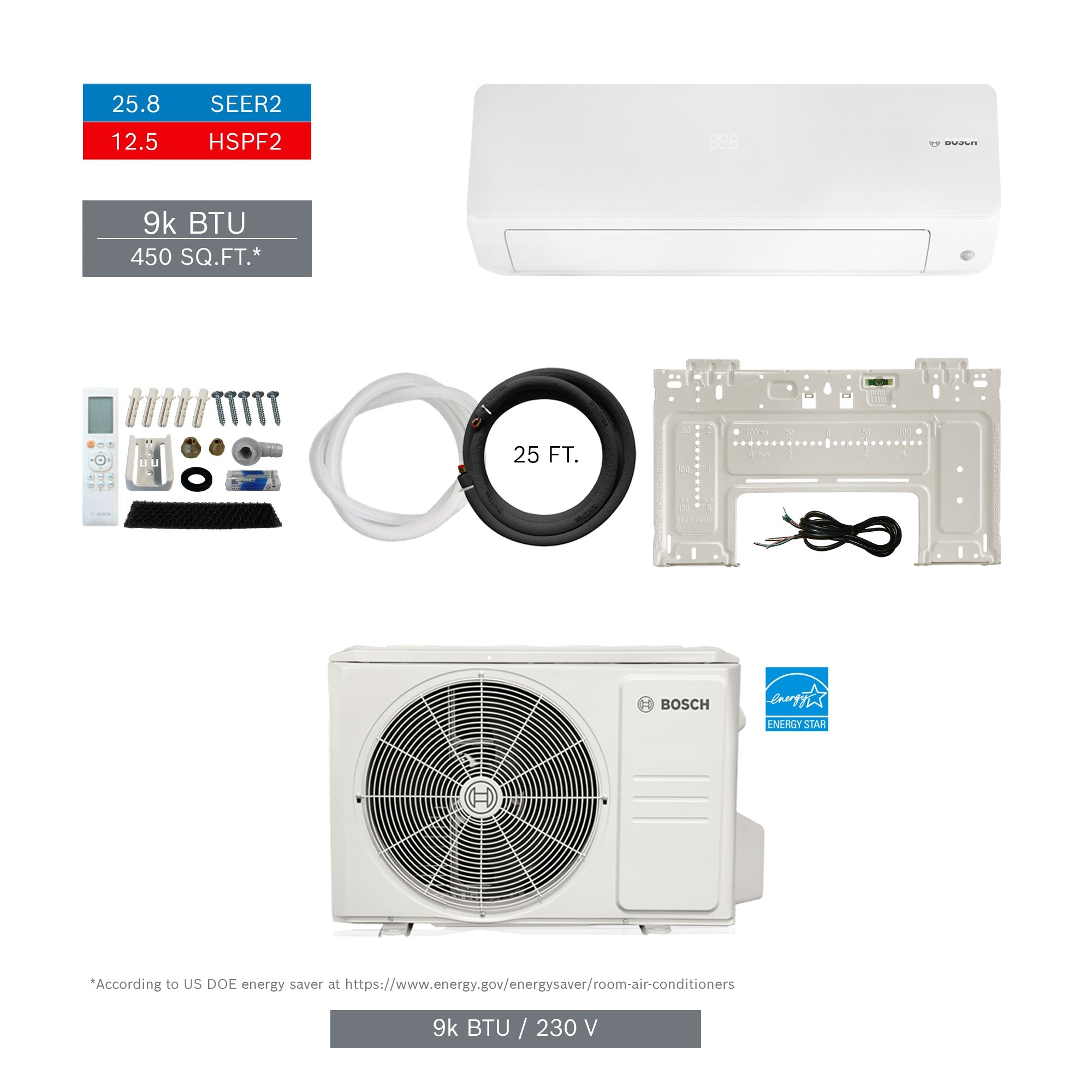

• Complete kit includes indoor unit (8733962672), outdoor unit (8733962684), and 25-foot line set (8733951010)
• 230-volt operation compatible with standard dedicated mini split circuits
• COP of 3.9 at 47 degrees F for reliable cold-weather heating performance

Compatibility

This kit is an all-in-one single-zone ductless mini split package. Component part numbers included are indoor unit 8733962672, outdoor unit 8733962684, and line set 8733951010. No additional unit pairing is required when purchasing this complete kit.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification, as the system contains refrigerant. Power must be disconnected at the disconnect block and the main panel before any electrical connections are made. The outdoor unit requires a level mounting pad or bracket rated for the unit weight, and refrigerant line routing should follow the manufacturer guidelines to avoid kinking the line set. Local mechanical and electrical codes, including NEC requirements for dedicated circuits, apply to this installation.

Technical Specifications

• Capacity: 9000 BTU/h
• Voltage: 230 volts
• SEER2: 25.8
• EER2: 14.9
• HSPF2: 12.5
• COP at 47 degrees F: 3.9
• Energy Star Certified: Yes
• AHRI Certified: Yes
• Line Set Length: 25 feet
• Kit Net Weight: 94.04 pounds
• Kit Gross Weight: 141.16 pounds
• UPC: 52575022932

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980393
