Bosch 8733980392 Single Zone Mini Split Kit 9000 Btu/h

Product Description

The BOSCH 8733980392 is a single-zone mini split kit rated at 9,000 BTU/h, designed for ductless heating and cooling in residential and light-commercial applications. The kit operates on 230 volts and ships with an indoor unit, outdoor unit, and a 16-foot line set, so the core components arrive together for a streamlined installation. It carries an AHRI-certified SEER2 rating of 26.0 and an HSPF2 of 12.5, placing it firmly in the high-efficiency category. COP at 47 degrees F is 4.6, supporting reliable heating performance in moderate cold. Energy Star certification confirms it meets current federal efficiency standards.

This kit is suited for single-room or single-zone applications such as bedrooms, home offices, garages, additions, or small commercial spaces where extending existing ductwork is impractical or cost-prohibitive. The included 16-foot line set covers typical wall-penetration installations without requiring the technician to source refrigerant lines separately. The kit format reduces the risk of component mismatches and simplifies the procurement process for HVAC contractors handling residential retrofits or new construction installs.

Key Features

• AHRI-certified 9,000 BTU/h capacity with SEER2 26.0 efficiency rating
• HSPF2 12.5 and COP 4.6 at 47 degrees F for efficient cold-weather heating
• 230-volt operation compatible with standard single-phase residential electrical service

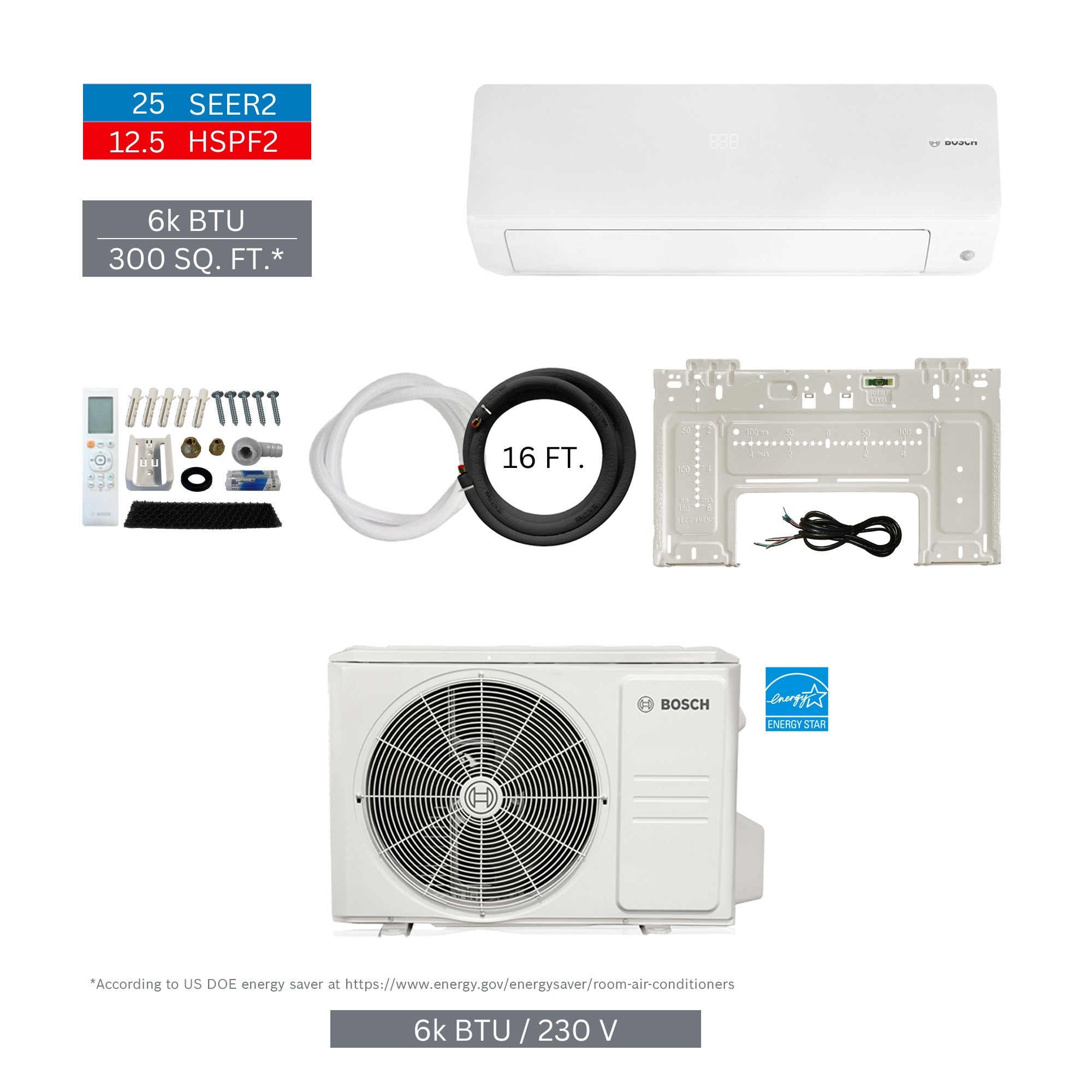

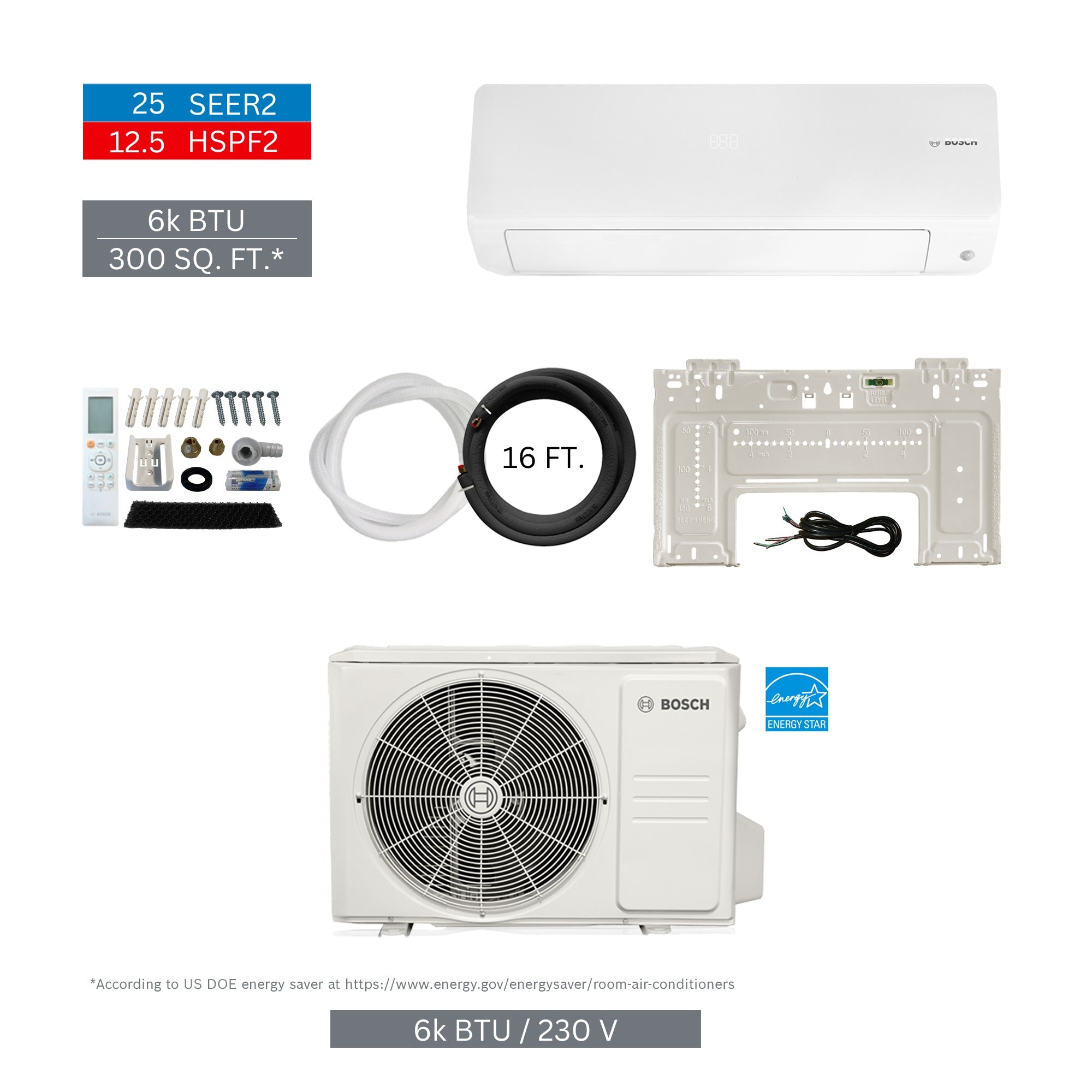

• Complete kit includes indoor unit (8733962676), outdoor unit (8733962684), and 16-foot line set (8733951016)
• Energy Star certified
• Single-zone configuration for targeted room-by-room climate control

Compatibility

This kit consists of indoor unit 8733962676, outdoor unit 8733962684, and line set 8733951016, matched as a single-zone system. Designed as an OEM-matched ductless mini split kit for single-zone residential and light-commercial installations.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician, as this system contains refrigerant. Disconnect and lock out all electrical power before handling any wiring or mounting hardware. The line set penetration, electrical supply wiring, and condensate drainage must conform to local mechanical and electrical codes, including applicable NEC requirements. Do not operate the system without verifying the refrigerant circuit is properly evacuated and charged per manufacturer procedures.

Technical Specifications

• Capacity: 9,000 BTU/h
• SEER2: 26.0
• EER2: 14.9
• HSPF2: 12.5
• COP at 47 degrees F: 4.6
• Voltage: 230 volts
• Line Set Length: 16 feet
• Kit Net Weight: 91.44 pounds
• Kit Gross Weight: 138.56 pounds
• Energy Star Certified: Yes
• UPC: 52575022925

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980392
