Bosch 8733980391 Single-zone Mini-split 9000 Btu/h 230V

Product Description

The BOSCH 8733980391 is a single-zone ductless mini-split system rated at 9000 BTU/h, designed for residential and light-commercial cooling and heating applications. Operating on 230 volts, this system achieves a SEER2 rating of 26.0 and an HSPF2 of 12.5, placing it firmly in the high-efficiency category and qualifying for Energy Star certification. The kit ships as a complete package including an indoor unit, outdoor unit, and a 25-foot line set, giving HVAC technicians everything needed for a standard single-zone installation without sourcing components separately.

This system is suited for single-room or single-zone conditioning in residential homes, apartments, additions, and small commercial spaces where ducted systems are impractical or absent. The included 25-foot line set accommodates typical wall-penetration installations where the outdoor unit is mounted at grade or on a wall bracket within standard line-run distance. The package format reduces jobsite coordination and is appropriate for licensed HVAC technicians performing new installs or zone-addition work.

Key Features

• 9000 BTU/h capacity for single-zone residential and light-commercial use
• SEER2 26.0 and EER2 14.9 for high-efficiency cooling performance
• HSPF2 12.5 and COP at 47 degrees F of 4.6 for efficient heating operation
• Energy Star certified
• 230-volt operation compatible with standard single-phase residential electrical service

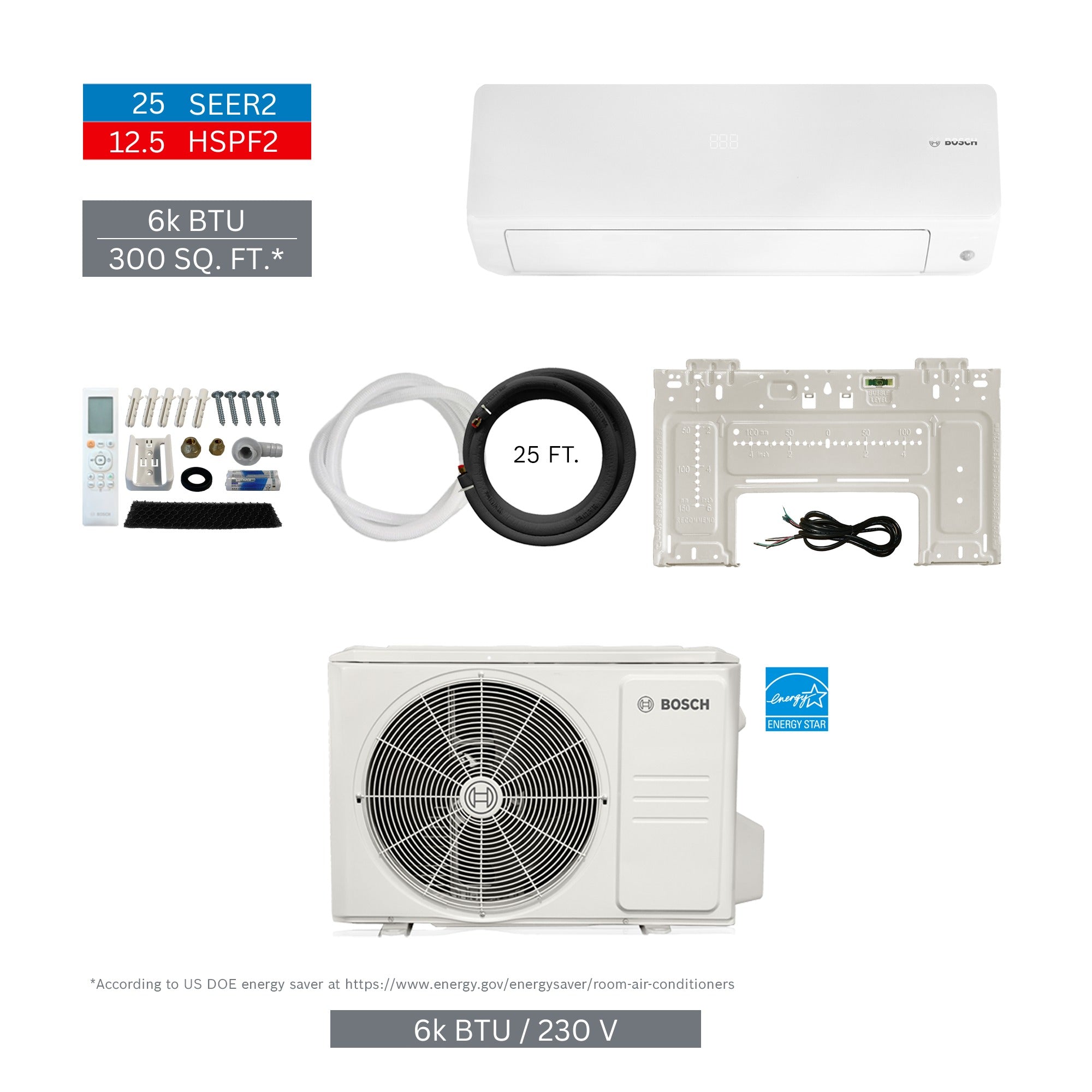

• Complete kit includes indoor unit, outdoor unit, and 25-foot line set

Compatibility

This kit includes indoor unit 8733962676, outdoor unit 8733962684, and line set 8733951010 as matched components. Designed as a complete single-zone ductless mini-split system; individual component substitution should be verified with BOSCH technical documentation before installation.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician due to refrigerant handling requirements. Disconnect and lock out all electrical power at the breaker before making any electrical connections. Follow local mechanical and electrical codes, including NEC requirements for disconnect sizing and circuit protection appropriate to the unit nameplate. Do not bend the line set below the minimum radius specified in the installation manual, and ensure the outdoor unit is mounted on a level, stable surface with adequate clearance for airflow.

Technical Specifications

• Capacity: 9000 BTU/h
• Voltage: 230 volts
• SEER2: 26.0
• EER2: 14.9
• HSPF2: 12.5
• COP at 47 degrees F: 4.6
• Energy Star: Yes
• AHRI Certified: Yes
• Included Line Set Length: 25 feet
• Kit Net Weight: 94.04 pounds
• Kit Gross Weight: 141.16 pounds
• UPC: 52575022918

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980391
