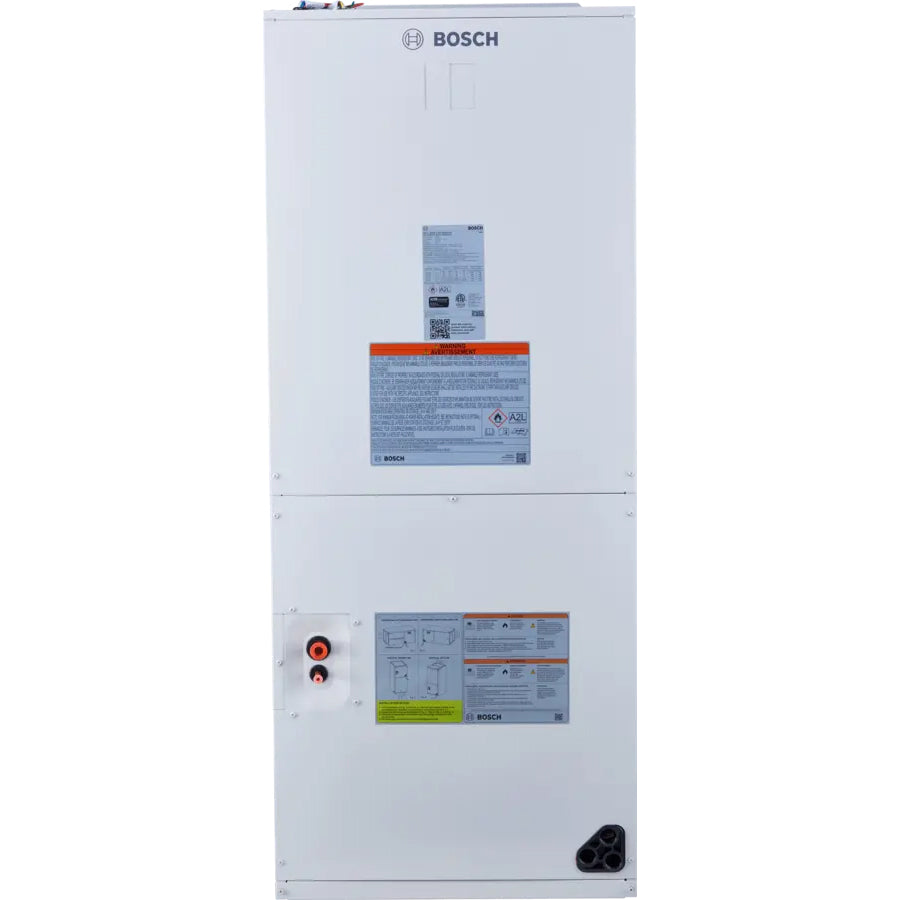

Bosch 8733965419 air handler unit 2 Ton

Product Description

The Bosch 8733965419 BIVA15 Air Handler Unit delivers exceptional comfort and efficiency. It pairs with the BOVA15 outdoor condensing unit to form the IDS Light, a premium inverter technology solution for warmer climates. Designed for horizontal, vertical or counterflow installation, providing comfort for years to come. The IDS Light (R-454B version) comes equipped with A2L refrigerant R-454B, meeting low-global warming potential (Low-GWP) requirements.

• Pairs with the BOVA15 outdoor condensing unit
• Aluminum coils for superior corrosion resistance
• Reliable PSC fixed-speed fan motor

Product Highlights

The Bosch air handler unit delivers maximum efficiency while keeping sound levels to a minimum. Ideal for upflow, horizontal left or right, and downflow installation.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733965419

Technical Specifications

• Manufacturer Name: Bosch Thermotechnology
• Product Type: Air Handler
• Tonnage: 2
• Refrigerant Type: R-454B
• Cabinet Width: 21"
• Air Handler Type: Singular (1-Piece)
• Brand: Bosch
• Coil Construction: Aluminum
• Configuration: Multi-Position
• Electrical Characteristics: 208-230V 1Ph, 60Hz
• Mfg. Part #: 8-733-965-419
• Motor Type: Fixed Multi-Speed PSC
• Nominal Capacity: 2.0 Ton
• Refrigerant: R454B
• Thermostat: 24V
• Cooling: Single
• Filter Size: 18" x 20" in.
• Liquid Line Size: 3/8" in.
• Series: IDS Light Series
• Suction Line Size: 3/4" in.
• Supply Air Opening: 18" x 10-5/16 in.
• Return Air Opening: 16-9/32" x 21-9/16" in.
