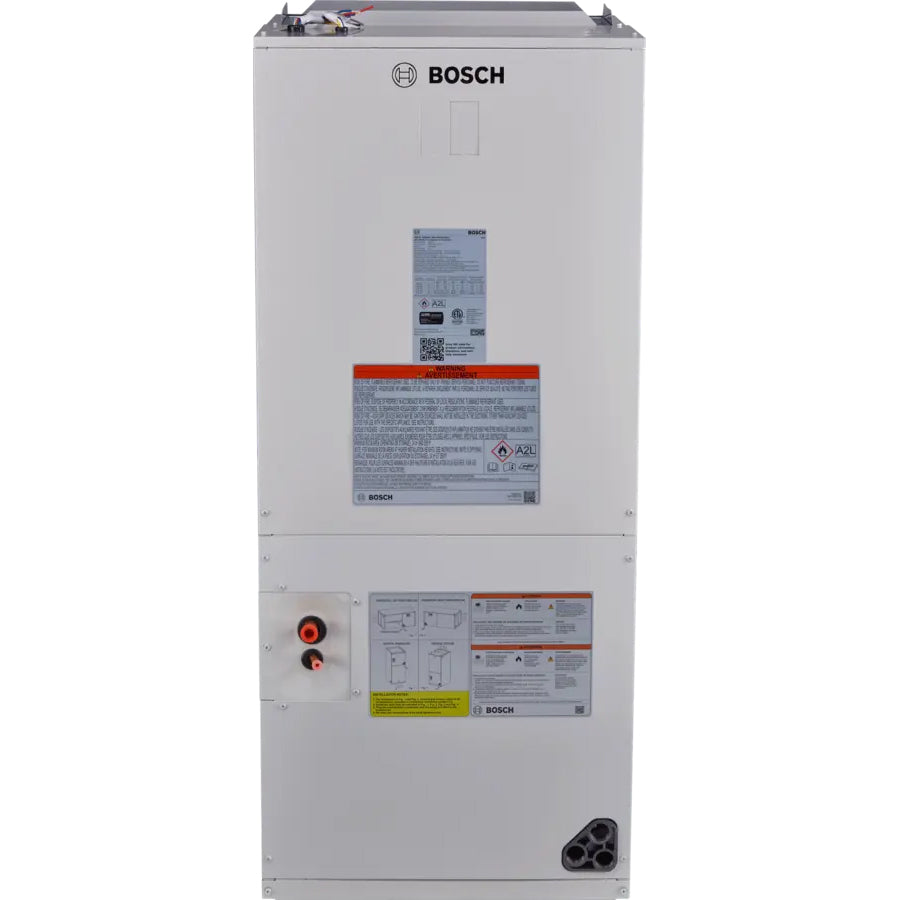

Bosch 8733965417 BIVA20 Premium Series Air Handler Unit 4 Ton 20 SEER2

Product Description

The Bosch BIVA20 pairs with the BOVA15 outdoor condensing unit to form the IDS Plus or the IDS Premium Connected, depending on the desired efficiency level. This 4 ton air handler unit is designed for horizontal, vertical or counterflow installation. The BIVA20 features foil-faced insulation, a five-stage ECM Constant Torque fan motor, and an all-aluminum air coil.

• Pairs with the BOVA15 outdoor condensing unit for IDS Plus (up to 18 SEER2) or the BOVA20 for IDS Premium Connected (up to 20 SEER2)
• Aluminum coils for superior corrosion resistance
• Standard ECM Constant Torque Fan Motor with 5 available speeds

Product Highlights

The Bosch BIVA20 air handler offers flexibility and advanced features for efficient and comfortable climate control. Designed for easy installation and long-lasting performance.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733965417

Technical Specifications

• Manufacturer Name: Bosch Thermotechnology
• Cooling Capacity: 47,000 BTU/hr
• Heating Capacity: 48,000 Btu/hr
• Nominal Capacity: 4 ton
• Filter Size: 20 x 22 in
• Liquid Line Size: 3/8 in
• Motor HP: 3/4 HP
• Mounting Type: floor
• Phase: 1
• Refrigerant Type: R-454B
• SEER2 Rating: 20
• Series: BIVA20
• Sound Level: 65 to 75.4 dBA
• Suction Line Size: 7/8 in
• Voltage Rating: 208 / 230 V
• Air Handler Type: Singular (1-Piece)
• Brand: Bosch
• Coil Construction: Aluminum
• Configuration: Multi-Position
• Electrical Characteristics: 208-230V 1Ph, 60Hz
• Motor Type: Multi-Speed Constant Torque (MCT) ECM
• Thermostat: 24V
• Cooling: Two
• Return Air Opening: 18-13/16" x 23-7/8" in.
• Supply Air Opening: 19-1/2" x 10-5/16 in.
