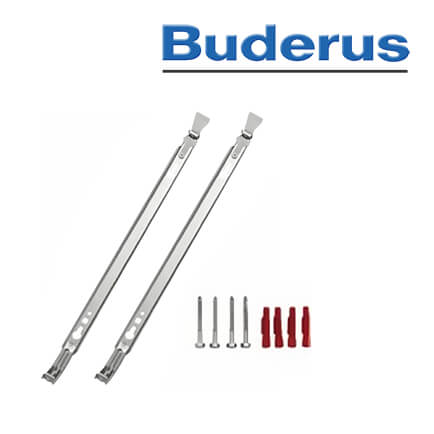

BOSCH 7738325249 FMS Radiator Mounting Bracket Set

Product Description

The BOSCH 7738325249 is a mounting bracket set designed for FMS (Fertigwand, Mehrreihig, Schnellkonsole) installation. This set is specifically suitable for multi-row flat radiators, enabling easy wall mounting. Key features include adjustment for uneven walls, integrated lift-off protection, and sound insulation. It is compatible with radiator types 20, 21, 22, 30, and 33, designed for a radiator height of six hundred mm.

• Compatible with multi-row flat radiators.
• Includes integrated lift-off protection and sound insulation.
• Designed for a radiator height of six hundred mm.

Product Highlights

This mounting bracket set effectively supports a secure radiator installation while minimizing sound transmission through solid wall mounting.

Product Information

Standard Information

• Manufacturer: Buderus
• Country of Origin: DE

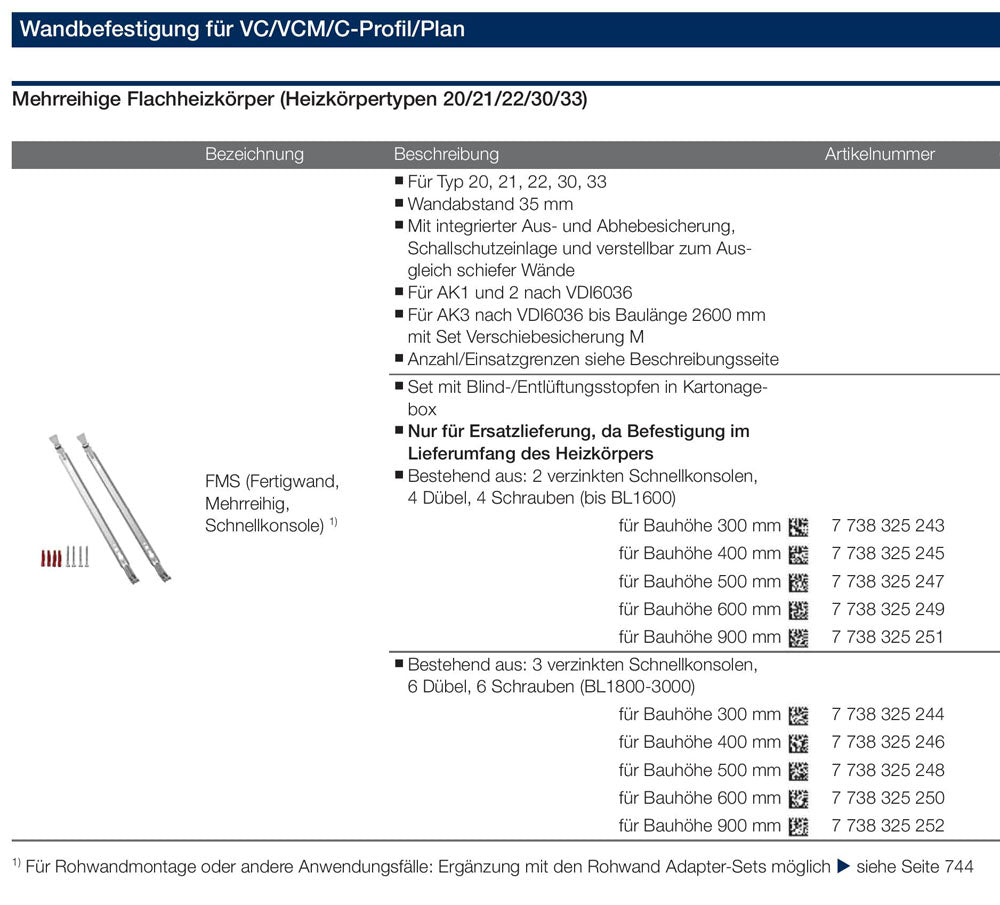

Technical Specifications

• Mounting Type: FMS (Fertigwand, Mehrreihig, Schnellkonsole)
• Radiator Type Compatibility: Types 20, 21, 22, 30, 33
• Radiator Height: 600 mm
• Maximum Radiator Length: Up to 1600 mm
• Wall Distance: 35 mm
• Item Weight: 1.09 kg
• Shipping Weight: 1.31 kg
