BOSCH 7738004851 BF3 Direct Vent Oil Burner for Buderus G115WS/4 Boiler

Product Description

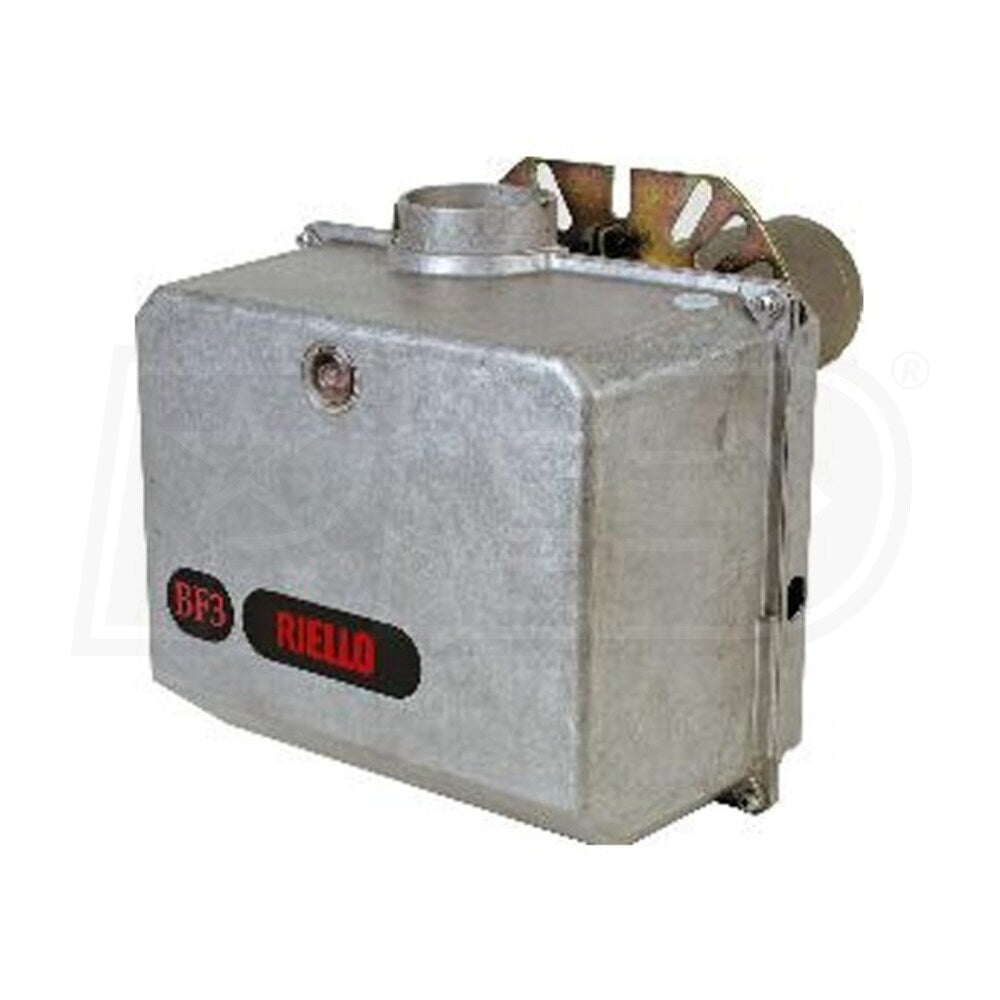

The Bosch 7738004851 is a direct vent oil burner that works with the Buderus G115WS/4 oil-fired boiler. This Riello BF3 model offers flexibility with direct or atmospheric venting options. The design includes Thermostream technology for added efficiency.

• For use with Buderus G115WS/4 oil-fired boilers
• Compatible with direct vent systems
• Enhanced performance through Thermostream design

Product Highlights

This oil burner is built to optimize heating for residential applications and supports the efficient operation of your boiler.

Product Information

Standard Information

• Manufacturer Part Number: 7738004851
• For Use with Buderus Boiler Model: G115WS/4

Technical Specifications

• Vent System: Direct Vent
• Insertion Depth: 6 inches
• Input BTU/hr: 112,000
• Firing Rate GPH: 0.80
• Head Setting: 3
• Specified Nozzle Type/Brand: Del. 0.60 x 60A
• Pump Pressure (psi): 185
• Air Setting (Air Gate): 5.25
• Gross Stack Temperature: 304F
• Vent Type: Direct Vent, Atmospheric Vent
• Maximum Input Capacity: 126,000 BTU
• Input Rate: 0.95 GPH
• Product Weight: 10 Pounds
• Parts Warranty: 5 Years
• Fuel Type: Oil
• Type: Water
• Heat Exchanger Material: Cast Iron
• BTU Input: 126,000
• BTU Output: 109,000
• Annual Fuel Usage Efficiency (AFUE): 87.0
• Domestic Hot Water: No
• Building Type: Residential
• Length: 28.625 inches
• Width: 23.625 inches
• Height of Boiler: 34.50 inches
• Vent Material: Galvanized, Stainless Steel, All Fuel
• Supply: Female Iron Pipe 1 1/4
• Return: Female Iron Pipe 1
• Vent Size: 5 inches
• Net BTU: 95,000
• Approximate Weight: 403 Pounds
