BOSCH 100XL Relief Valve

Product Description

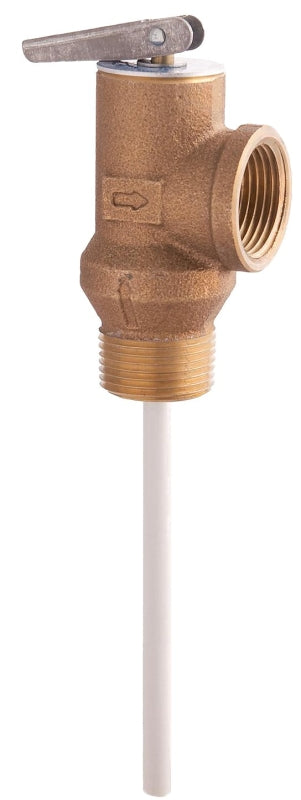

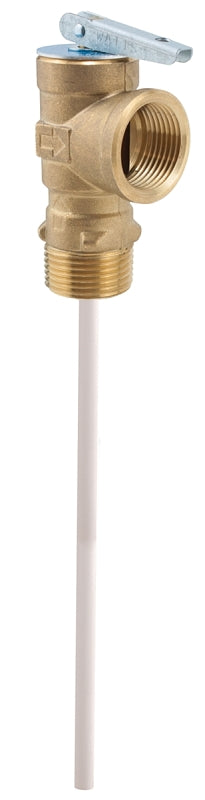

The BOSCH 100XL series relief valve provides essential temperature and pressure protection for hot water supply tanks and heaters with a capacity of up to one hundred five thousand BTU per hour. This valve is designed with male NPT inlet and female NPT outlet connections. It utilizes a thermostat with a thermo-bonded coating for reliability and includes a test lever for easy operation. The valve is ASME rated and CSA listed, ensuring it meets industry standards. It handles a temperature relief of two hundred ten degrees Fahrenheit and a pressure relief range from seventy-five to one hundred fifty psi.

• Automatic temperature and pressure protection for hot water systems.
• Features MNPT inlet and FNPT outlet for easy installation.
• Meets ASME and CSA safety standards.

Product Highlights

This relief valve is ideal for use in residential hot water systems, providing safety and peace of mind.

Product Information

Standard Information

• Brand: BOSCH
• MPN: 100XL

Technical Specifications

• Body Material: Bronze
• Connection Type: MNPT x FNPT
• Nominal Size: Three-fourths inch
• Operating Pressure: Seventy-five to one hundred fifty psi
• Temperature Rating: Two hundred ten degrees Fahrenheit
• Dimensions: One and three-fourths inches wide by seven and one-half inches high
• Application: For water heaters and hot water storage tanks
