Boneham SFT244FX Slip-fixed Drill Bushing 0.1935 in Id Steel

Product Description

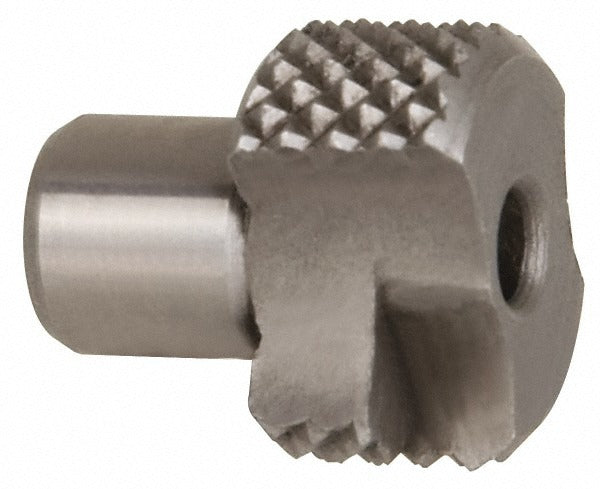

The BONEHAM SFT244FX is a slip-fixed drill bushing designed to guide cutting tools with precision during drilling, reaming, and boring operations. Built to SF industry standards, it features a 0.1935 inch inside diameter sized for a No. 10 wire gauge tool and a 3/8 inch body outside diameter. The bushing is machined from steel for durability in high-cycle jig and fixture applications. It includes a head style design with a 5/8 inch head outside diameter and a 1/4 inch head height, and the body measures 1/4 inch in length under the head. Installation is slip-fit, allowing the bushing to be removed and replaced without special press tooling. Machinists, toolmakers, and fixture builders typically specify this component.

This bushing is suited for use in drill jig plates and tooling fixtures where repeatable hole location is critical. It is appropriate for both production and prototype environments in metal fabrication, aerospace, automotive, and general machining shops. The slip-fixed configuration allows the bushing to be locked in place during a drilling operation using a compatible lock screw, then removed when the operation is complete. Inside diameter tolerance is held to a tight plus 0.0001 to plus 0.0004 inch range, making it a reliable choice for applications requiring consistent tool guidance across multiple workpieces.

Key Features

• SF industry code slip-fixed configuration allows tool-free removal between operations
• Inside diameter of 0.1935 inches held to plus 0.0001 to plus 0.0004 inch tolerance for precise tool guidance
• 3/8 inch body outside diameter with 5/8 inch head outside diameter for positive seating in jig plate
• 1/4 inch length under head suits standard jig plate thicknesses
• Steel construction provides wear resistance in repetitive drilling applications
• Compatible with LS-TW-2 lock screw for secure retention during cutting operations
• Renewable bushing design supports in-place replacement without full fixture rework

Compatibility

Designed for use with LS-TW-2 compatible lock screws in standard SF-series slip-fixed drill jig bushing applications. Fits jig plates bored to accept a 3/8 inch body outside diameter slip-fixed liner bushing.
