Boneham AM00001128 Slip-fixed Drill Bushing Sfm

Product Description

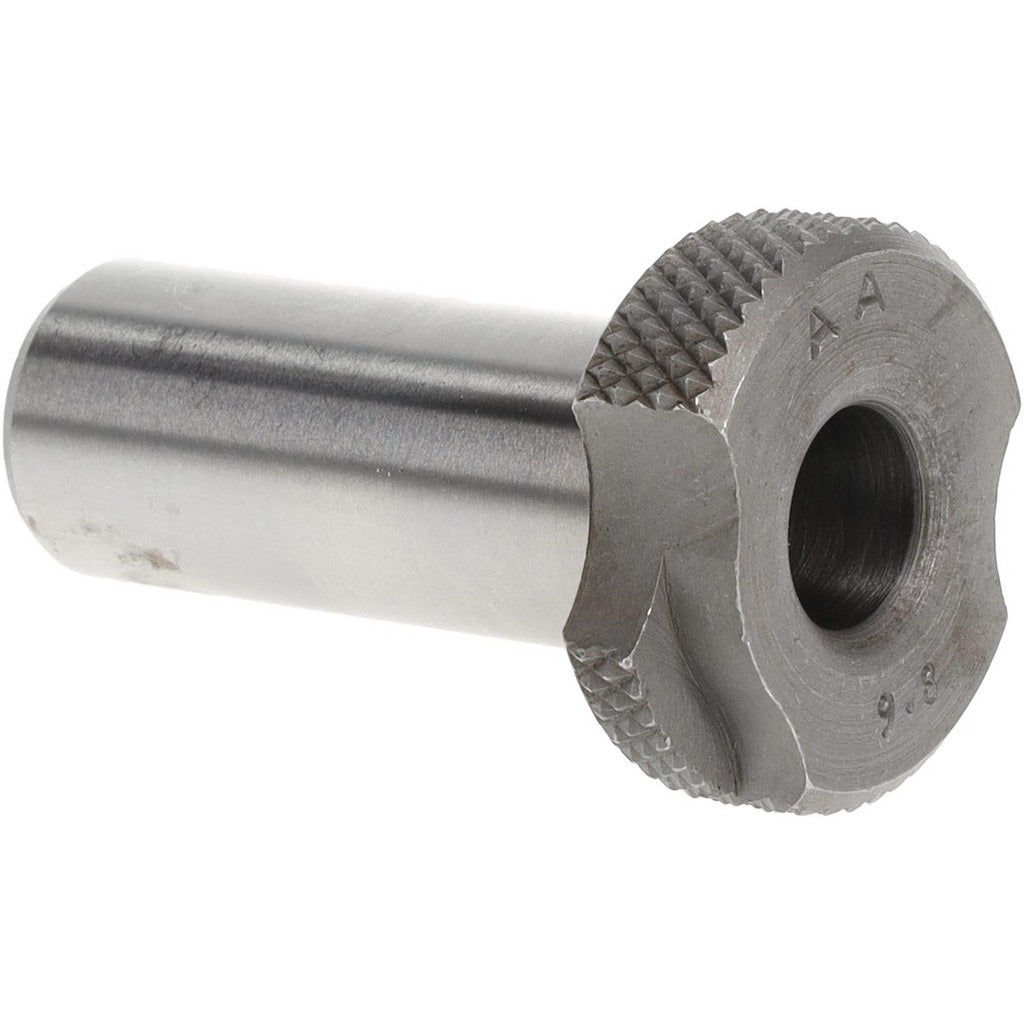

The BONEHAM AM00001128 is a slip-fixed drill bushing manufactured to SFM industry standards. It is used in jig and fixture tooling to guide cutting tools accurately and repeatedly during drilling, reaming, and boring operations. The bushing features a 9.8 mm inside diameter, a 15 mm body outside diameter, and a 36 mm length under the head. It is classified as a renewable bushing, meaning it can be removed and replaced without disturbing the liner bushing installed in the jig plate. Machinists, tool-and-die makers, and precision fabricators working in production or maintenance environments typically install and service this component.

This bushing is suited for fixed or rotating jig plate applications where a slip-renewable configuration is required. The SFM designation indicates a standard slip-fixed style with a head, appropriate for applications where the bushing must be locked in position during the machining operation but can be replaced between operations or at end of tool life. It is commonly found in production drilling fixtures across metalworking, aerospace, automotive, and general manufacturing environments.

Key Features

• SFM industry code — slip-fixed style with head for positive retention during drilling
• 9.8 mm inside diameter for precise cutting tool guidance
• 15 mm body outside diameter for standard liner bushing fitment
• 36 mm length under head provides extended tool guidance in thicker jig plates
• Renewable bushing design allows replacement without disturbing the liner bushing

Compatibility

Designed as an OEM-style renewable slip-fixed bushing for use with standard SFM-series liner bushings in drill jig and fixture tooling applications.

Installation Notes

Installation and removal should be performed by a qualified machinist or tooling technician using the appropriate bushing driver and lock screw hardware. Ensure the mating liner bushing is clean and free of burrs before seating the slip-fixed bushing to avoid damage to either component. Do not hammer the bushing directly — use a proper installation press or driver to avoid distortion of the bore. Follow shop-floor tooling maintenance procedures and manufacturer guidelines for torque and retention hardware.
