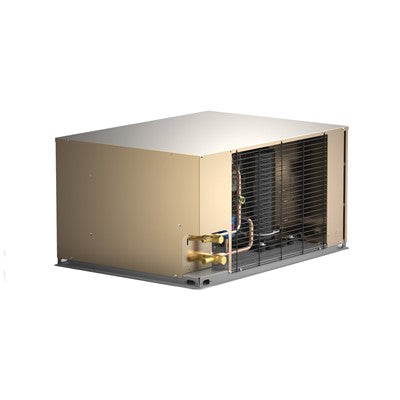

Bohn LCH0060MCACZA0000 Air-Cooled Condensing Unit 6 HP R404A

Product Description

The Bohn LCH0060MCACZA0000 is an air-cooled condensing unit suited for outdoor setups. This unit features a robust Copeland Scroll compressor, making it effective for medium temperature settings. It works efficiently with R404A and R507A refrigerants and operates on 208-230/3/60 voltage. The design includes a receiver and allows for easy serviceability with externally mounted piping connections and accessible cabinets.

• Utilizes a Copeland Scroll compressor.
• Designed for outdoor air-cooled operation.
• Compatible with R404A and R507A refrigerants.

Product Highlights

The LCH0060MCACZA0000 supports various installation needs and is built for reliability and performance across different applications.

Product Information

Standard Information

• Brand: Bohn
• MPN: LCH0060MCACZA0000

Technical Specifications

• Product Type: Air-Cooled Condensing Unit
• Product Category: Condensing Units and Packaged Systems
• Operating Range: Low Temperature
• Compressor Type: Scroll
• Voltage: 208-230/3/60
• Condenser Coil Type: Microchannel Coil
• Capacity BTUH: 22,520
• Dimensions: Height: 29.25 inches, Depth: 30.25 inches, Width: 43.875 inches
• Approx Net Weight: 327 lbs
• Receiver Included: Yes
• Horsepower: 6
