Bohn BEL0100BS6EMAB0000 Low Profile Unit Cooler 9,900 BTUH

Product Description

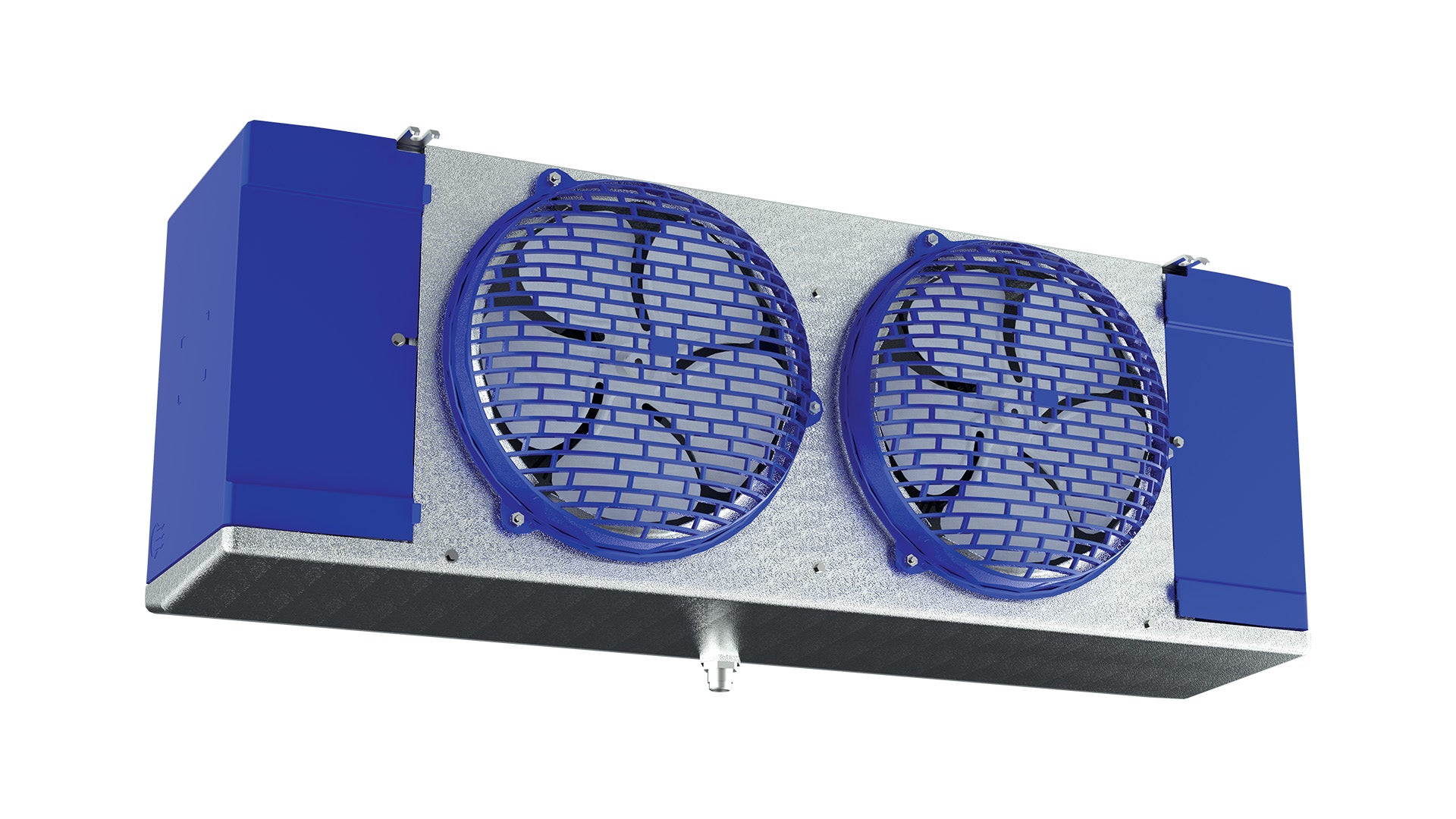

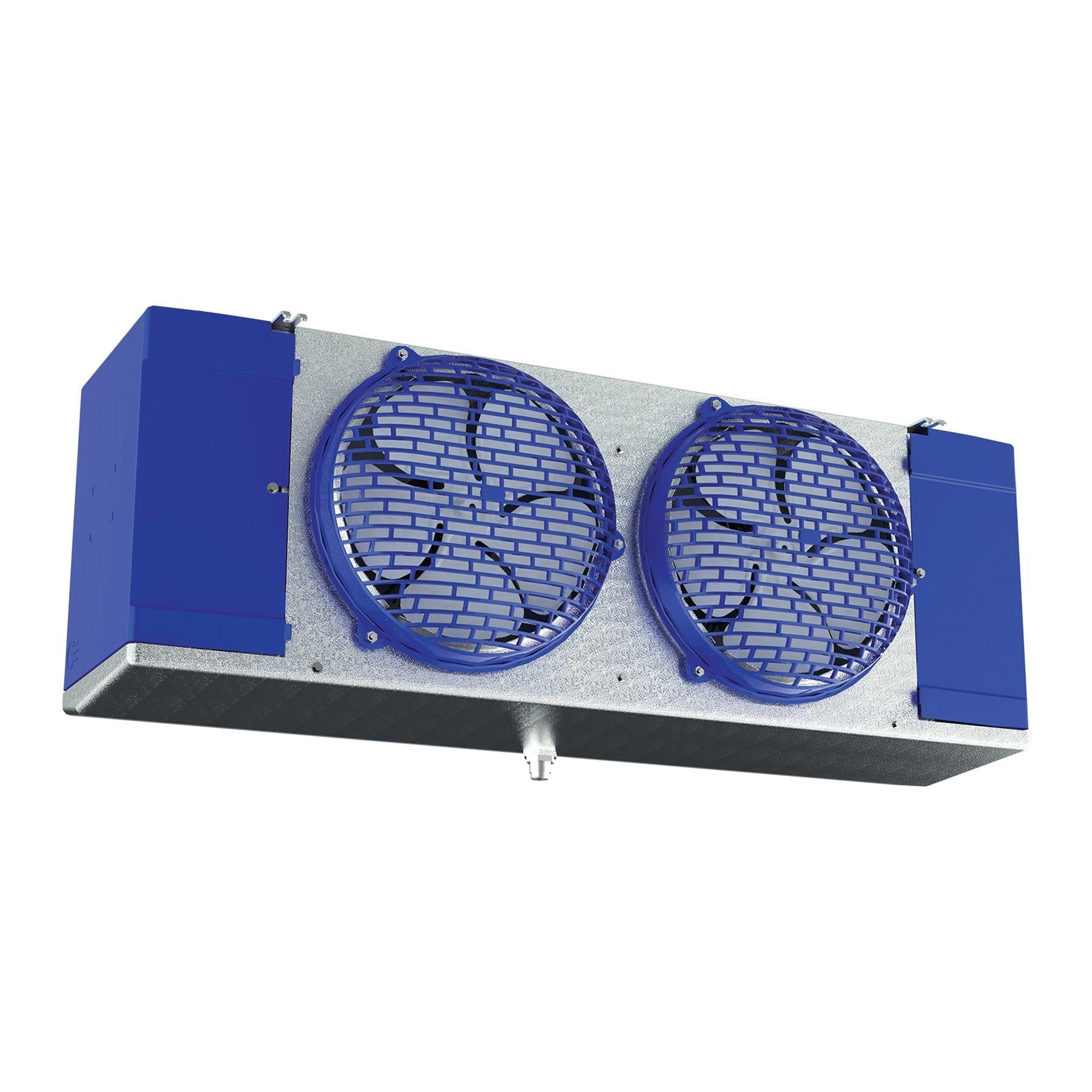

The BOHN BEL0100BS6EMAB0000 low profile unit cooler is engineered for efficiency and improved air circulation. Designed for cooler applications, this unit cooler features electric defrost. It operates at 208-230/1/60 voltage and utilizes R-448A refrigerant. It has a capacity of 9,900 BTUH and a CFM of 1,281.

• Engineered for efficiency and improved air circulation.
• Features hinged and removable access panels and a hinged drain pan.
• Equipped with an easy service motor mount.

Product Highlights

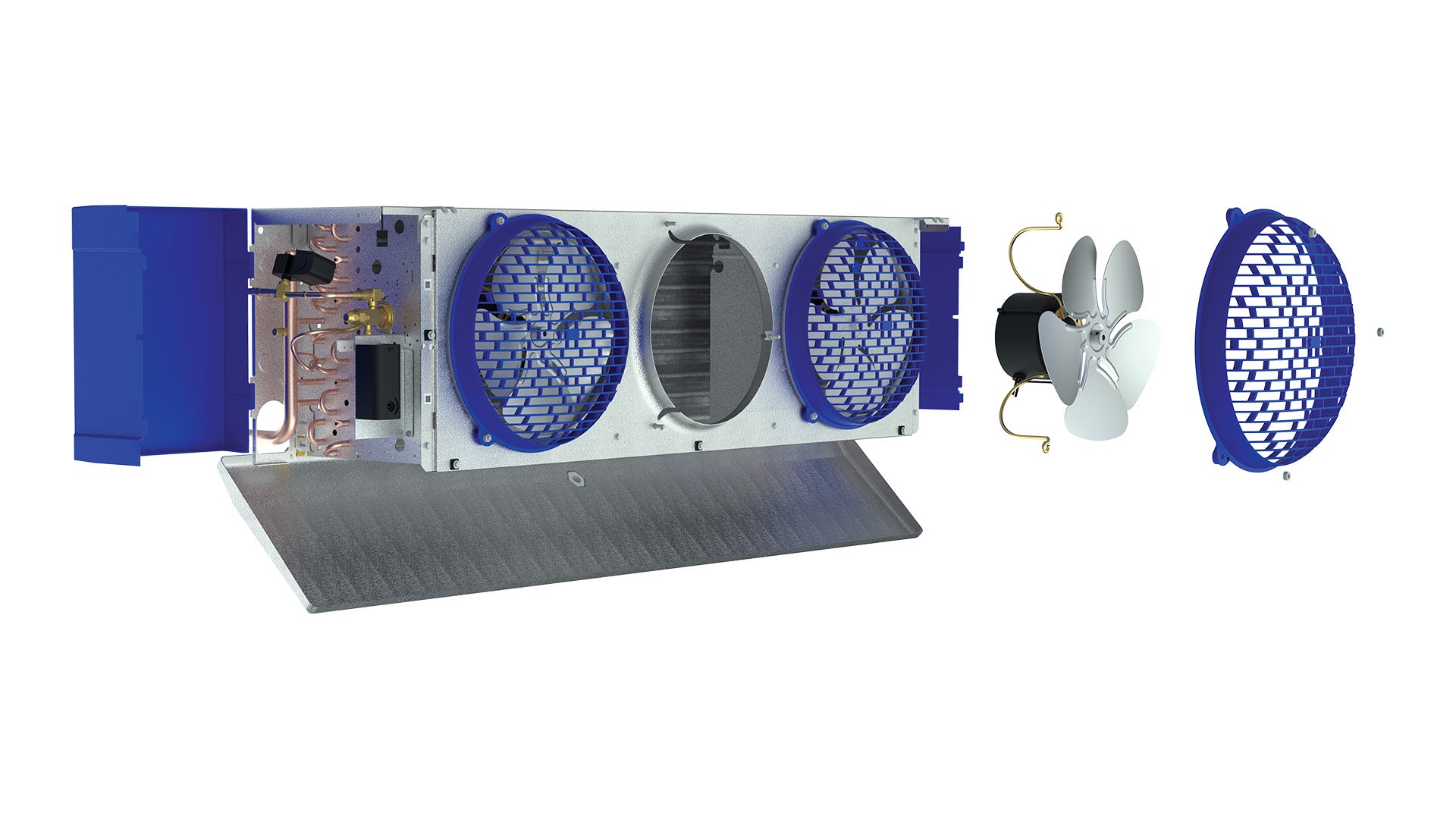

This BOHN unit cooler includes hinged access panels, a hinged drain pan, and an easy-service motor mount to reduce maintenance time.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BEL0100BS6EMAB0000
• Country of Origin: N/A

Technical Specifications

• Product Brand: Bohn
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Classification: current
• Application: Cooler
• Voltage: 208-230/1/60
• Defrost Type: Electric Defrost
• FPI: 6
• Dual Rated: true
• Rating Point F: 10°F TD 25°F SST
• Refrigerant: R-448A
• Capacity BTUH: 9,900
• CFM: 1,281
• Height (In.): 16.4375
• Depth In: 13.25
• Length (in.): 45.5
• Est Net Weight (lbs): 58.6
• Motor Type: ECM
• No Of Fans: 2
• Motor HP: 1/20
• Unit MCA: 1.1
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 110
• Motor Amps: 1
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 9.1
• Defrost Heater Watts: 2100
• Coil Inlet OD: 1/2
• Suction Od: 7/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4
• Coil Type: Aluminum Fin, Copper Tube
• Connection Size: 3/4 in
• Connection Type: MPT
• Fins per Inch: 6 FPI
• Frequency Rating: 60 Hz
• HP Rating: 1/20 hp
• Material: Stainless Steel
• Number of Speeds: 2
• Phase: 1 ph
• Power Rating: 110 W
• Temperature Rating: 10 to 25 deg F
