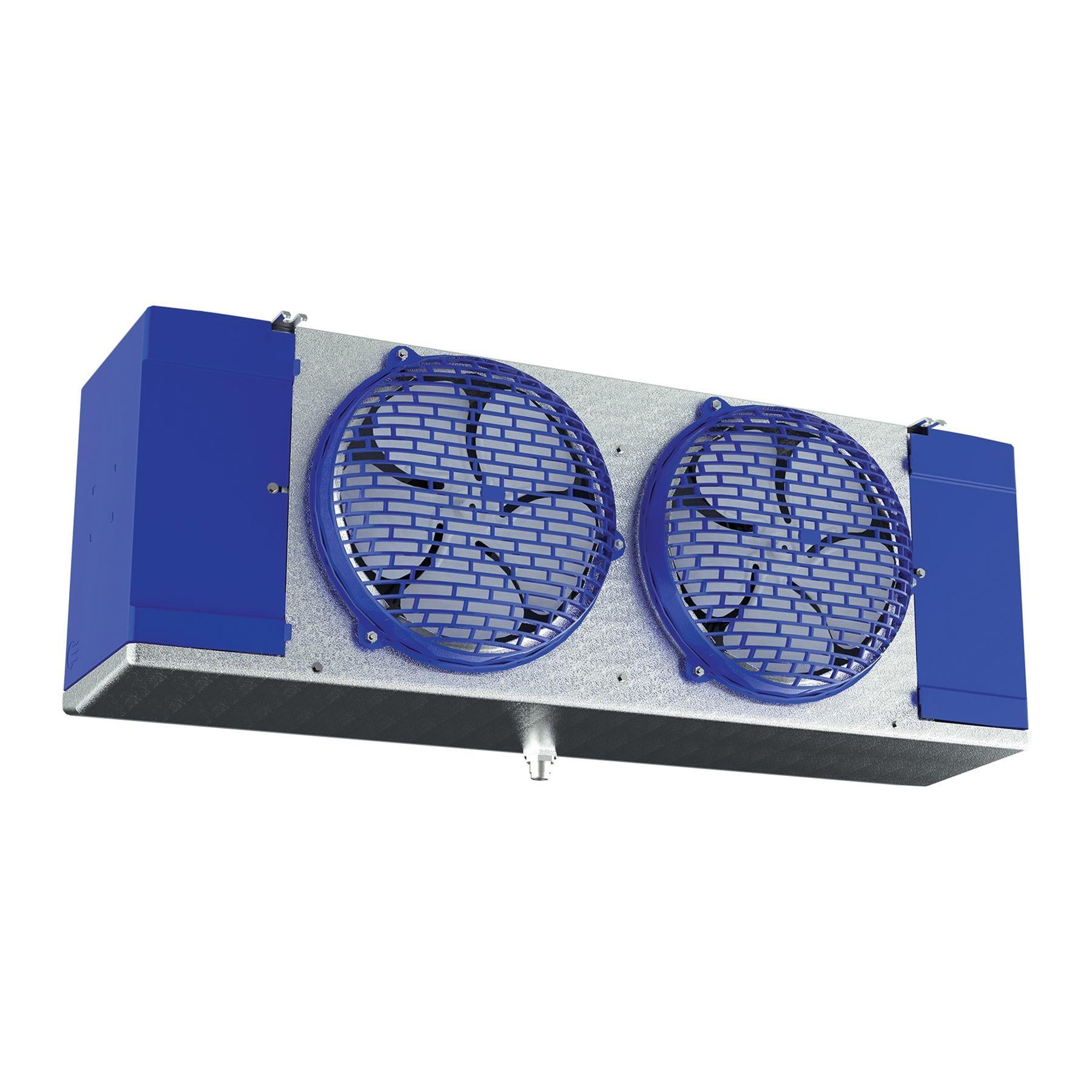

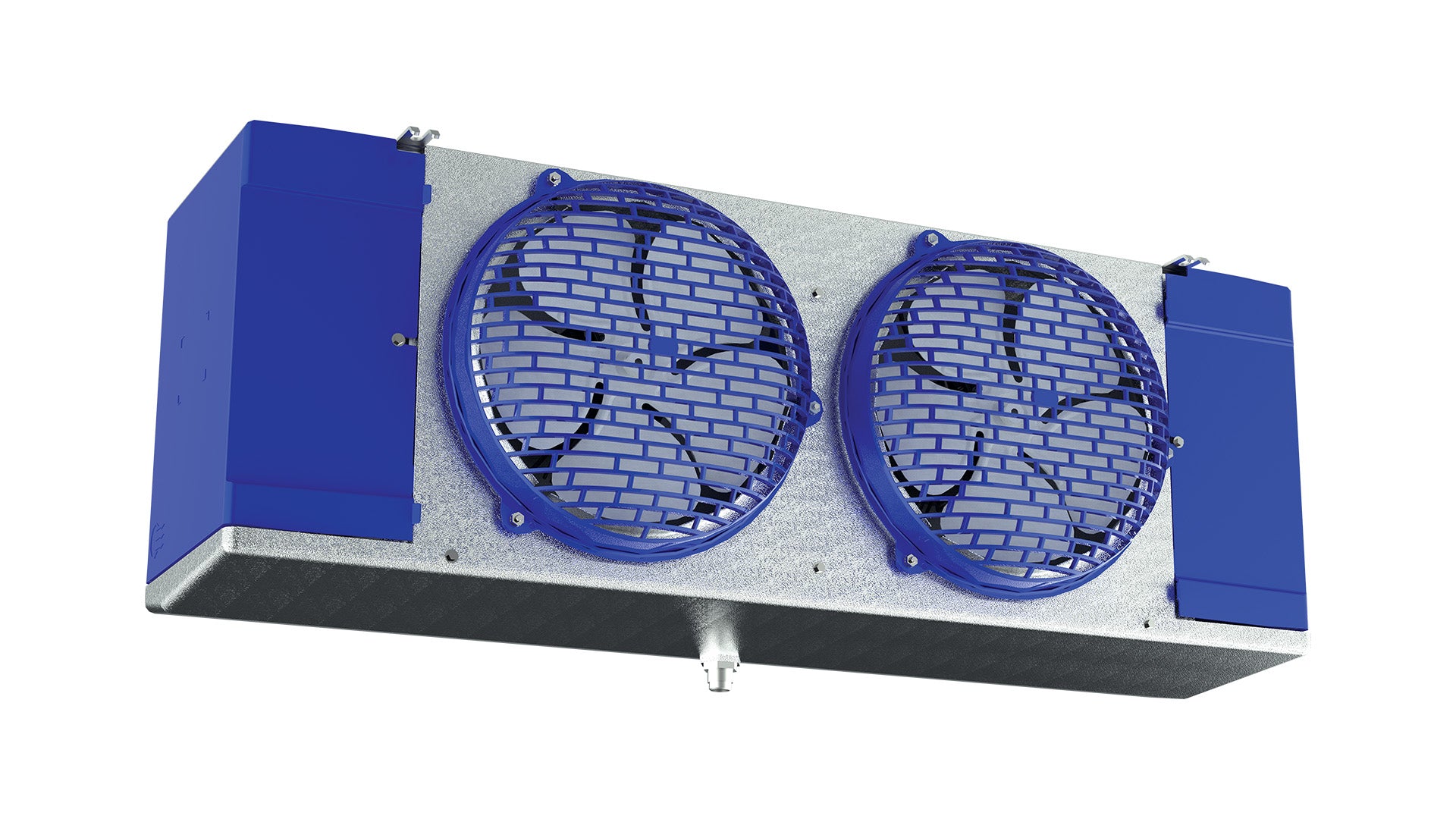

Bohn BEL0080BS6EMAB0200 Low Profile Unit Cooler 8,400 BTUH

Product Description

The BOHN BEL0080BS6EMAB0200 is a low-profile unit cooler engineered for efficiency and improved air circulation. Designed for cooler applications, it features hinged and removable access panels, a hinged drain pan, and an easy-service motor mount. This unit cooler utilizes R-448A refrigerant and has an electric defrost type. It operates at 208-230/1/60 voltage and delivers a capacity of 8,400 BTUH with a CFM of 1,371.

• Engineered for efficiency and improved air circulation.

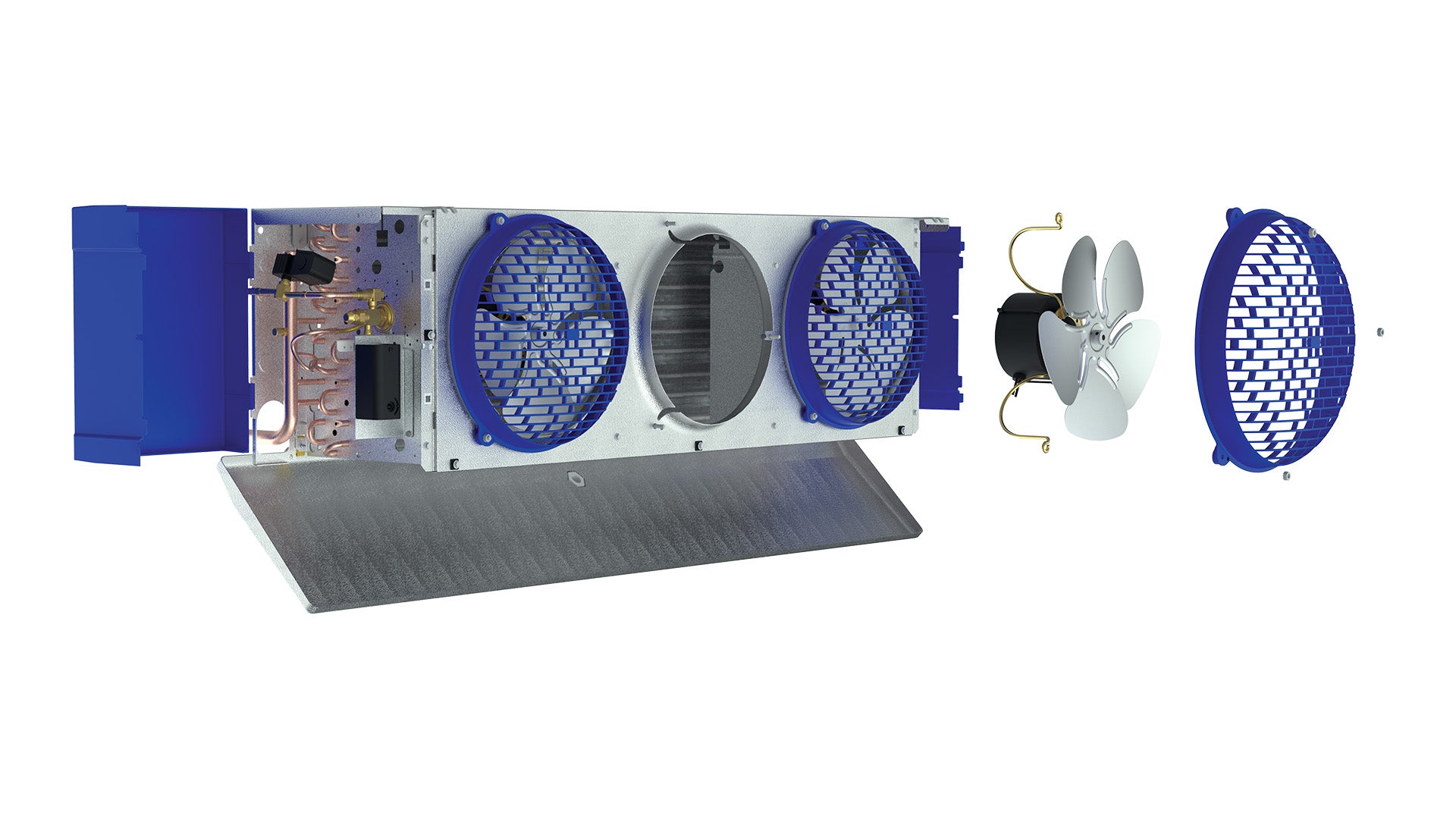

• Features hinged and removable access panels and a hinged drain pan.
• Equipped with an easy service motor mount.

Product Highlights

The BOHN BEL0080BS6EMAB0200 low-profile unit cooler is designed for efficiency, improved air circulation, and easy maintenance in cooler applications.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BEL0080BS6EMAB0200
• Country of Origin: N/A

Technical Specifications

• Brand: Bohn
• MPN: BEL0080BS6EMAB0200
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Application: Cooler
• Voltage: 208-230/1/60
• Defrost Type: Electric Defrost
• FPI: 6
• Rating Point F: 10°F TD 25°F SST
• Refrigerant: R-448A
• Capacity BTUH: 8,400
• CFM: 1,371
• Height (In.): 16.4375
• Depth In: 13.25
• Length (in.): 45.5
• Motor Type: ECM
• Number of Fans: 2
• Motor HP: 1/20
• Unit MCA: 1.1
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 110
• Motor Amps: 1
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 9.1
• Defrost Heater Watts: 2100
• Coil Inlet OD: 1/2
• Suction OD: 5/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4
• Coil Type: Aluminum Fin, Copper Tube
• Connection Size: 3/4 in
• Connection Type: MPT
• Fins per Inch: 6 FPI
• Frequency Rating: 60 Hz
• HP Rating: 1/20 hp
• Material: Stainless Steel
• Number of Speeds: 2
• Phase: 1 ph
• Power Rating: 110 W
• Refrigerant Type: R-404A, R-448A, R-449A
• Temperature Rating: 10 to 25 deg F
