Bohn BEL0080BS6EMAB0000 Low Profile Unit Cooler 8,400 BTU

Product Description

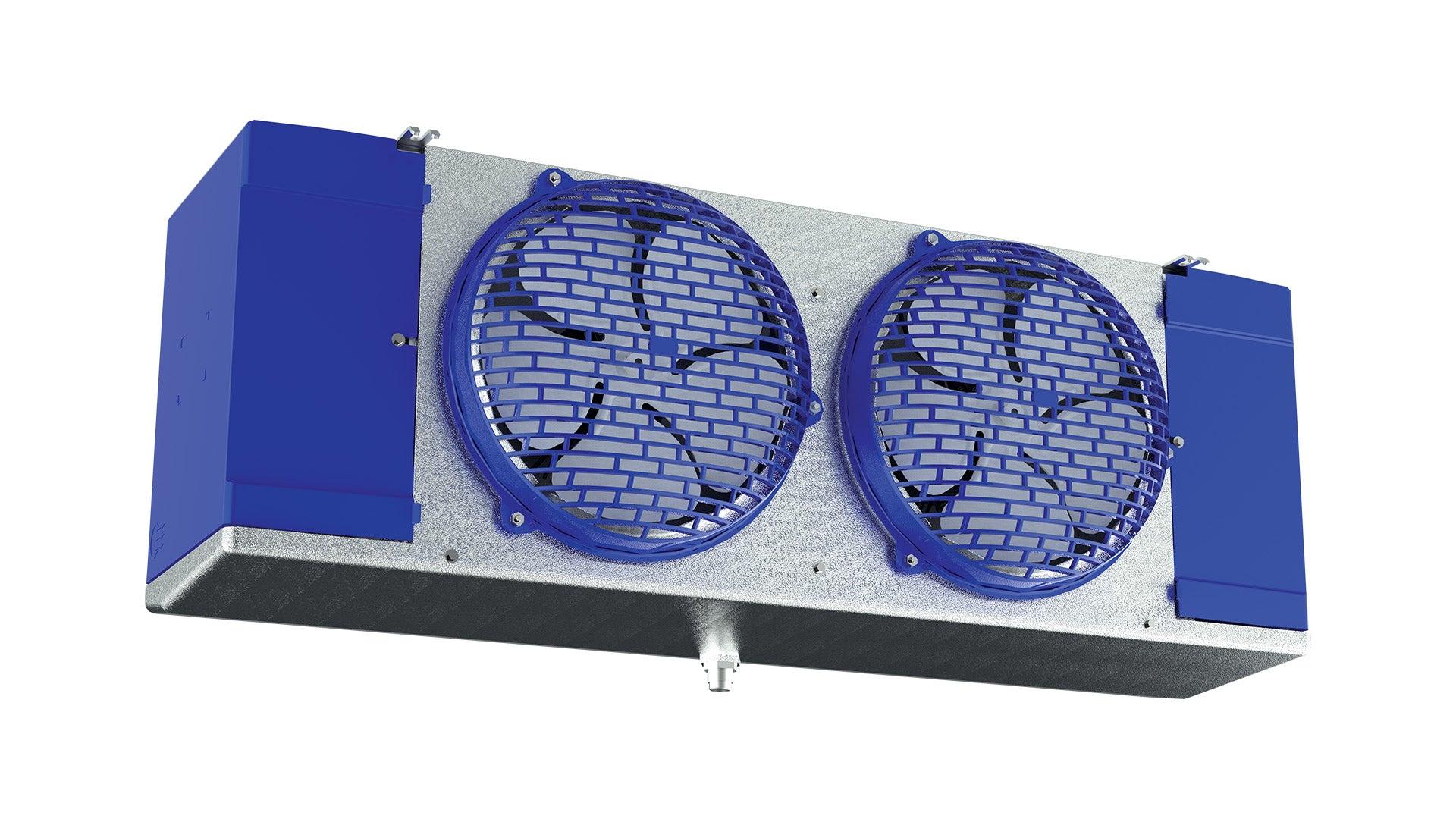

The BOHN BEL0080BS6EMAB0000 is a low-profile unit cooler engineered for improved air circulation and efficiency. Designed for cooler applications, it features hinged and removable access panels, a hinged drain pan, and an easy-service motor mount. This unit cooler is designed for use with R-448A refrigerant and has an electric defrost type.

• Engineered for efficiency and improved air circulation.

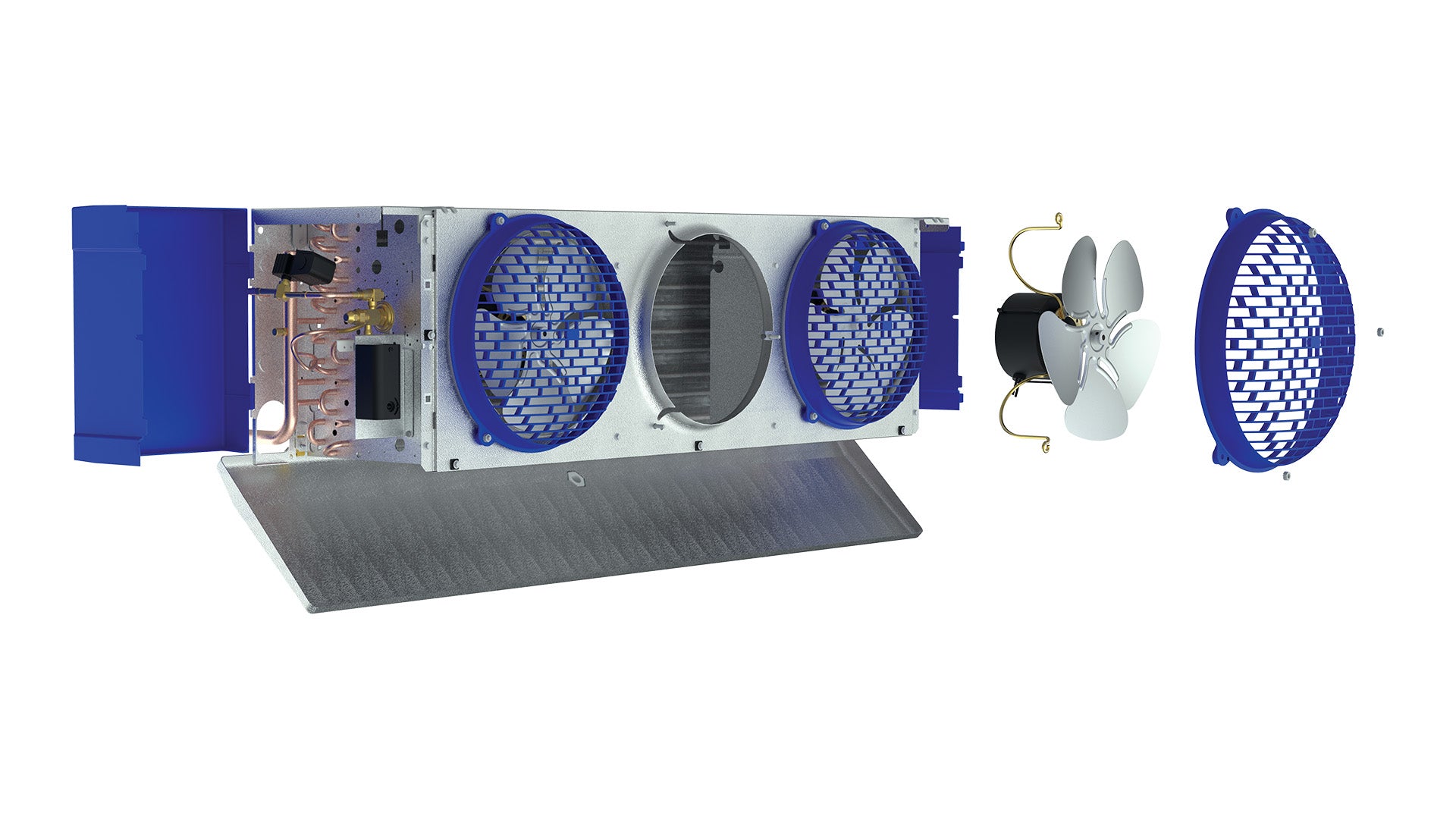

• Features hinged and removable access panels and a hinged drain pan.
• Equipped with an easy service motor mount.

Product Highlights

This low-profile unit cooler is ideal for walk-in coolers, offering efficient cooling and easy maintenance with its accessible design and electric defrost.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BEL0080BS6EMAB0000

Technical Specifications

• Brand: Bohn
• MPN: BEL0080BS6EMAB0000
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Classification: current
• Application: Cooler
• Input Voltage: 208-230/1/60
• Defrost Type: Electric Defrost
• FPI: 6
• Dual Rated: true
• Rating Point F: 10°F TD 25°F SST
• Refrigerant: R-448A
• Capacity BTUH: 8,400
• CFM: 1,371
• Height (In.): 16.4375
• Depth In: 13.25
• Length (in.): 45.5
• Motor Type: 2-Speed EC
• Number of Fans: 2
• Motor HP: 1/20
• Unit MCA: 1.1
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 110
• Motor Amps: 1
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 9.1
• Defrost Heater Watts: 2100
• Coil Inlet OD: 1/2
• Suction Od: 5/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4
• Voltage: 208-230V
• Amperage Rating: 1 A
• BTU Rating: 8400 Btu/hr
• CFM Rating: 1371 cfm
• Coil Type: Aluminum Fin, Copper Tube
• Connection Size: 3/4 in
• Connection Type: MPT
• Fins per Inch: 6 FPI
• Flow Rate: 2329 cu-m/hr
• Frequency Rating: 60 Hz
• HP Rating: 1/20 hp
• Material: Stainless Steel
• Phase: 1 ph
• Power Rating: 110 W
• Refrigerant Type: R-448A
• Temperature Rating: 10 to 25 deg F
• Voltage Rating: 208 to 230 V
• Additional Information: Electric Defrost Style, 15 A Maximum Overcurrent Protection Device, 1.1 A Minimum Current Ampacity, 5/8 in Suction, 1/2 in Coil Inlet, 1/4 in External Equalizer
