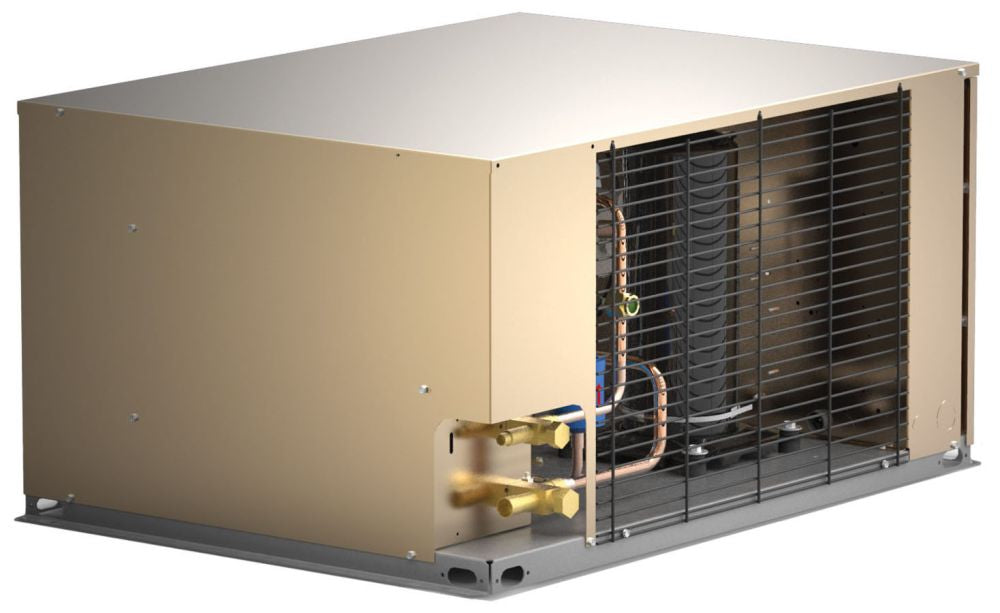

Bohn BCH0060MCACZA0000 Air-Cooled Condensing Unit 6 HP

Product Description

The BOHN BCH0060MCACZA0000 is an air-cooled condensing unit designed for flexibility and serviceability. Equipped with a Copeland Scroll compressor, it is suitable for medium temperature applications. The unit features externally mounted piping connections and removable cabinets for component access. It utilizes microchannel coil technology and is designed for use with multiple refrigerants. The unit is leak-tested in a helium environment and bump tested.

• Designed for horizontal air discharge
• Features a painted steel cabinet for corrosion protection
• Includes a receiver with fusible plug, liquid shutoff valve, and charging port

Product Highlights

Air-cooled condensing unit with Copeland Scroll compressor for medium temperature applications. Features include microchannel coil technology and a painted steel cabinet.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0060MCACZA0000
• Country of Origin: N/A

Technical Specifications

• Brand: Bohn
• MPN: BCH0060MCACZA0000
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: Medium Temp
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Compressor Model Number: ZS45K4E-TF5
• Voltage: 208-230/3/60
• Cabinet: C3
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95° F Ambient 25° F SST
• Ambient Temperature F: 95° F
• Suction Temperature F: 25° F
• Capacity BTUH: 51,800
• Meets Minimum Awef: TRUE
• Refrigerant: R-404A
• Height (In.): 29.25
• Depth In: 30.25
• Width (In.): 43.875
• Receiver Capacity 90 % Full (Lbs.): 20
• Sound Data Dba: 63
• Compressor RLA: 21.47435897
• Compressor LRA: 156
• Fan Motor Qty: 1
• Fan Motor Fla: 3.5
• MCA: 30.3
• MOPD: 50
• Liquid Od: 0.5
• Suction Od: 1.125
• Connection Liquid (In.): 1/2
• Connection Suction (In.): 1 1/8
• Horsepower: 6
• Receiver Included: Yes
• Cooling Capacity: 51800 BTU/Hour
• Enclosure Finish: Galvanized
• Frequency Rating: 60 Hertz
• Number of Phases: 3
• Amperage Rating: 30.3 A
• Finish: Painted
• Material: Steel
• Sound Level: 63 dBA
• Temperature Rating: 95 deg F
