Product Description

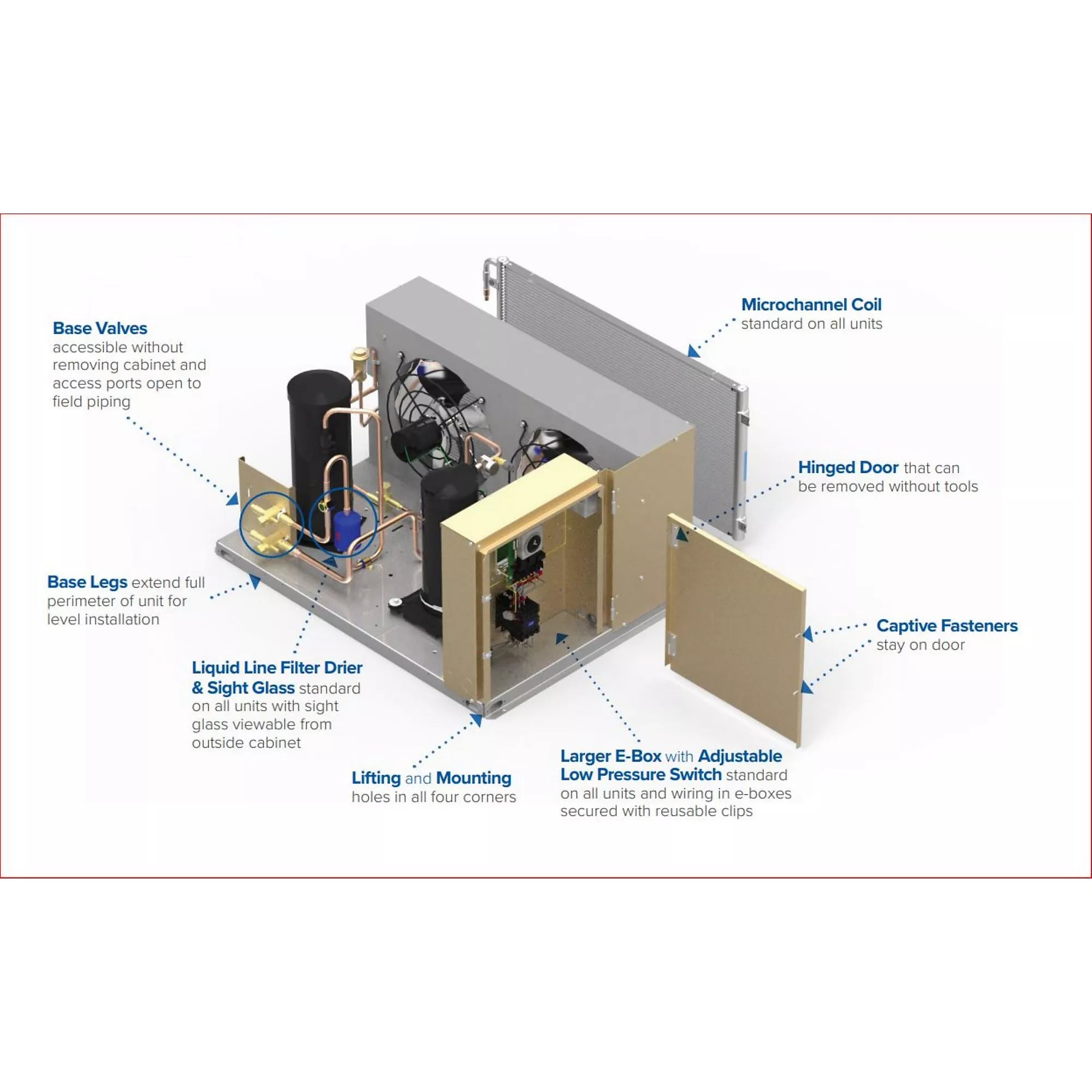

The BOHN BCH0030LCACZA0000 is an air-cooled condensing unit designed for outdoor use. It utilizes a Copeland Scroll compressor and is suitable for medium or low-temperature applications. The unit features a microchannel coil and a painted steel cabinet. It is equipped with a receiver with a fusible plug and a liquid shutoff valve. It is designed for outdoor installation.
- Features a Copeland Scroll compressor.

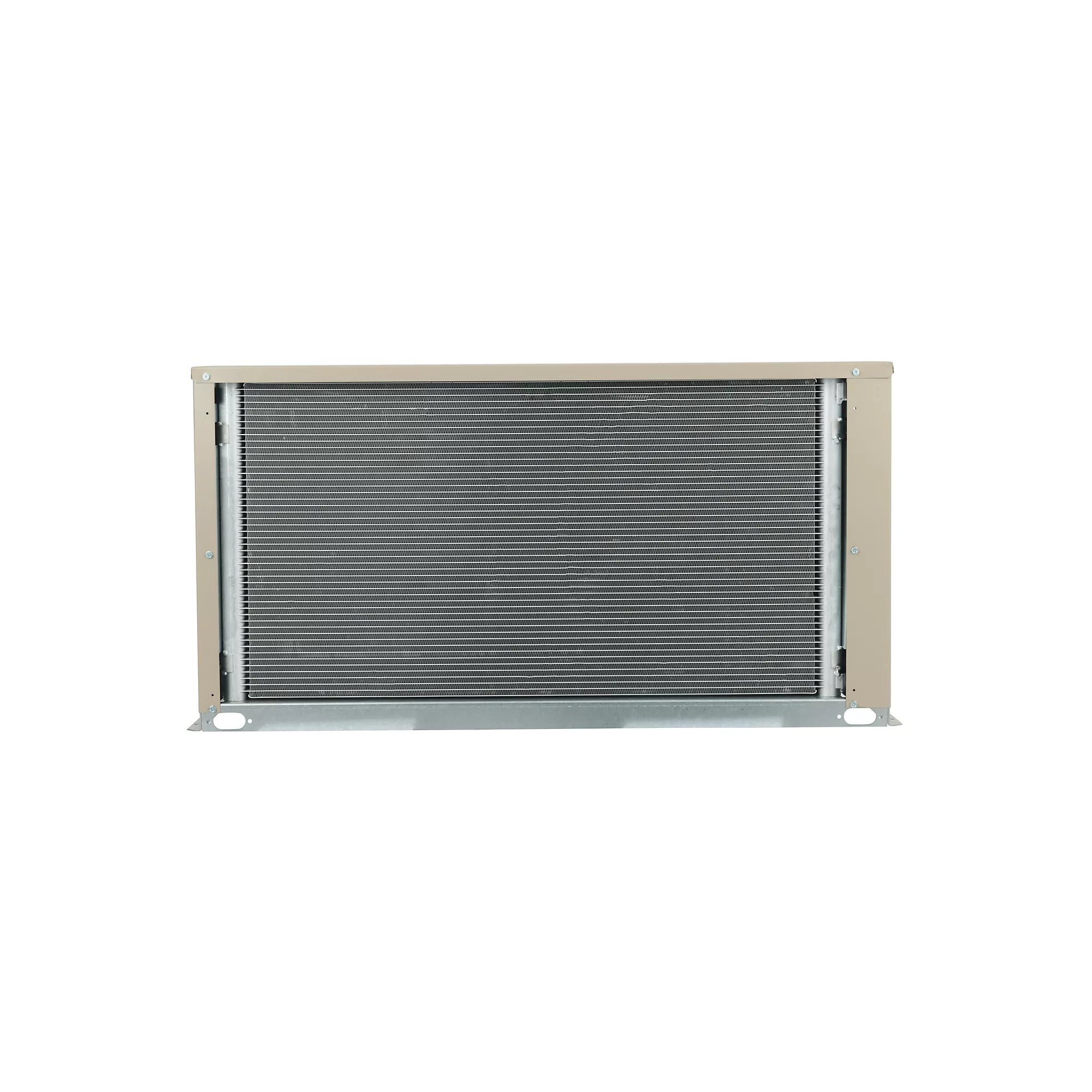

- Equipped with a microchannel coil.
- Designed for outdoor installation.
Product Highlights
Air-cooled condensing unit with Copeland Scroll compressor, microchannel coil, and painted steel cabinet, designed for outdoor installation.
Product Information
Standard Information
-
Brand: BOHN
-
Manufacturer Part Number: BCH0030LCACZA0000
-
Country of Origin: USA
Technical Specifications
-
Brand: Bohn
-
Manufacturer Part Number: BCH0030LCACZA0000
-
Product Type: Air-Cooled Condensing Units
-
Product Category: Condensing Units and Packaged Systems
-
Product Style: 0.5 - 6 HP Horizontal Air Discharge
-
Product Classification: current
-
Application: freezer, Medium Temp
-
Operating Range: Low Temperature
-
Compressor Type: Scroll
-
Compressor Model Number: ZF09K4E-PFV, ZS21KAE
-
Voltage: 208-230 VAC
-
Cabinet: C2
-
Condenser Coil Type: Microchannel Coil
-
Rating Point: 95° F Ambient -20° F SST
-
Ambient Temperature F: 95° F
-
Suction Temperature F: -20° F
-
Capacity BTUH: 10,620
-
Meets Minimum Awef: TRUE
-
Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
-
Height (In.): 19.75
-
Depth In: 28.25
-
Width (In.): 39.125
-
Receiver Capacity 90 % Full (Lbs.): 14, 20
-
Sound Data Dba: 64
-
Compressor RLA: 12.82051282
-
Compressor LRA: 88
-
Fan Motor Qty: 2
-
Fan Motor Fla: 1
-
MCA: 37.5
-
MOPD: 40
-
Liquid Od: 0.5
-
Suction Od: 0.875
-
Horsepower: 3
-
Connection Liquid (In.): 1/2
-
Connection Suction (In.): 7/8
-
Receiver Included: Yes
-
Application Temperature: Low Temperature
-
Compressor HP: 3 HP
-
Condenser Location: Outdoor
-
Condenser Motor Type: PSC (Permanent Split Capacitor)
-
Condenser Type: Air-Cooled
-
Cycle/Hertz: 60 Hz
-
Energy Star Rated: No
-
Liquid Line Size (OD): 1/2"
-
Phase: Three
-
Prop 65: Yes
-
Rated Load Amps (RLA): 9.9
-
Suction Line Size (OD): 7/8"
-
UL Listed: Yes
-
UL Recognized: No
-
UOM: EA
-
Compressor: Scroll
-
Type: Condensing Unit
