Bohn BCH0025MBACZA0000 Condensing Unit 2 hp

Product Description

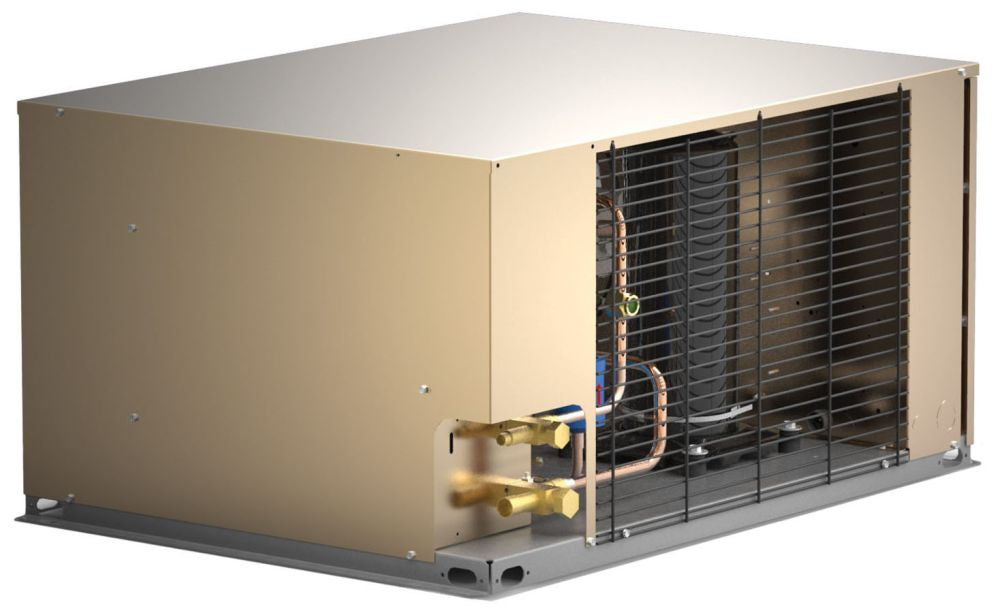

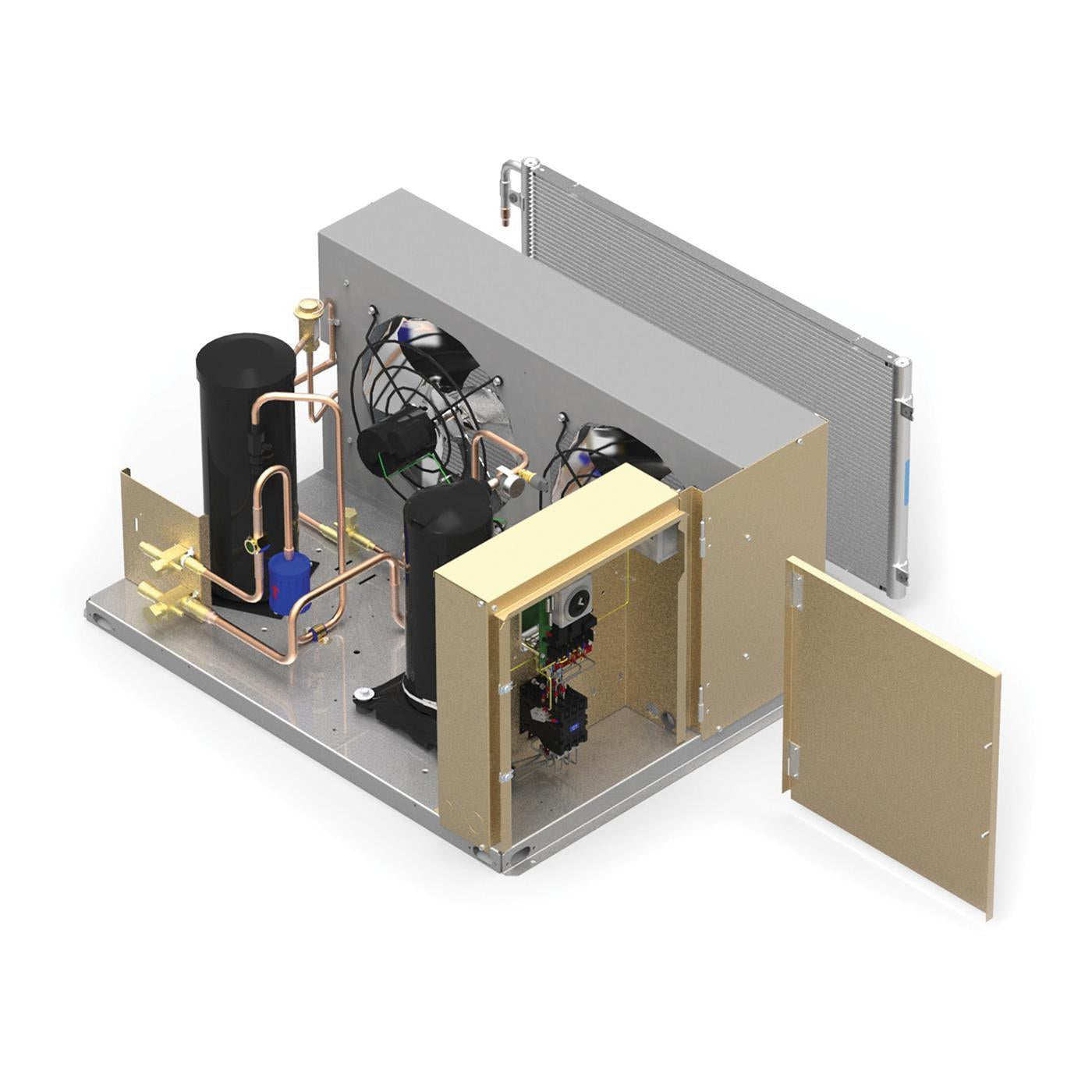

The BOHN BCH0025MBACZA0000 condensing unit, designed for flexibility and serviceability, features Copeland Hermetic reciprocating or scroll compressors and LG scroll compressors. These air-cooled units are suitable for medium or low-temperature applications with pre-configured or custom configurations. Piping connections are externally-mounted, and cabinets are removable for easy access. Operates at 208 to 230 V, 21.2 A, and delivers 22860 Btu/hr BTU.

• Microchannel coil technology standard on all units
• Painted steel cabinets for superior strength and corrosion protection
• Heavy-duty, steel, 1-1/2 in tall-base

Product Highlights

Air-cooled condensing unit with Copeland Scroll Compressor, designed for medium temperature applications. Features externally-mounted piping connections and removable cabinets for easy service access.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0025MBACZA0000

Technical Specifications

• Temperature: Medium Temperature
• Compressor: Copeland Scroll Compressor
• Base: Standard Base
• Amperage Rating: 21.2 A
• BTU Rating: 22860 Btu/hr
• Connection Size: 1/2 in Liquid, 7/8 in Suction
• Finish: Painted
• Frequency Rating: 60 Hz
• HP Rating: 2 hp
• Material: Steel
• Phase: 1 ph
• Refrigerant Type: R-404A
• Sound Level: 63 dBA
• Temperature Rating: 95 deg F
• Voltage Rating: 208 to 230 V
• Cooling Capacity: 22860 BTU/Hour
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
• Type: Medium Temperature, Horizontal Air Discharge, Heavy Duty, Auto-Reset, Scroll Compressor
• Number of Phases: 1
• Approval: UL (Canada and US)
