Bohn BCH0022LCBCZA0000 Air-Cooled Condensing Unit 208-230/3/60

Product Description

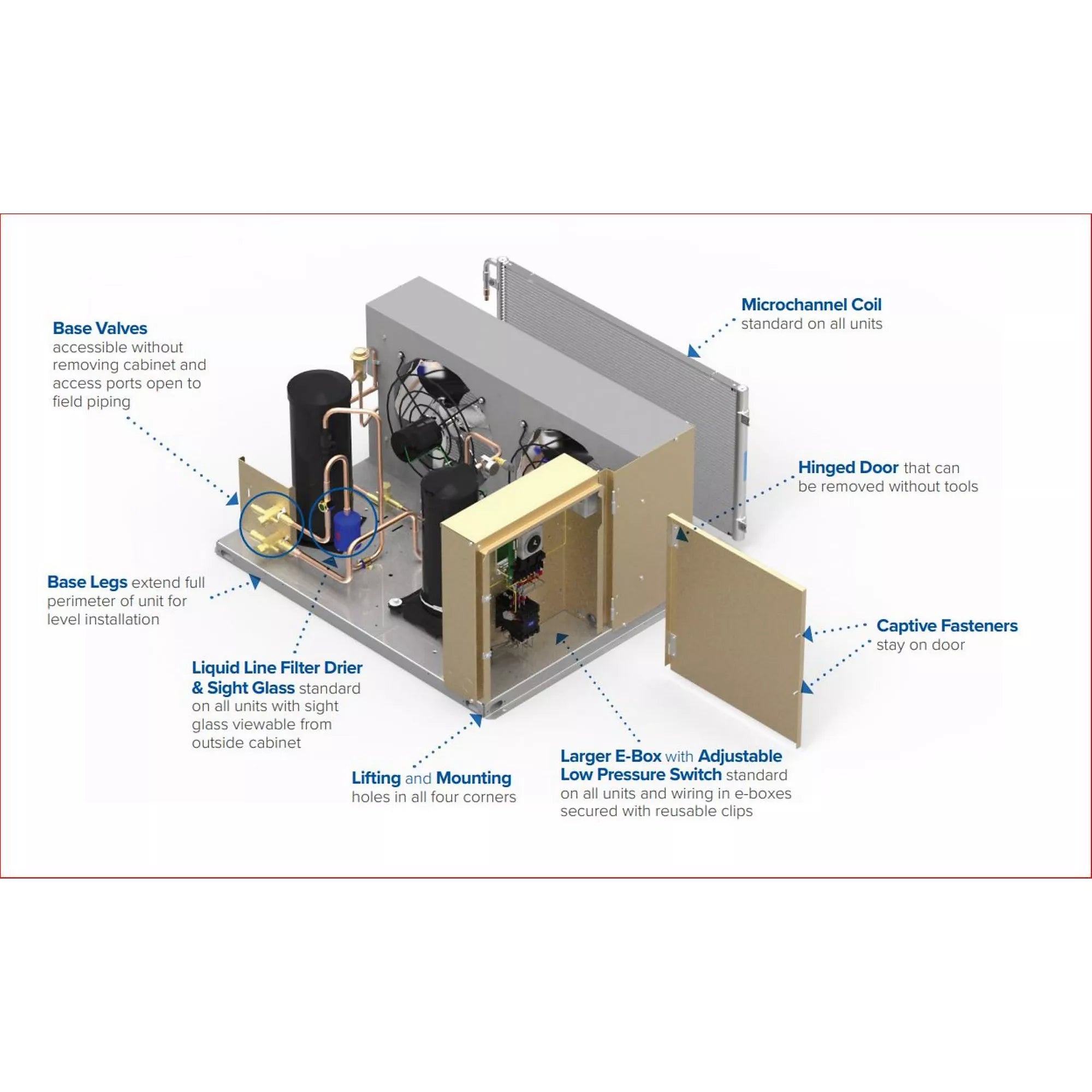

The BOHN BCH0022LCBCZA0000 is an air-cooled condensing unit designed for horizontal air discharge. It utilizes a scroll compressor and is suitable for low-temperature applications such as freezers. The unit features externally mounted piping connections and removable cabinets for service access. It is designed for energy efficiency and approved for use with R-404A refrigerant.

• Designed for use in low-temperature applications.
• Features a scroll compressor.
• Piping connections are externally mounted for accessibility.

Product Highlights

Air-cooled condensing unit with scroll compressor for freezers and low-temperature applications. Features external piping and is energy efficient.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0022LCBCZA0000
• Country of Origin: USA

Technical Specifications

• Brand: Bohn
• MPN: BCH0022LCBCZA0000
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: freezer
• Operating Range: Low Temperature
• Compressor Type: Scroll
• Compressor Model Number: ZF07KAE-TF5
• Voltage: 208-230/3/60
• Cabinet: C1
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95° F Ambient -20° F SST
• Ambient Temperature F: 95° F
• Suction Temperature F: -20° F
• Capacity BTUH: 7,550
• Meets Minimum Awef: TRUE
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A; R-507A

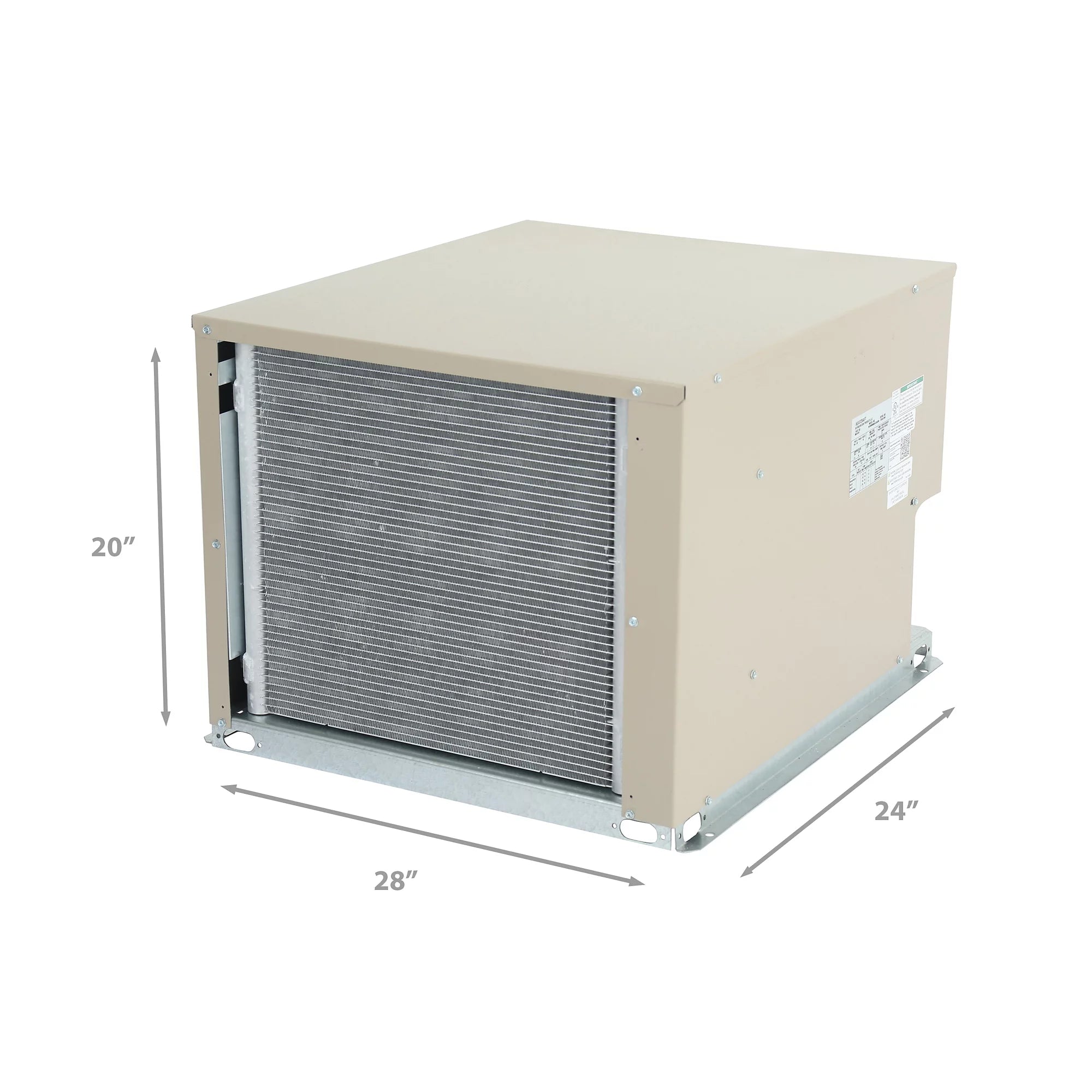

• Height (In.): 19.75
• Depth In: 28.25
• Width (In.): 24.625
• Approx Net Weight (lbs): 173
• Receiver 90 Pc Full Standard Lbs: 9
• Sound Data Dba: 63
• Compressor RLA: 7.756410256
• Compressor LRA: 58
• Fan Motor Qty: 1
• Fan Motor Fla: 0.5
• MCA: 20
• MOPD: 20
• Liquid Od: 0.375
• Suction Od: 0.625
• Condenser Motor HP: 2 HP
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cycle/Hertz: 50/60 Hz
• Energy Star Rated: No
• Phase: Three
• Prop 65: Yes
• Type: Air Cooled
• Minimum Circuit Ampacity (MCA): 15
• Country of Origin: USA
• Condenser Type: Air-Cooled
• Liquid Line Size (OD): 3/8"
• Suction Line Size (OD): 5/8"
