Bohn BCH0015MCACZA0000 1.5 hp Condensing Unit, Scroll Compressor 208-230/3/60 Medium Temp

Product Description

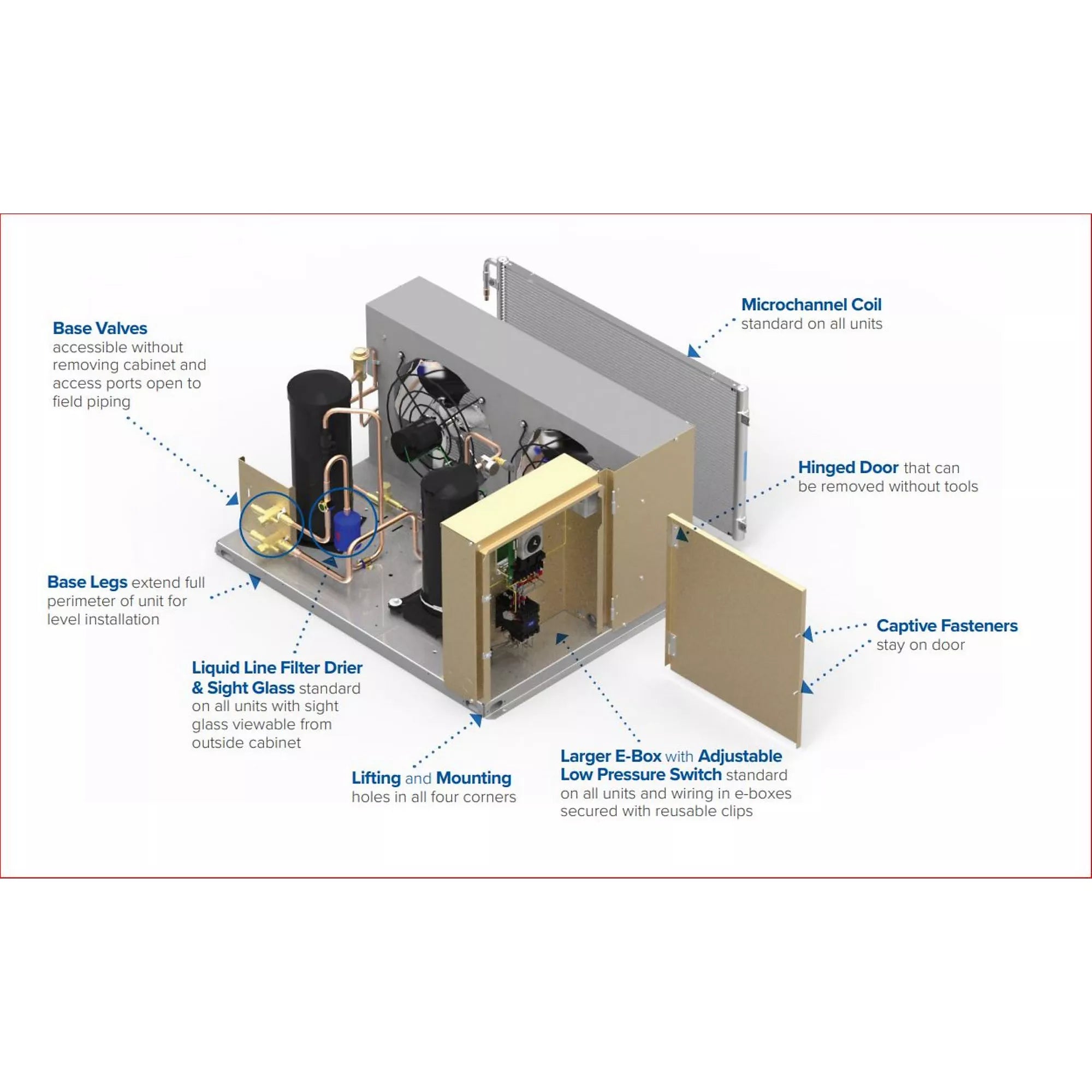

The BOHN BCH0015MCACZA0000 is a 1.5 HP air-cooled condensing unit, featuring a scroll compressor for medium temperature applications. Operating on three-phase 208-230 VAC, 60 Hz power, this UL Listed unit is designed for outdoor installation. It supports multiple refrigerants including R-404A, R-448A, and R-449A, with a 1/2" liquid line and 7/8" suction line. The unit has a minimum circuit ampacity of 15 amps and a capacity of 17540 Btu/hr.

• 1.5 HP condensing unit with a scroll compressor for efficient medium temperature cooling.
• Air-cooled design suitable for outdoor installations, operating on 208-230 VAC, three-phase power.
• UL Listed and compatible with various refrigerants including R-404A, R-448A, and R-449A.

Product Highlights

This 1.5 HP BOHN condensing unit features a scroll compressor, air-cooled design for outdoor medium temperature use, and is UL Listed.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0015MCACZA0000
• Country of Origin: USA

Technical Specifications

• Amps: 9-23
• Application Temperature: Medium Temperature
• Brand: Bohn
• Compressor Horsepower: 1 1/2 HP
• Condenser Location: Outdoor
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Condenser Type: Air-Cooled
• Cubic Measurement: 12.6327
• Frequency: 60 Hz
• Energy Star Rated: No
• Liquid Line Size: 1/2"
• Phase: Three
• Prop 65: Yes
• Rated Load Amps (RLA): 8.7
• Refrigerant: R-404A; R-407A; R-407C; R-448A; R-449A
• Suction Line Size: 7/8"
• UL Listed: Yes
• UL Recognized: No
• Voltage: 208-230 VAC
• Minimum Circuit Ampacity (MCA): 15
• Compressor Type: Scroll
• Country of Origin: USA
• Capacity: 17540 Btu/hr
• Function: Cooler
• Product Type: Condensing Unit
• Compressor Model: Copeland Scroll
• Base Type: Standard Base
• Finish: Painted
• Material: Steel
• Sound Level: 63 dBA
• Operating Temperature: 95 deg F
