Product Description

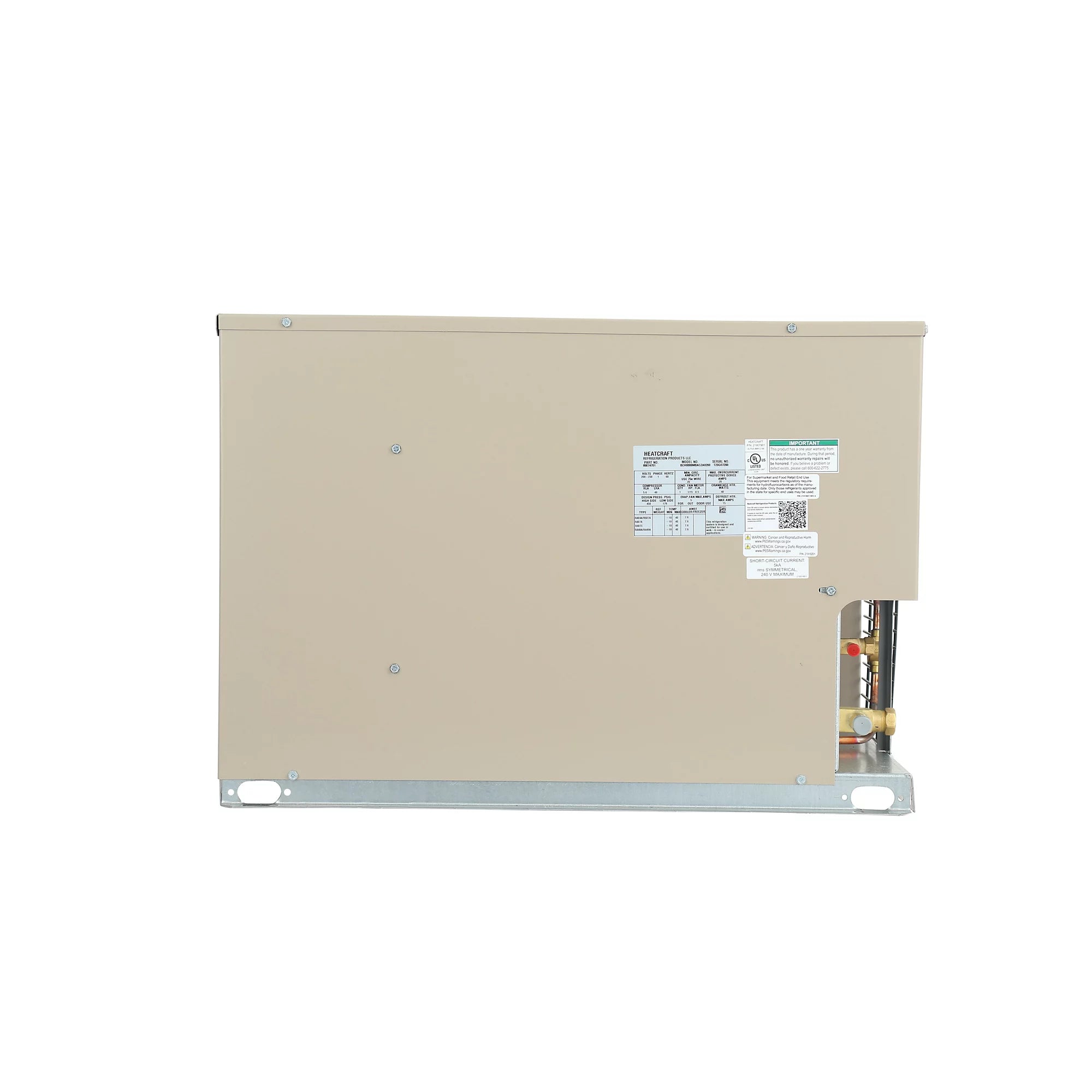

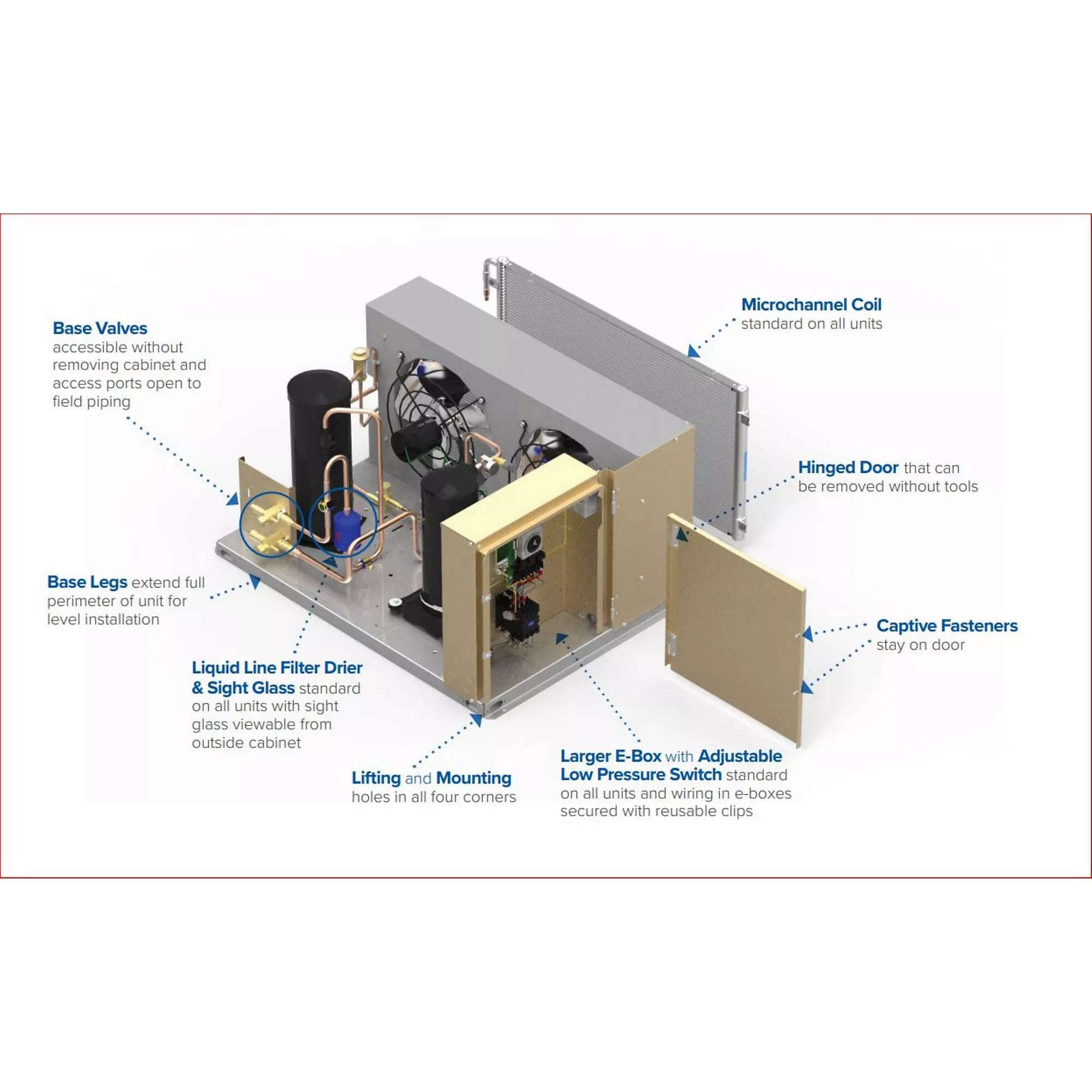

The BOHN BCH0008MCACZA0000 is an air-cooled condensing unit designed for medium temperature applications. It features a Copeland Scroll compressor and a microchannel coil. Designed with external piping connections and removable cabinets for service access, it is suitable for use with multiple refrigerants. The unit includes a receiver with a fusible plug, liquid shutoff valve, and charging port.
- Scroll compressor type
- Designed for medium temperature applications
- Microchannel coil technology
Product Highlights
Air-cooled condensing unit with Copeland Scroll compressor and microchannel coil, designed for medium temperature applications and multiple refrigerants.
Product Information
Standard Information
-
Brand: BOHN
-
Manufacturer Part Number: BCH0008MCACZA0000
-
Country of Origin: USA
Technical Specifications
-
Brand: Bohn
-
MPN: BCH0008MCACZA0000
-
Product Type: Air-Cooled Condensing Units
-
Product Category: Condensing Units and Packaged Systems
-
Product Style: 0.5 - 6 HP Horizontal Air Discharge
-
Product Classification: current
-
Application: Medium Temp
-
Operating Range: Medium Temperature
-
Compressor Type: Scroll
-
Compressor Model Number: ZB07KAE-TF5
-
Voltage: 208-230/3/60
-
Cabinet: C1
-
Condenser Coil Type: Microchannel Coil
-
Rating Point: 95° F Ambient 25° F SST
-
Ambient Temperature F: 95° F
-
Suction Temperature F: 25° F
-
Capacity BTUH: 8,980
-
Meets Minimum Awef: TRUE
-
Refrigerant: R-404A, R507A, R448A, R449A, R407A, R407C
-
Height (In.): 19.75
-
Depth In: 28.25
-
Width (In.): 24.625
-
Approx Net Weight (lbs): 168
-
Receiver Capacity 90 % Full (Lbs.): 9
-
Sound Data Dba: 61
-
Compressor RLA: 4.679487179
-
Compressor LRA: 37.8
-
Fan Motor Qty: 1
-
Fan Motor Fla: 0.5
-
MCA: 15
-
MOPD: 15
-
Liquid Od: 0.375
-
Suction Od: 0.625
-
Connection Liquid (In.): 3/8
-
Connection Suction (In.): 5/8
-
Horsepower: 3/4
-
Receiver Included: Yes
-
Application Temperature: Medium Temperature
-
Compressor HP: 3/4 HP
-
Condenser Location: Outdoor
-
Condenser Motor Type: PSC (Permanent Split Capacitor)
-
Cycle/Hertz: 60 Hz
-
Energy Star Rated: No
-
Full Load Amps: 0.5
-
Phase: Three
-
Prop 65: Yes
-
Rated Load Amps (RLA): 4.7
-
UL Listed: Yes
-
UL Recognized: No
-
UOM: EA
-
Voltage Rating: 208 to 230 V
-
Minimum Circuit Ampacity (MCA): 15
-
Compressor: Scroll
-
BTU Rating: 8980 Btu/hr
-
Connection Size: 3/8 in Liquid, 5/8 in Suction
-
Dimensions: 19-3/4 in H x 24-5/8 in W x 28-1/4 in D
-
Finish: Painted
-
Frequency Rating: 60 Hz
-
Material: Steel
-
Refrigerant Type: R-404A
-
Sound Level: 61 dBA
-
Temperature Rating: 95 deg F
-
Additional Information: Medium Temperature, Copeland Scroll Compressor, Standard Base
