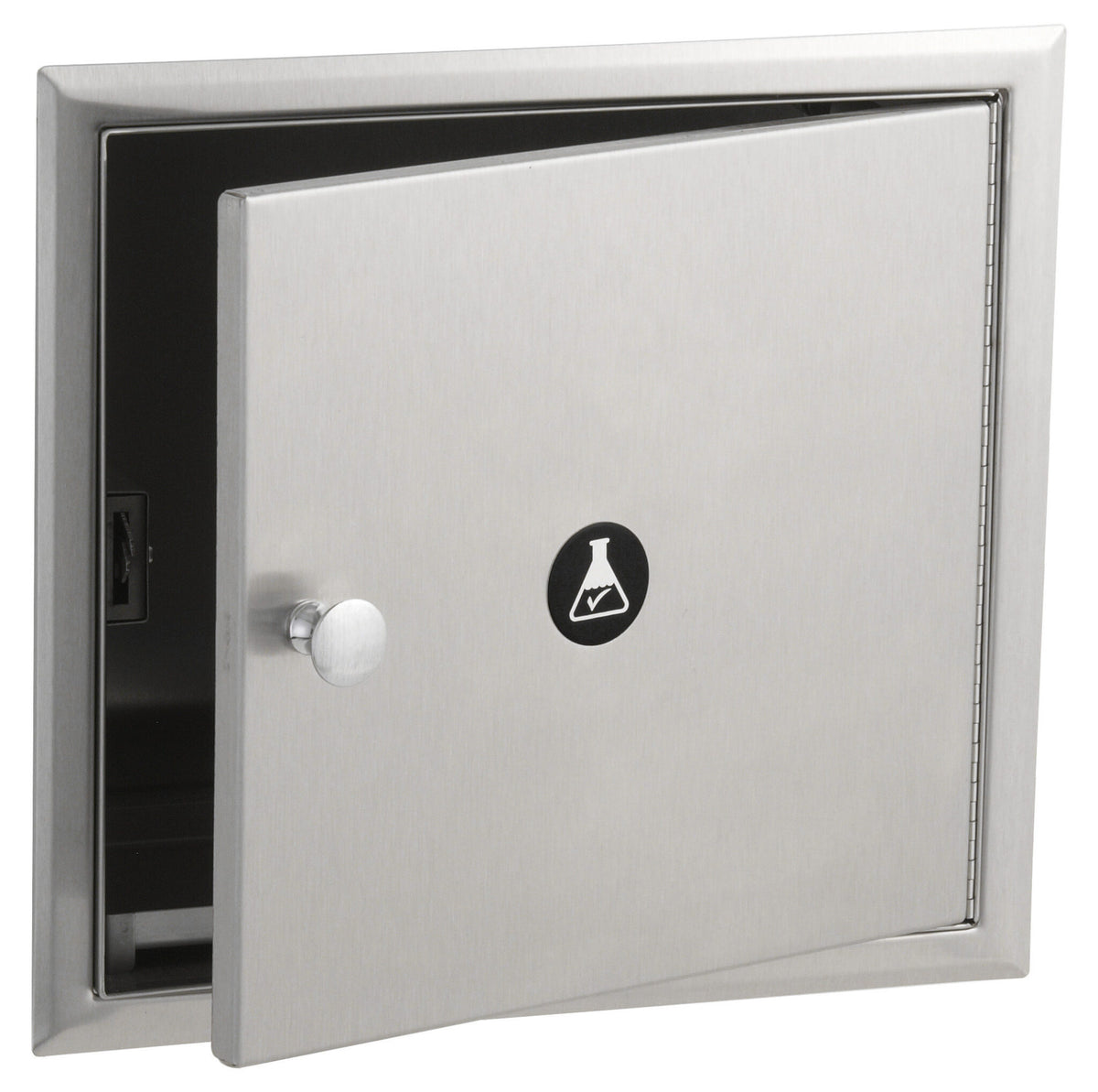

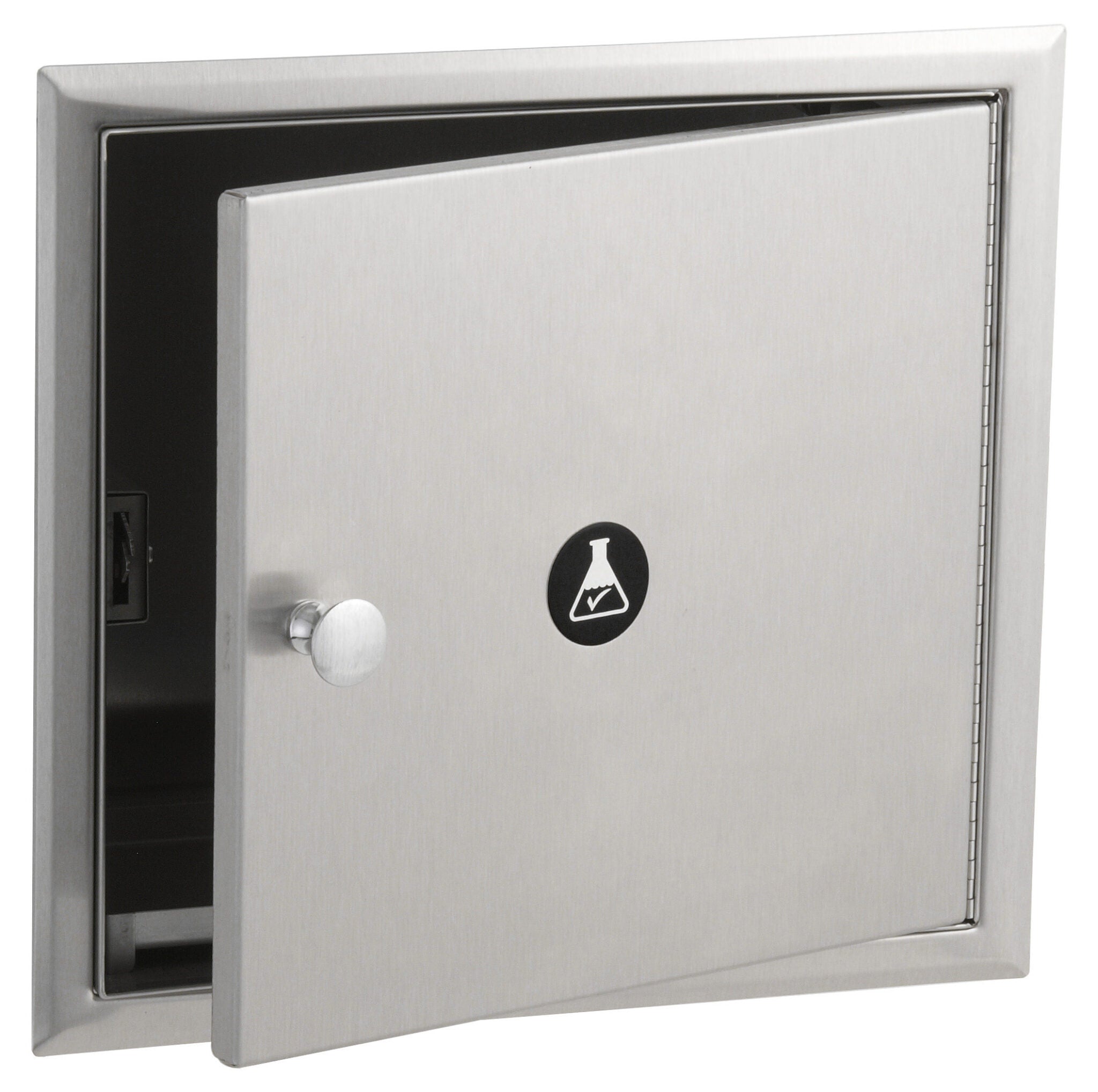

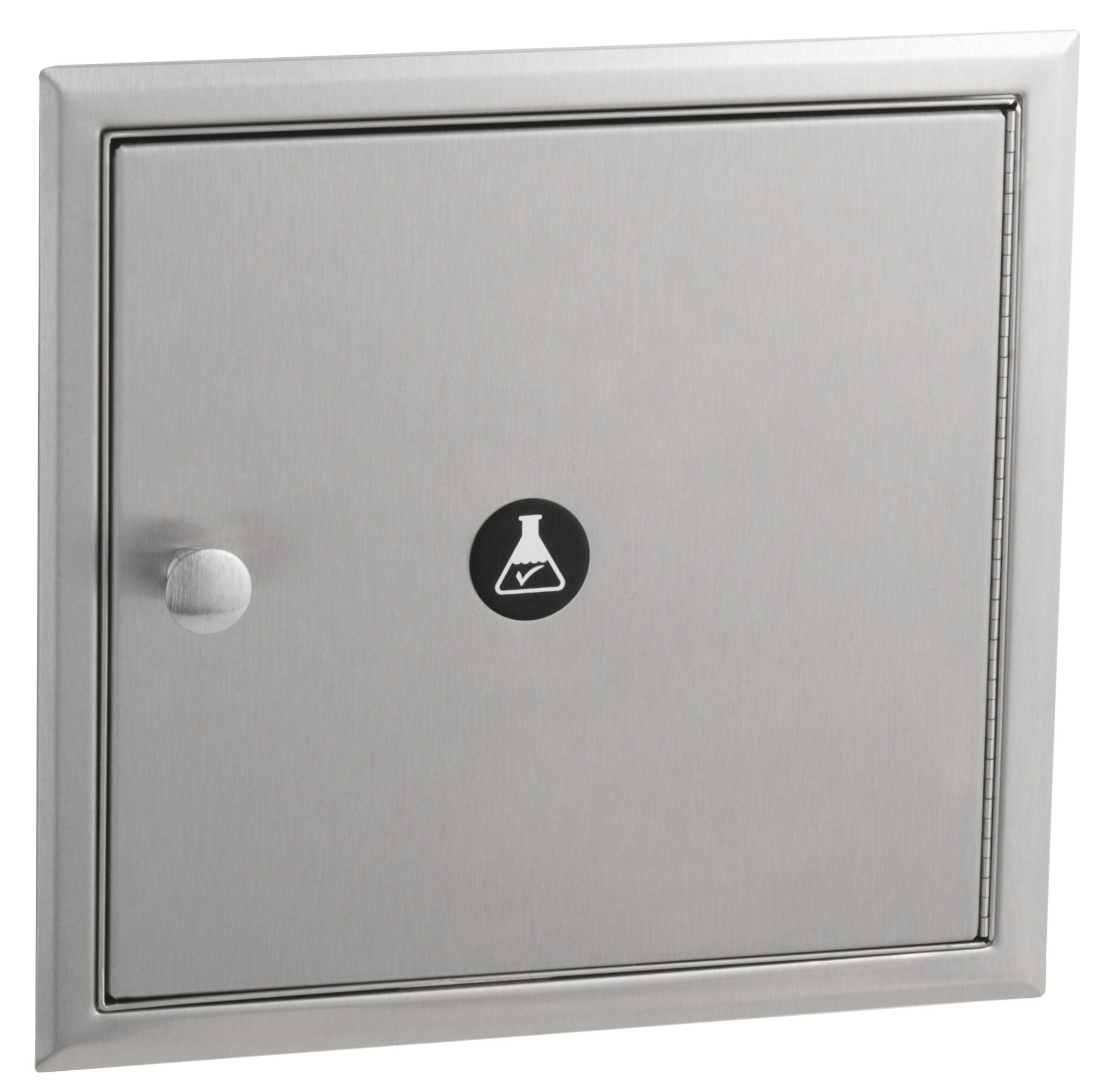

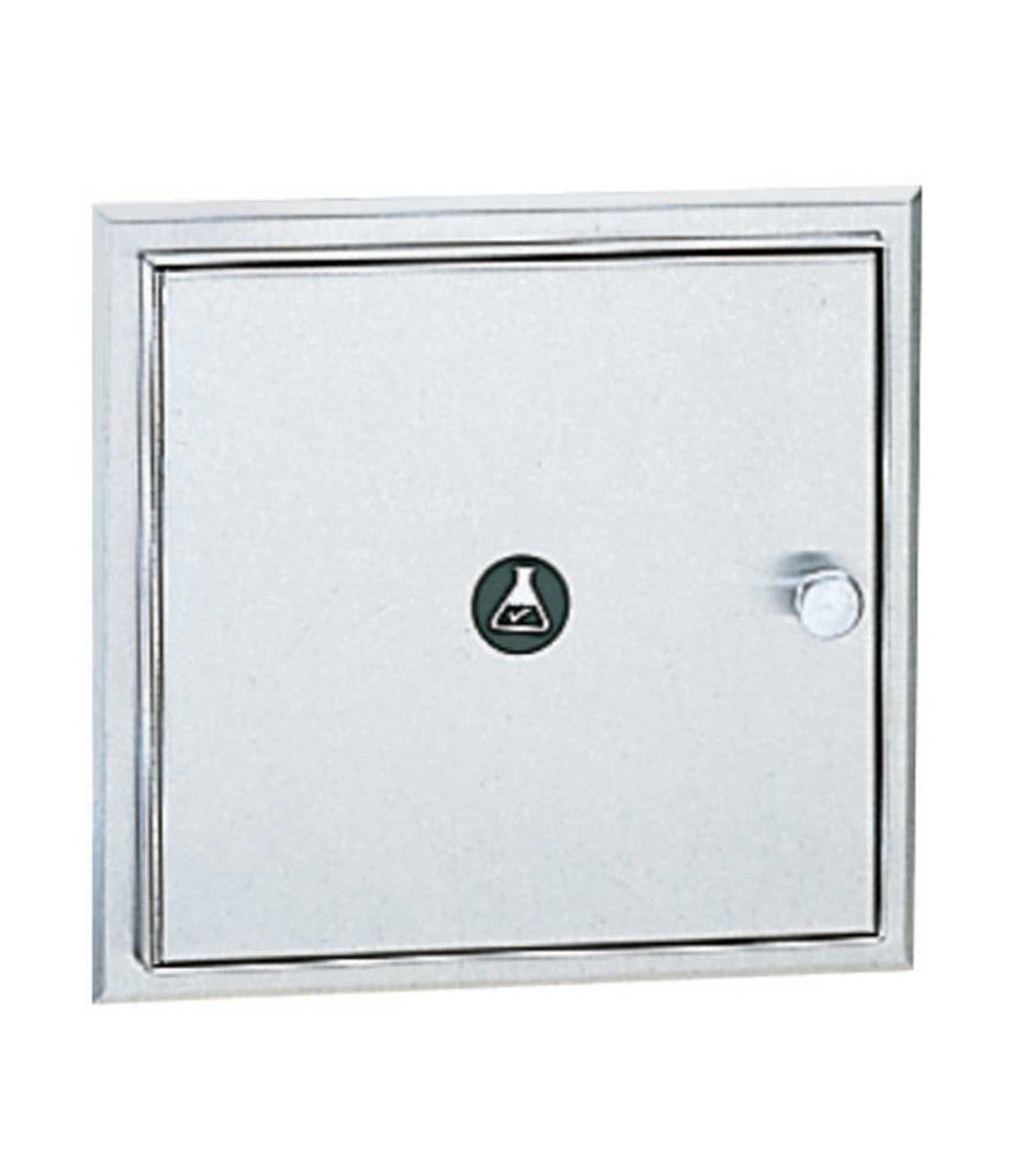

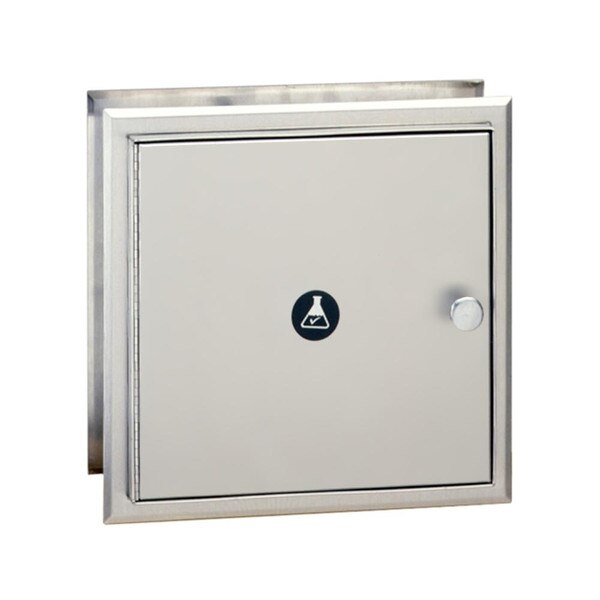

Bobrick 505 Specimen Pass-Through Cabinet

Product Description

The Bobrick 505 is a recessed cabinet made for passing specimens between patient areas and laboratories. This cabinet is made from type 304 stainless steel and features a satin finish. It is designed to mount within walls that are three to five and three-quarter inches thick. The cabinet includes self-closing doors and an interlocking mechanism that ensures only one door can open at a time, maintaining a sight barrier. It comes with a removable stainless steel tray for easy cleaning and specimen handling.

• Facilitates specimen passage between patient area and laboratory.
• Features an interlocking mechanism preventing both doors from opening simultaneously.
• Includes a removable stainless steel tray.

Product Highlights

This cabinet is essential for maintaining efficiency in labs and healthcare facilities.

Product Information

Standard Information

• Brand: Bobrick
• MPN: 505

Technical Specifications

• Mounting Type: Recessed
• Material: 304 Stainless Steel
• Finish: Satin-Finish Stainless Steel
• Door Material: 304 stainless steel
• Door Type: Self-Closing
• Height: twelve and one-sixteenth inches
• Width: twelve and three-quarter inches
• Depth: six inches
• Mounting Location: In walls three to five and three-quarter (75-145mm) thick
• Rough Wall Opening Width: eleven and one-half inches
• Rough Wall Opening Height: ten and seven-eighths inches
• Door Height: ten and nine-sixteenths inches
• Door Width: eleven and one-quarter inches
• Gauge: 22/24 Gauge
• Hardware Finish: Satin Stainless Steel
• Accessibility: ADA Compliant
• Country of Origin: China
