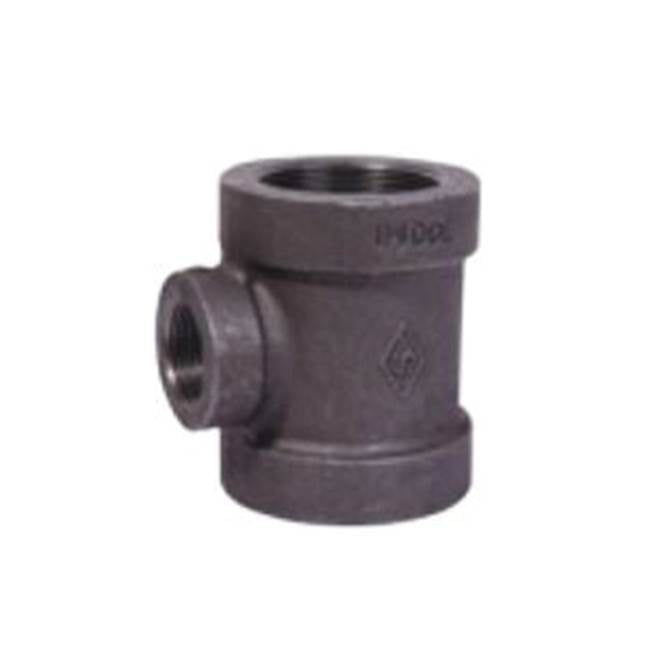

Bmi Usa 20498 Black Malleable Iron Pipe Tee 2x2x1/2 Xh

Product Description

The BMI USA 20498 is an extra heavy black malleable iron pipe tee designed for threaded pipe assemblies in demanding plumbing, gas, and industrial piping systems. With a run size of 2 inches and a branch outlet of 1/2 inch, this reducing tee allows a branch connection off a main pipe run without sacrificing structural integrity. The extra heavy (XH) wall rating makes it suited for higher-pressure applications where standard-weight fittings are not appropriate. Weighing 3.17 pounds, the casting reflects the added material of the XH designation. Licensed plumbers and pipefitters handle installation in commercial and industrial settings.

This tee is appropriate for threaded black iron pipe systems used in gas distribution, steam, compressed air, and industrial fluid piping. The 2 x 2 x 1/2 inch configuration is a common reducing tee size used when a small branch line needs to tap off a 2-inch main. The black finish is standard for gas piping applications and provides a mild protective coating over the malleable iron base material.

Key Features

• Extra heavy (XH) wall rating for higher-pressure service requirements
• Malleable iron construction provides strength and impact resistance in threaded systems
• Black finish suitable for gas and steam piping installations
• 2 x 2 x 1/2 inch reducing configuration for branch-line taps off a 2-inch main run
• Threaded end connections compatible with standard NPT pipe threads

Compatibility

Designed as an OEM-style replacement or new-installation fitting for extra heavy black malleable iron threaded pipe systems. Consult applicable codes to confirm wall-thickness requirements for your specific service application.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with threaded iron pipe systems and applicable codes such as the IPC or IFGC. Shut off and depressurize the pipe system completely before disassembling any fittings. Apply appropriate thread sealant or PTFE tape to all NPT threads before assembly. Do not over-torque threaded connections, as malleable iron fittings can crack under excessive force.

Technical Specifications

• Material: Extra Heavy Malleable Iron
• Finish: Black
• Run Size: 2 inches
• Branch Size: 1/2 inch
• Weight Class: Extra Heavy (XH)
• Weight: 3.17 pounds
• UPC: 777701204982

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 20498
