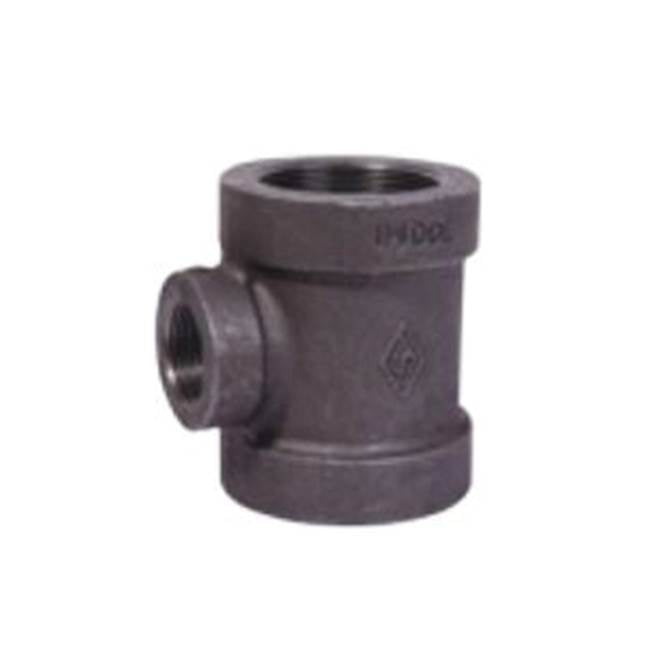

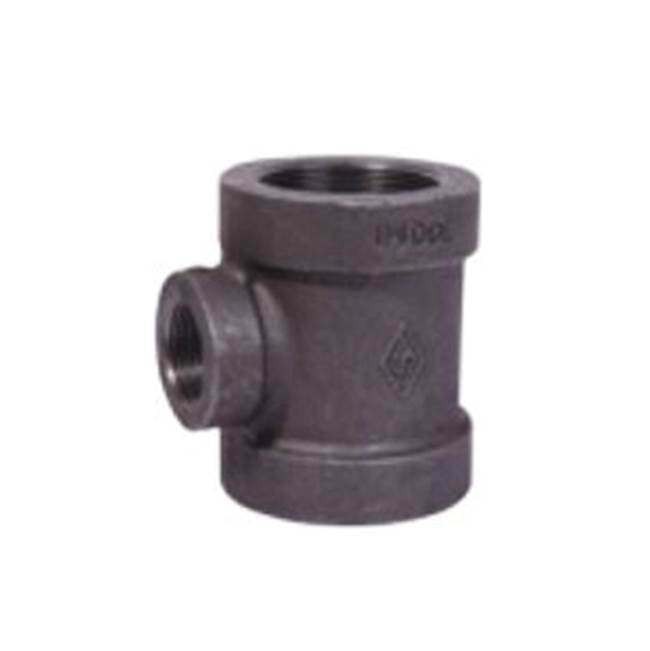

Bmi Usa 20473 Black Malleable Iron Pipe Tee 1.5x1.5x0.75 in

Product Description

The BMI USA 20473 is an extra heavy (XH) 300-class black malleable iron pipe tee rated for demanding piping systems where standard fittings are not adequate. The fitting connects three sections of pipe in a branch configuration, with a 1.5 x 1.5 x 0.75 inch run-by-branch layout. The black finish is applied over the malleable iron body, making it appropriate for gas distribution, steam, compressed air, and industrial fluid piping. Licensed plumbers, pipefitters, and HVAC mechanics typically install this class of fitting in commercial and industrial environments where higher pressure ratings and heavier wall construction are specified by code or engineering requirements.

This extra heavy tee is suited for commercial and light industrial piping installations where a 300-class malleable iron fitting is required. The 1.5 x 1.5 x 0.75 inch configuration handles a full-size run with a reduced branch outlet, commonly used in gas mains, steam distribution headers, compressed air distribution lines, and similar piping systems. It is not intended for PVC, CPVC, or plastic piping systems.

Key Features

• Extra heavy (XH) 300-class malleable iron construction for higher-pressure piping applications
• Black finish suitable for gas, steam, and compressed air systems
• 1.5 x 1.5 x 0.75 inch tee configuration with full-size run and reduced branch
• Malleable iron body provides durability and resistance to mechanical stress in threaded assemblies
• Weighs 2.38 pounds, consistent with XH-class fitting mass

Compatibility

Designed as an OEM-style replacement or new-installation fitting for threaded malleable iron piping systems requiring a 300-class extra heavy tee in a 1.5 x 1.5 x 0.75 inch size.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical and plumbing codes, including IFGC and ASME B31 standards where referenced. Shut off and depressurize the piping system completely before removing or installing any threaded fitting. Apply an approved thread sealant or PTFE tape to all male threads before assembly, and tighten to a firm, leak-free engagement without overtorquing the malleable iron threads. Pressure-test the completed assembly according to the authority having jurisdiction before returning the system to service.

Technical Specifications

• Material: Extra Heavy Malleable Iron
• Finish: Black
• Class: 300 XH (Extra Heavy)
• Connection Size: 1.5 x 1.5 x 0.75 inches
• Weight: 2.38 pounds
• UPC: 777701204739

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 20473
