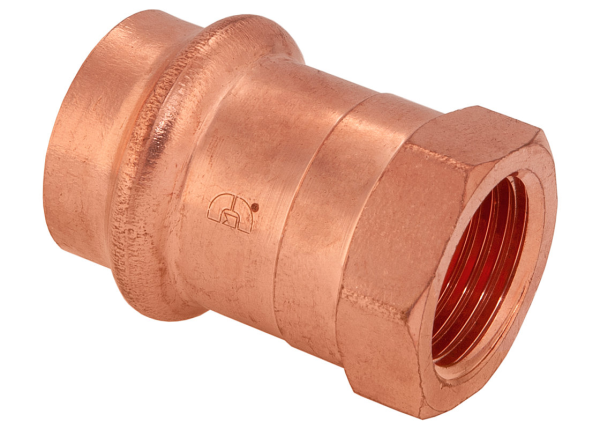

Bmi 47709 2 inch Wrot Copper Press-Fit P x FIP Reducing Adapter Fitting

Product Description

The BMI 47709 is a 2-inch Wrot Copper Press-Fit P x FIP Reducing Adapter Fitting designed for various plumbing and HVAC applications. This lead-free fitting features a 360-degree Leak Detection Design for easy identification of unpressed connections during pressure testing. It is compatible with all major brands of pressing tools and suitable for potable water, hydronic heating, chilled water, compressed air (200 psi max), non-medical gases (140 psi max), and low-pressure steam (15 psi max) systems. It operates within a working temperature range of 0 to 250 F.

• 360 Degree Leak Detection Design for identifying unpressed connections
• Lead-Free construction, compliant with NSF/ANSI STANDARD 61 - 372

Product Highlights

Durable wrot copper press-fit adapter with leak detection, suitable for diverse fluid and gas systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47709

Technical Specifications

• Working Pressure: 200 psi Max
• Max Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
• Category: Copper Tube Fittings
• Collection: Press-Fit
• Connection Type: Press x FPT
• Size: 2 inch
• Alternate Part Number: 4104236
